Powertrain Control Module (PCM) C2

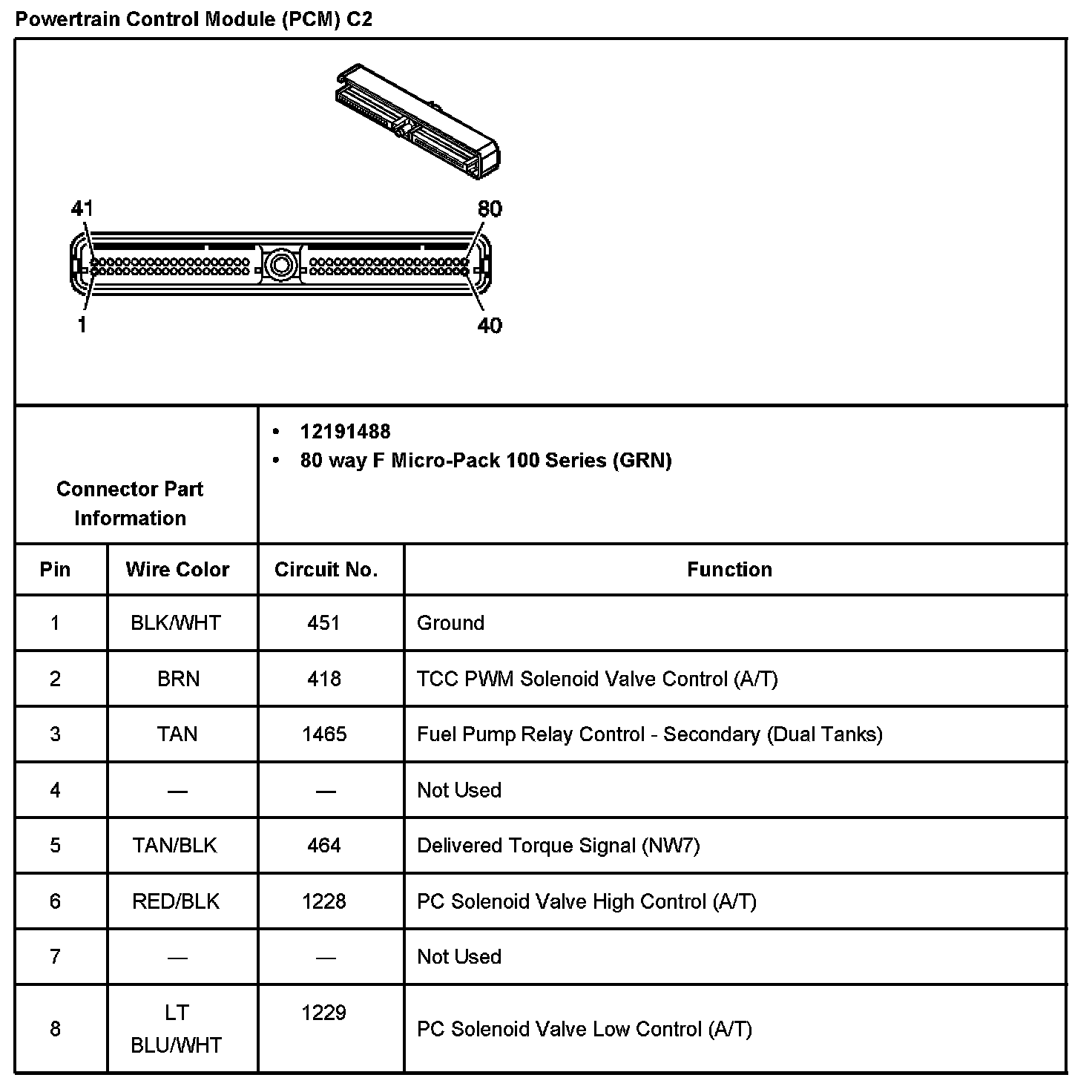

Powertrain Control Module (PCM) C2 Part 1:

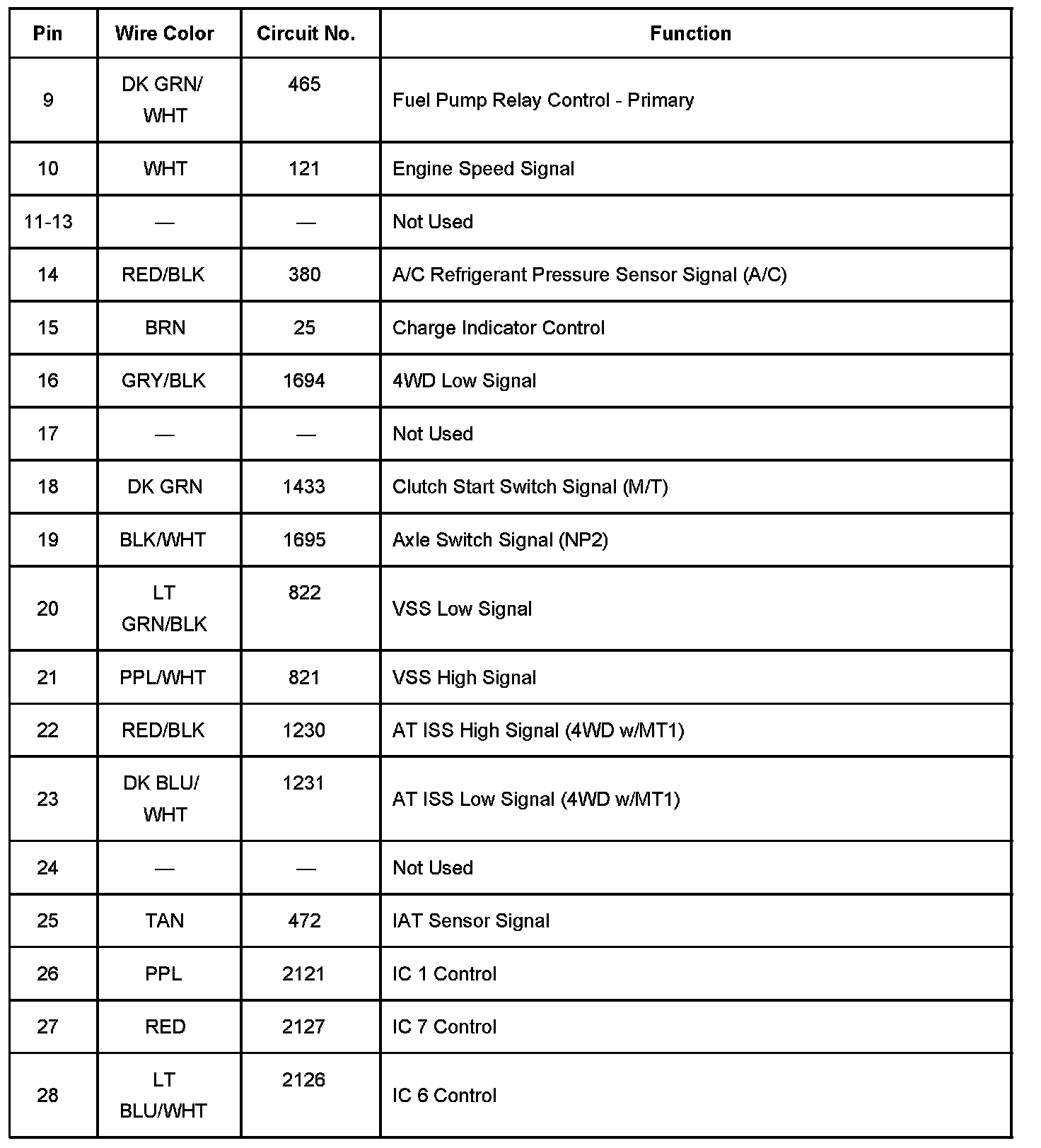

Powertrain Control Module (PCM) C2 Part 2:

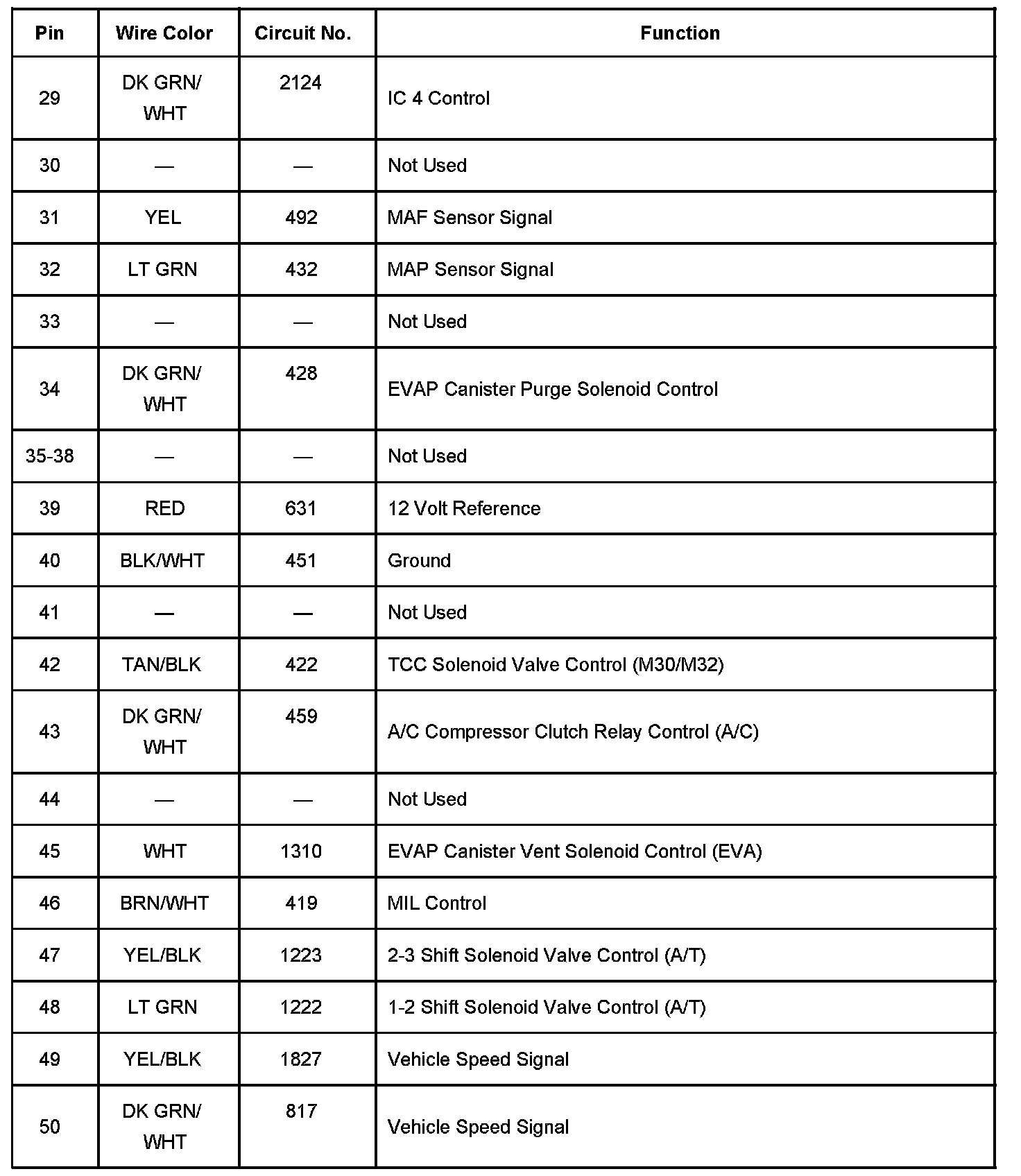

Powertrain Control Module (PCM) C2 Part 3:

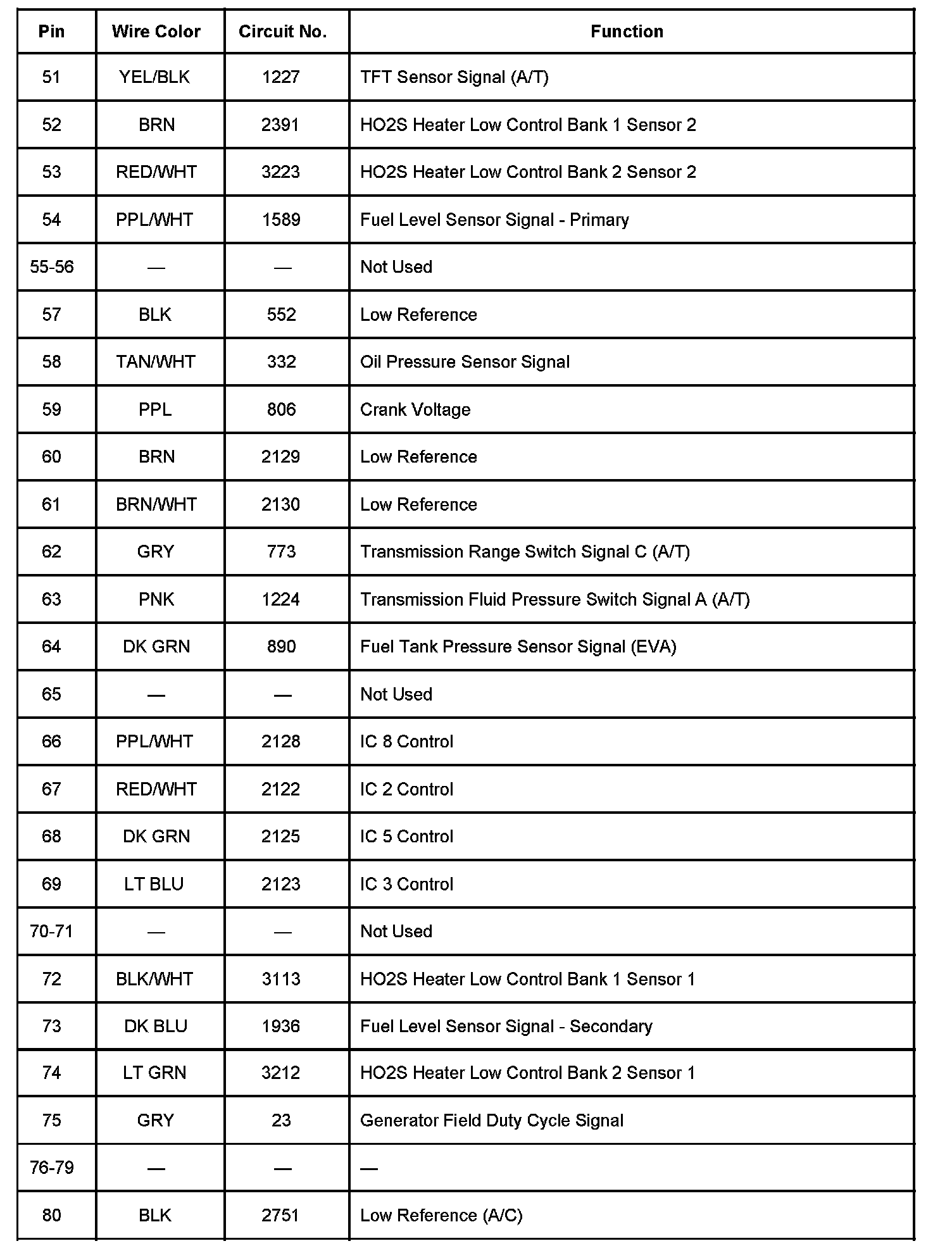

Powertrain Control Module (PCM) C2 Part 4:





Powertrain Control Module (PCM) C2
