Transfer Case Control Module Replacement

Transfer Case Shift Control Module Replacement

Removal Procedure

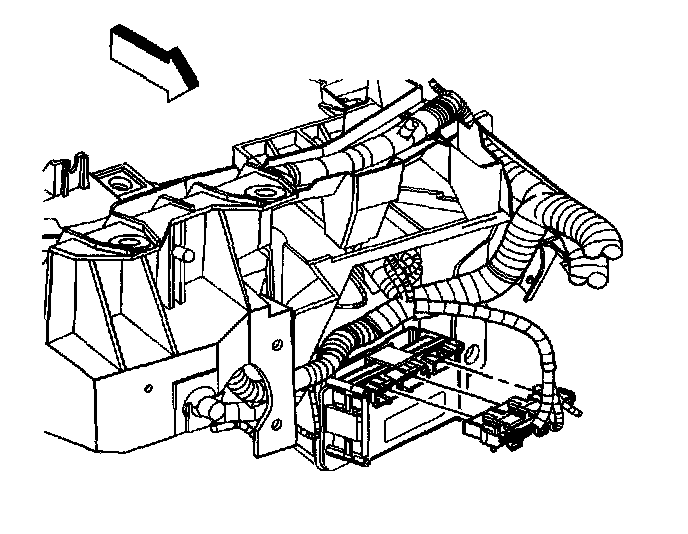

1. Disconnect the shift control module electrical connectors.





2. Unsnap and remove the shift control module from the bracket.

Installation Procedure

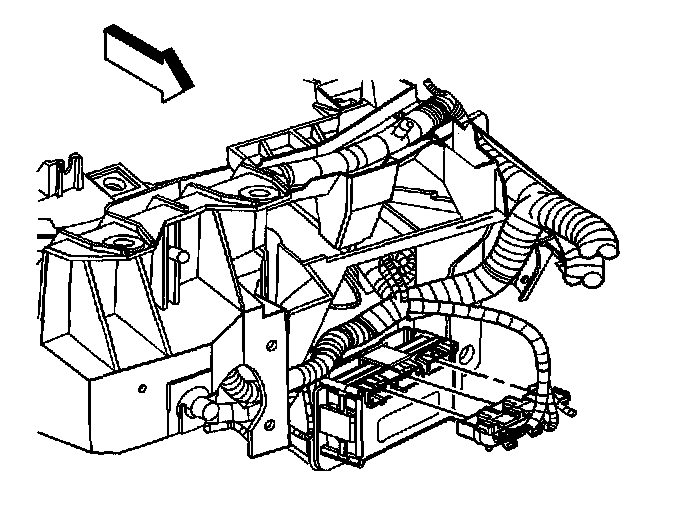

1. Install the shift control module to the bracket.





2. Connect the shift control module electrical connectors.
3. Start the engine and test the automatic transfer case system for proper shift operation.
