Wiper Washer System Sub-System

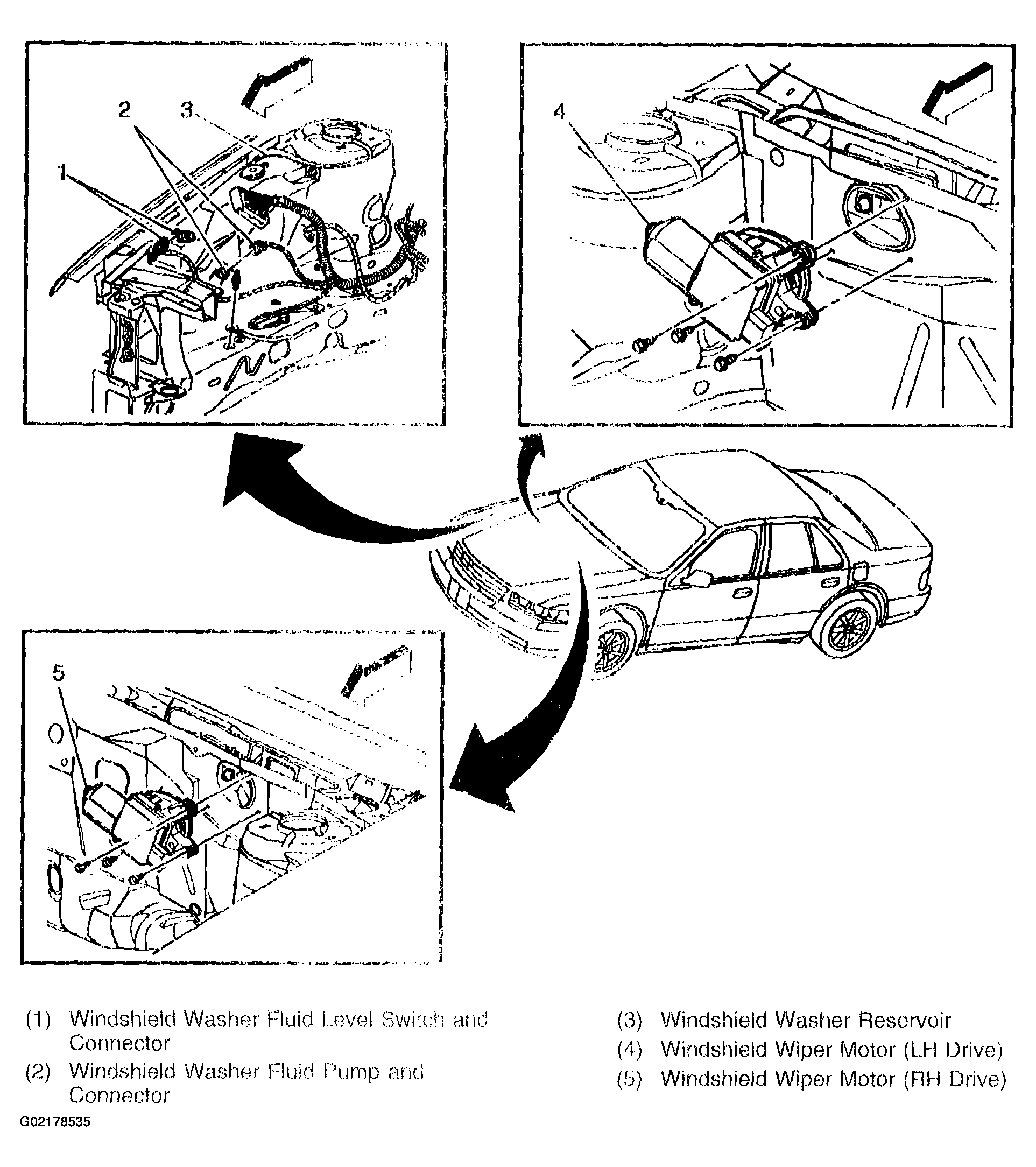

Fig 1: Wiper Washer System Sub-System Component View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
