Rear Object Sensor Control Module Connector End View

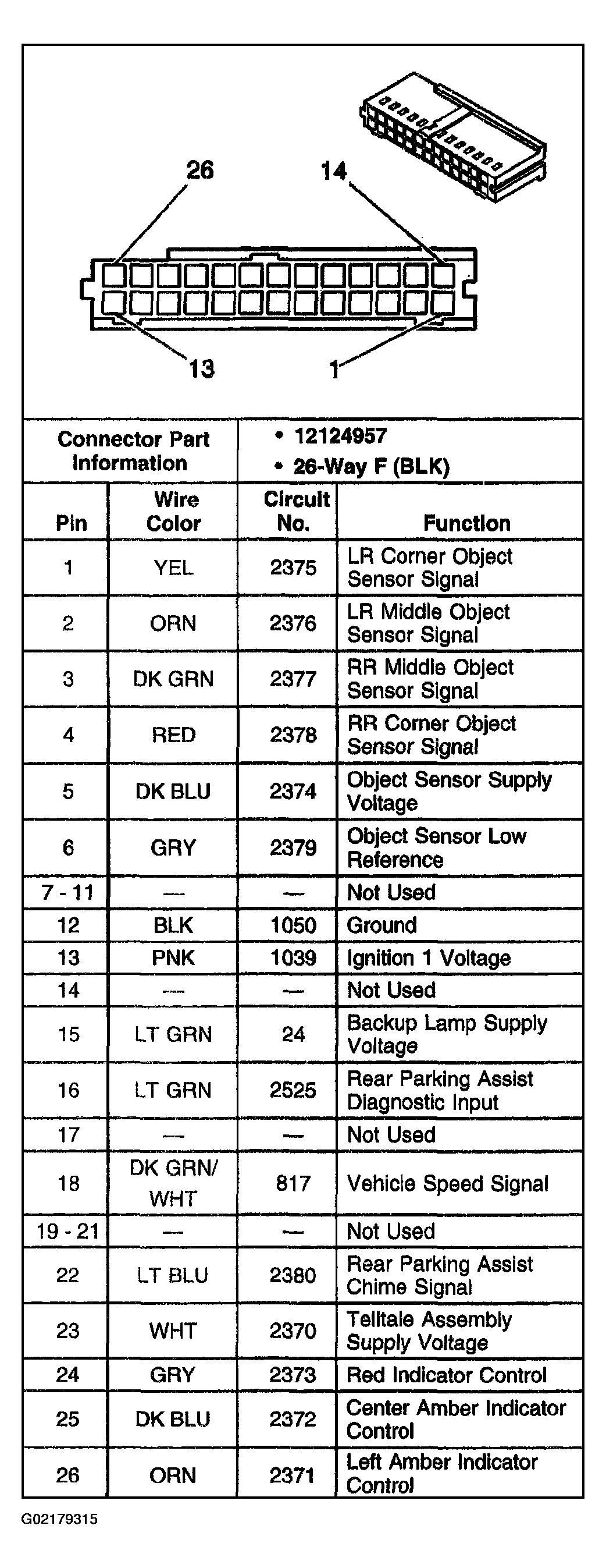

Fig 1: Rear Object Sensor Control Module
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
