Engine Block Front Thread Repair Specifications

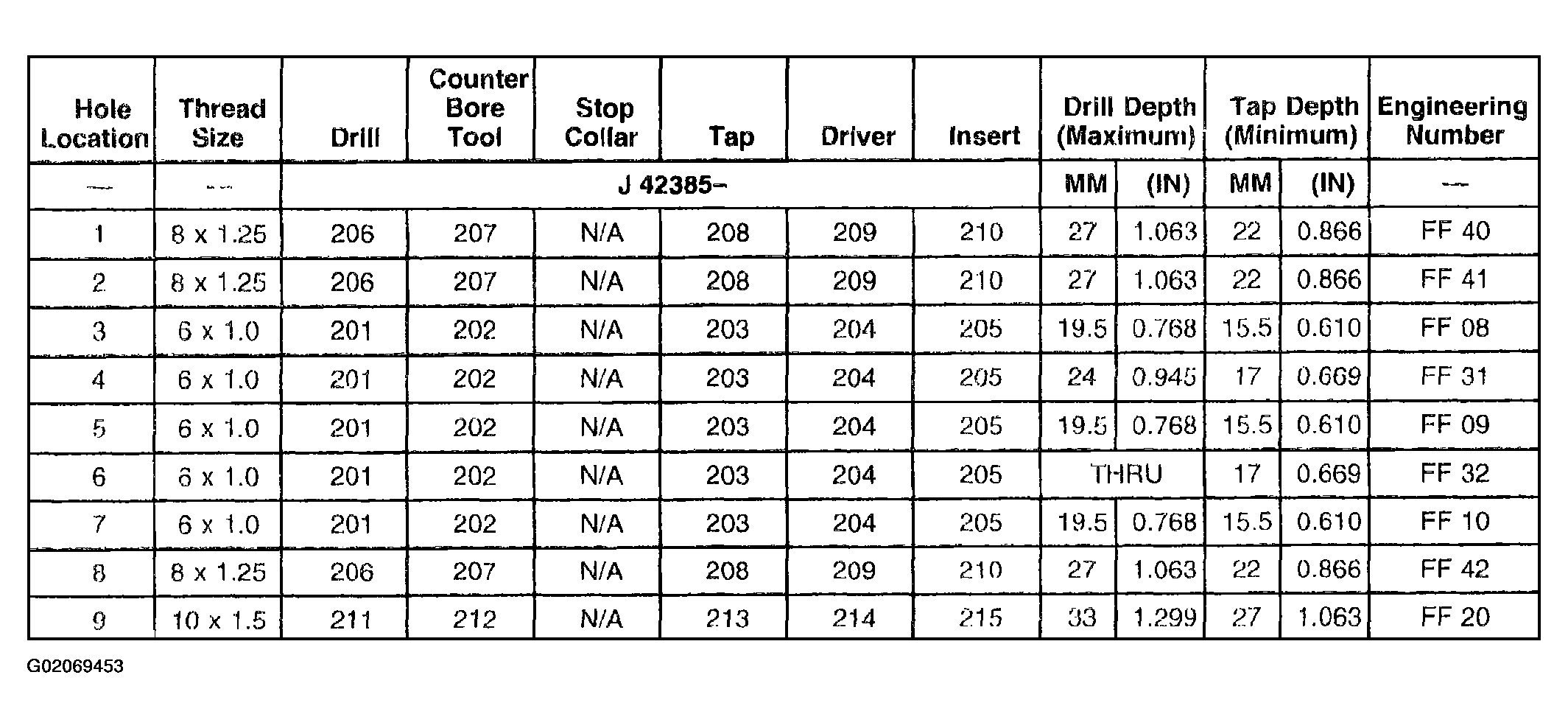

Fig 1: Engine Block Front Thread Repair Specifications (1 Of 2)
G02069453Courtesy of GENERAL MOTORS CORP.

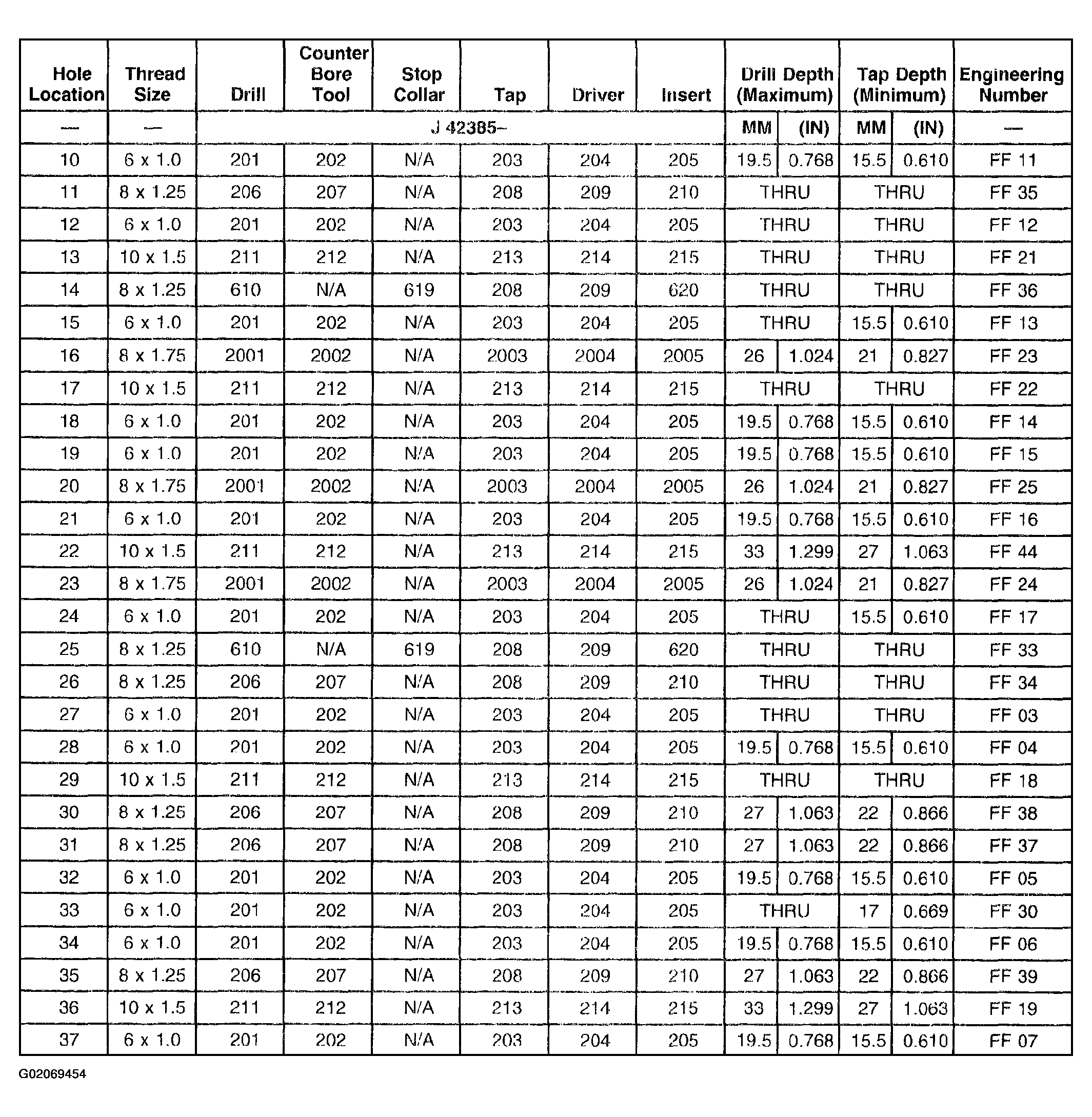

Fig 2: Engine Block Front Thread Repair Specifications (2 Of 2)
G02069454Courtesy of GENERAL MOTORS CORP.
