Removal (Seville)

  1. PCM is located on left side of engine compartment, inside air filter assembly. Record the Transaxle Fluid and Engine Oil Life Indexes. Turn OFF the ignition. Remove the rear seat cushion. Disconnect the negative battery cable. Remove the screw retaining the intake air duct/resonator to the PCM housing.

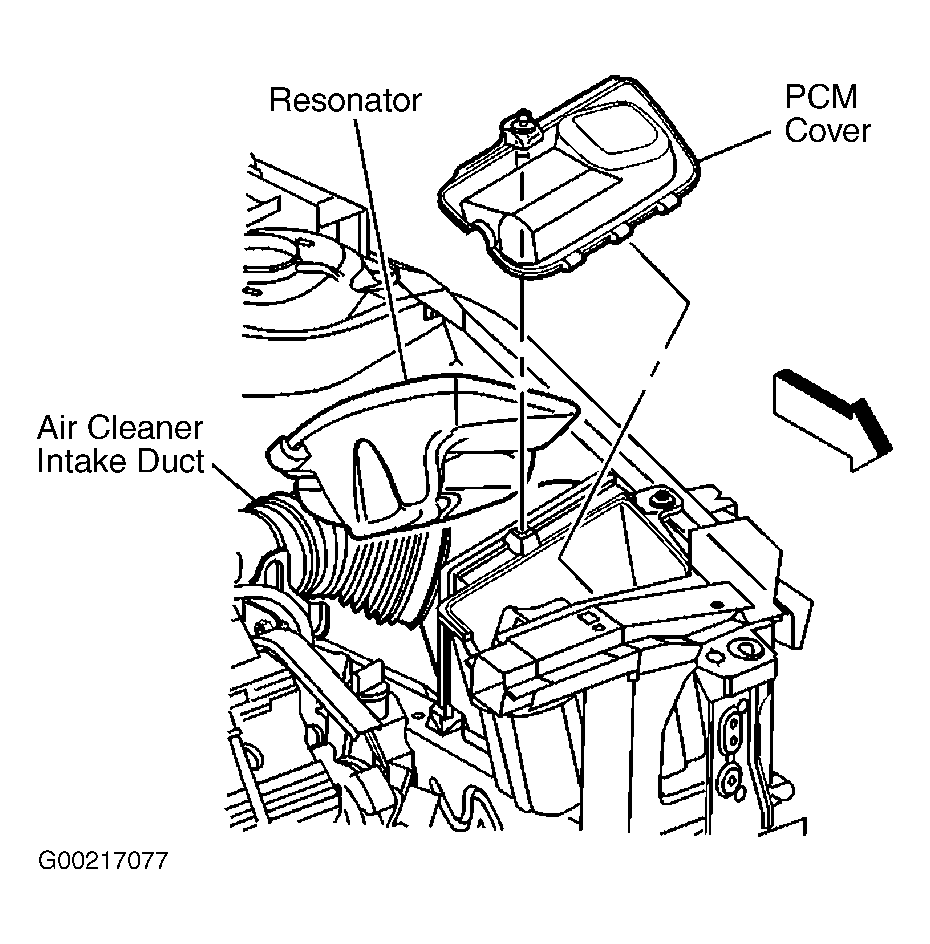

  2. Unsnap the air filter housing clamps on top of the air cleaner housing assembly. Pull the air cleaner intake duct/resonator assembly up enough to remove the air cleaner cover and the PCM. See Figure. Slide the air cleaner element assembly toward the fender to separate the air cleaner element assembly from the air inlet assembly. Loosen the PCM connector attaching bolts. Disconnect both PCM connectors. Remove the PCM.
