Air Temperature Sensor Connector End View - Lower Left

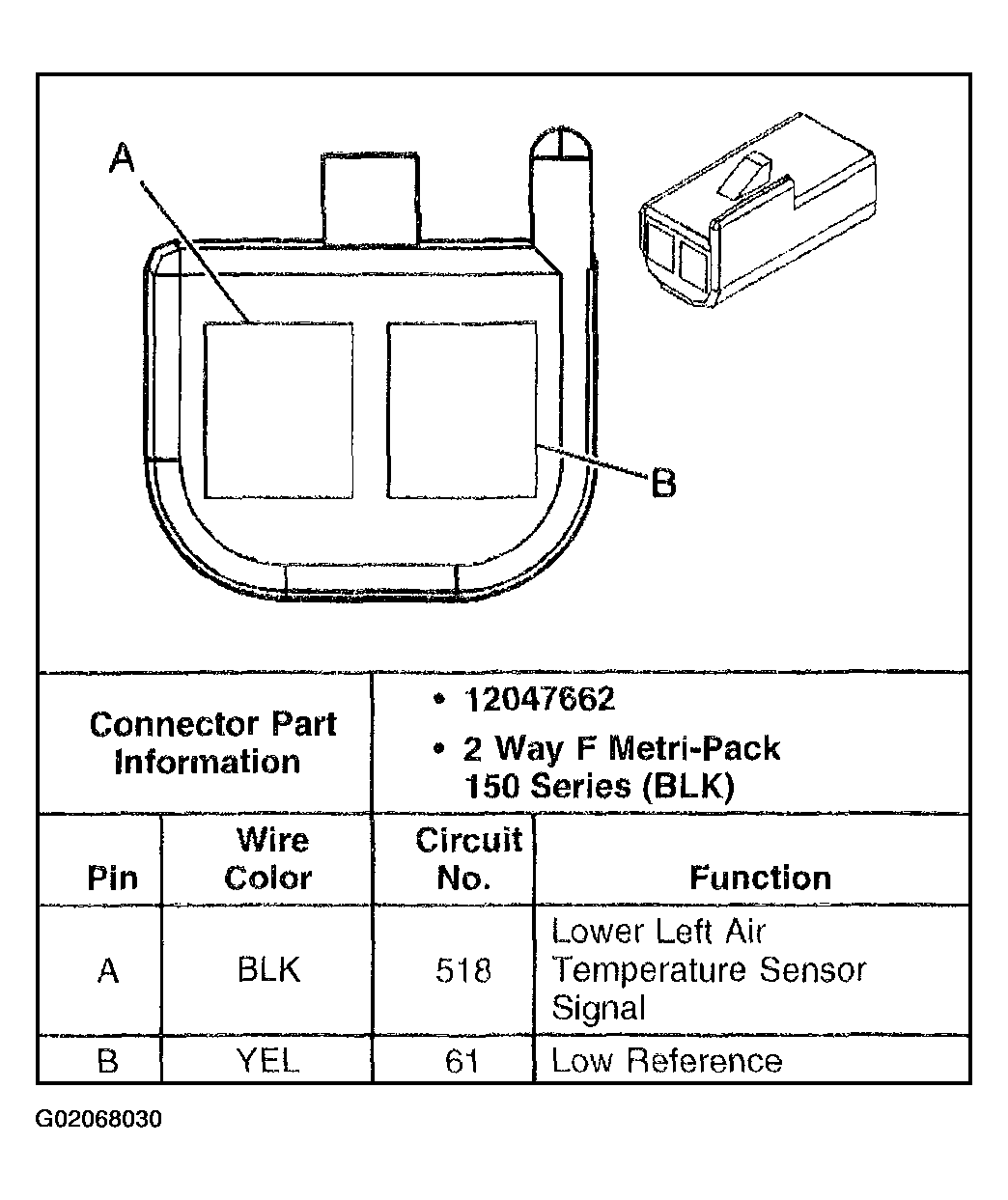

Fig 1: Air Temperature Sensor - Lower Left
G02068030Courtesy of GENERAL MOTORS CORP.
