Door Lock Switch Connector End View - Front Passenger

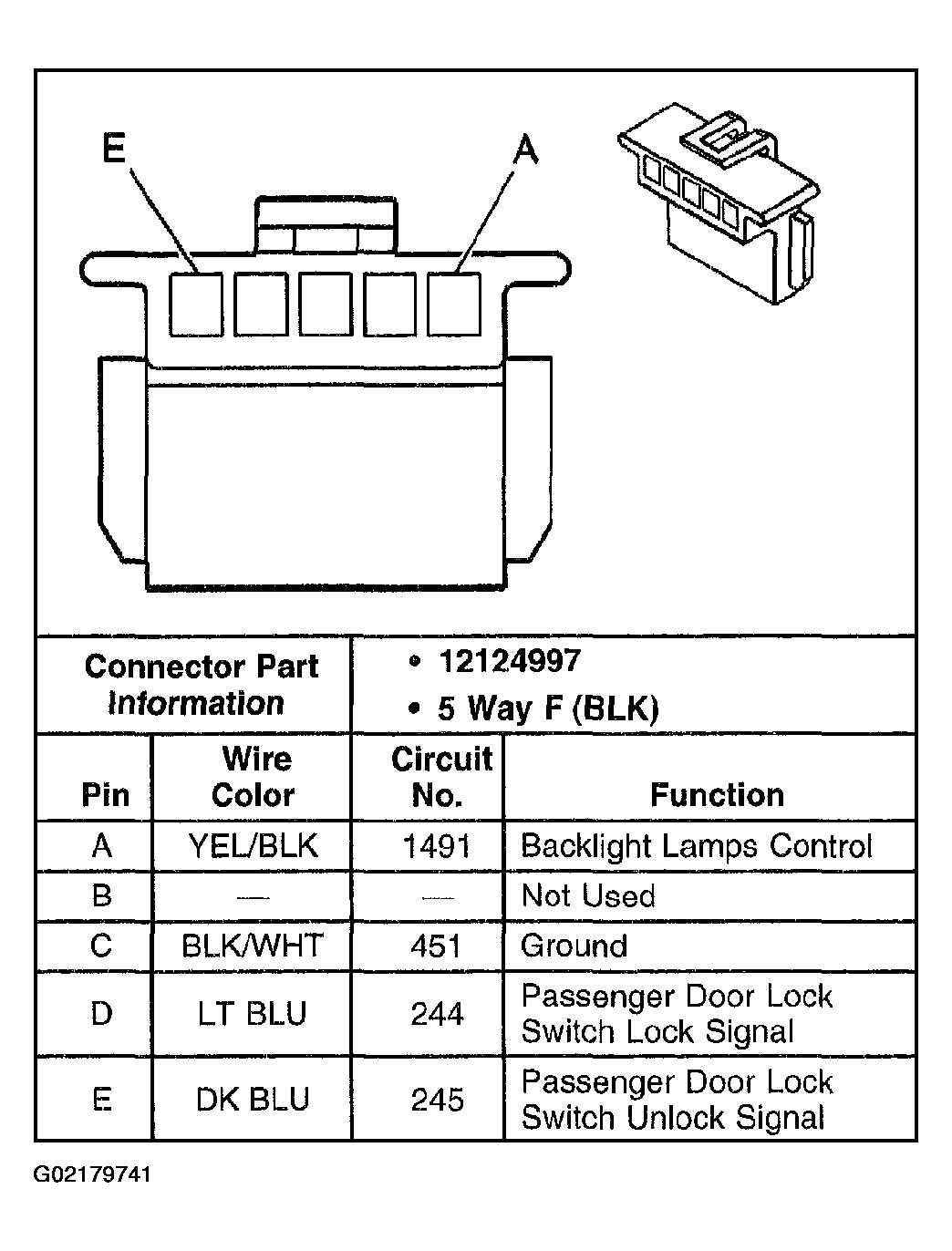

Fig 1: Door Lock Switch - Front Passenger
G02179741Courtesy of GENERAL MOTORS CORP.
