Heated Seat Module Connector End View - Front Passenger C3

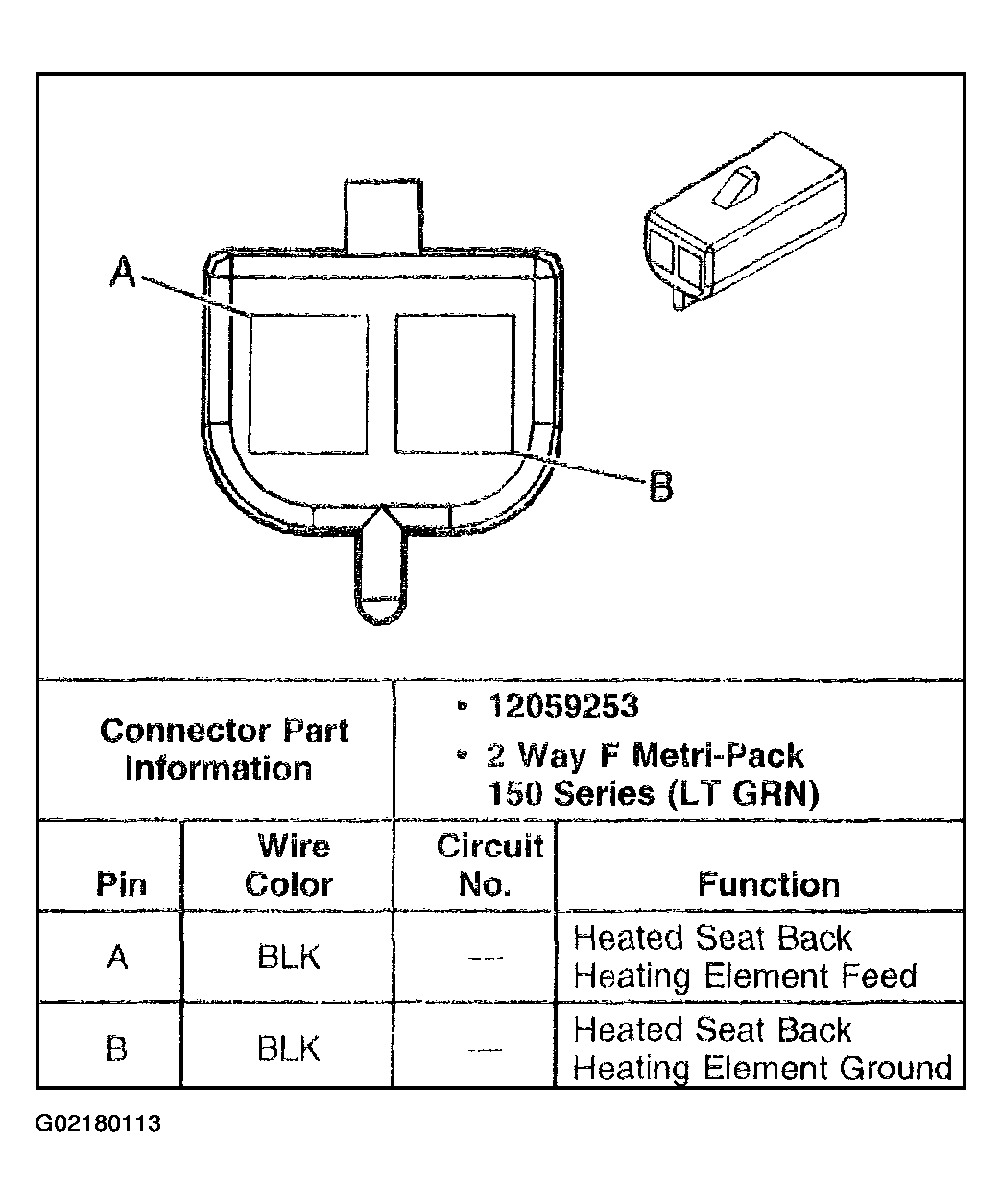

Fig 1: Heated Seat Module - Front Passenger C3
G02180113Courtesy of GENERAL MOTORS CORP.
