Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the AM/FM antenna module (1) to the roof beam, ensuring that the alignment tab is properly located.
    NOTE: Refer to FASTENER NOTICE
  2. Install AM/FM antenna module retaining fastener (3).

    Tighten

    Tighten the antenna module fastener (3) to 6 N.m (53 lb in).

  3. Connect the electrical connectors (2) and the coaxial cables (4, 5) to the AM/FM antenna module (1).
  4. Install the rear assist handles. Refer to ASSIST HANDLE REPLACEMENT
  5. Install the left rear sail panel. Refer to SAIL PANEL REPLACEMENT

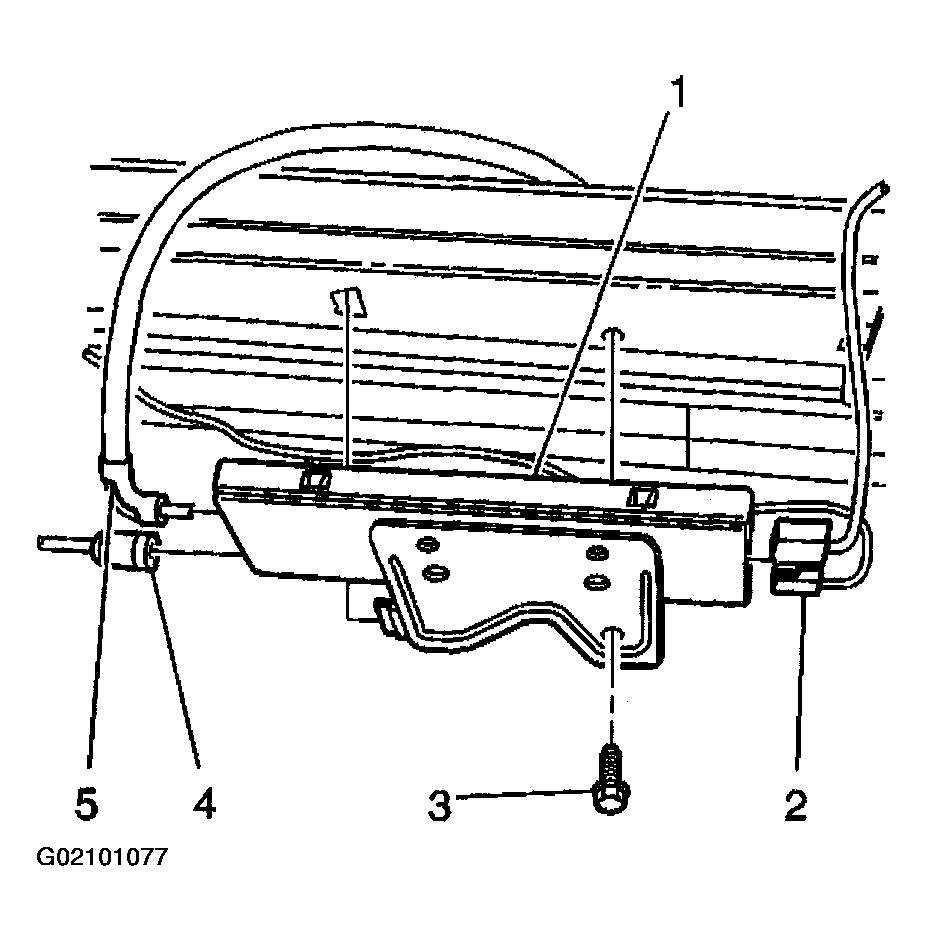

    Fig 1: Installing AM/FM Antenna Module
    G02101077Courtesy of GENERAL MOTORS CORP.
