Engine Verification

The engine verification label is placed in two locations on the right side of the engine.

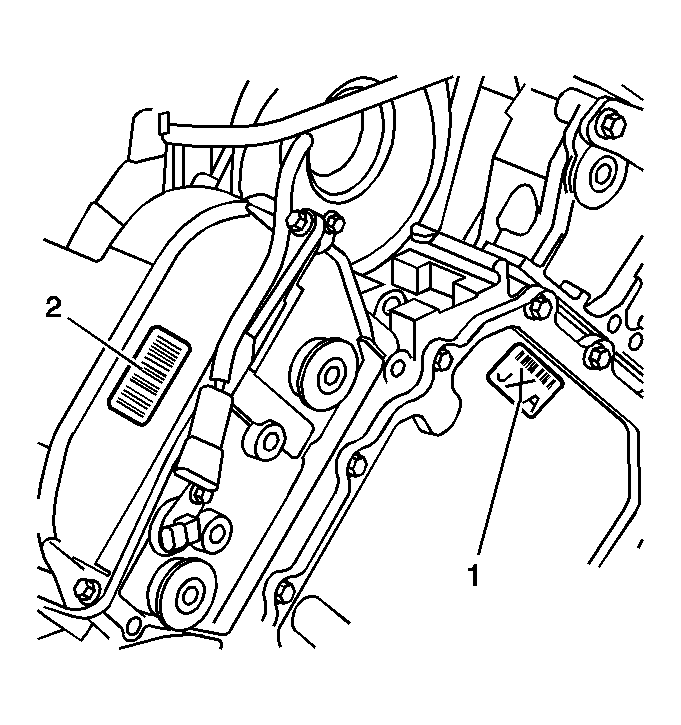

Fig 1: View Of Engine Verification Label & Traceability Label
GM522573Courtesy of GENERAL MOTORS CORP.

The engine front cover has an engine verification label (1) and the front of the right camshaft cover has a traceability label (2).

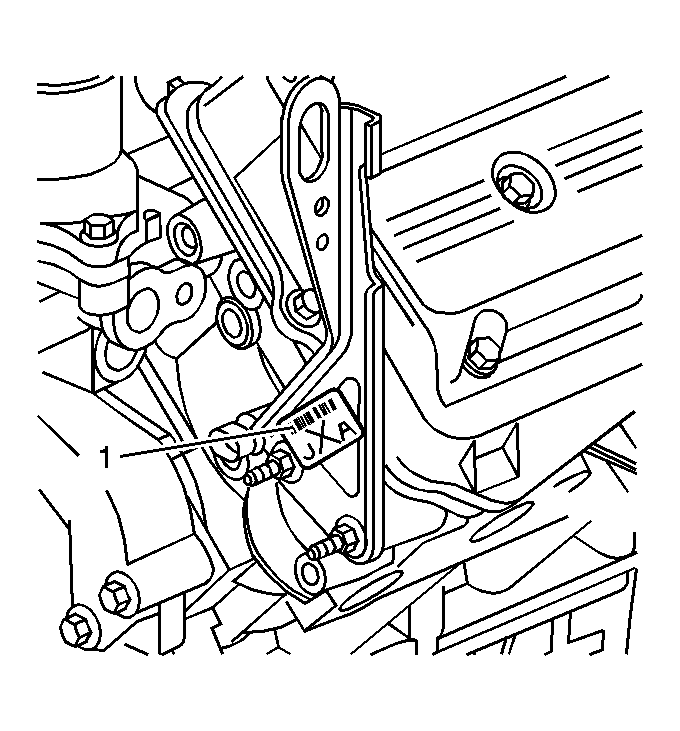

Fig 2: View Of Engine Verification Label On Rear Right Camshaft Cover
GM522577Courtesy of GENERAL MOTORS CORP.

The rear of the right camshaft cover has an engine verification label (1).
