Suspension Controls Component Views
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

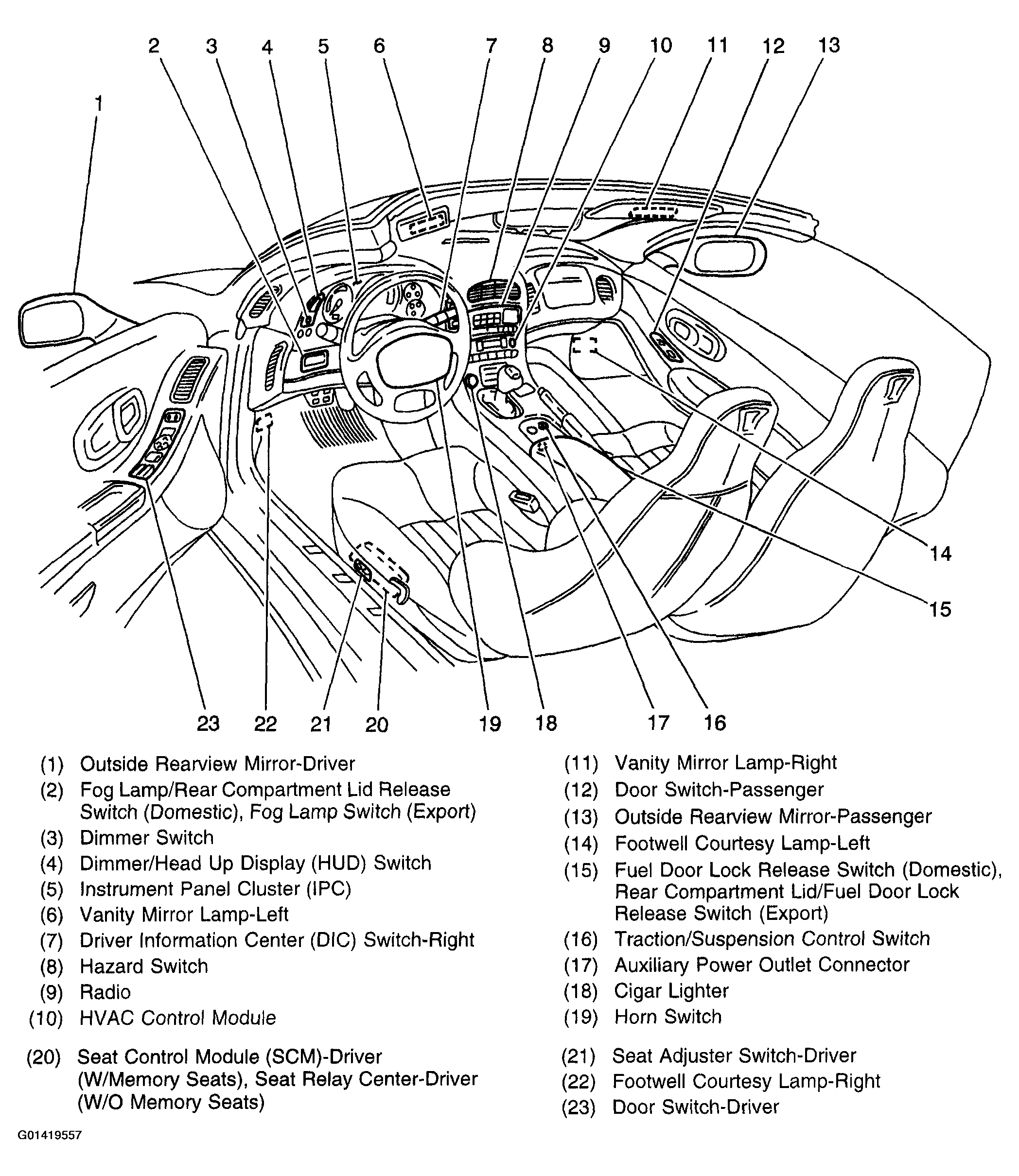

Fig 1: Exploded View Of Cockpit View Components
Courtesy of GENERAL MOTORS CORP.

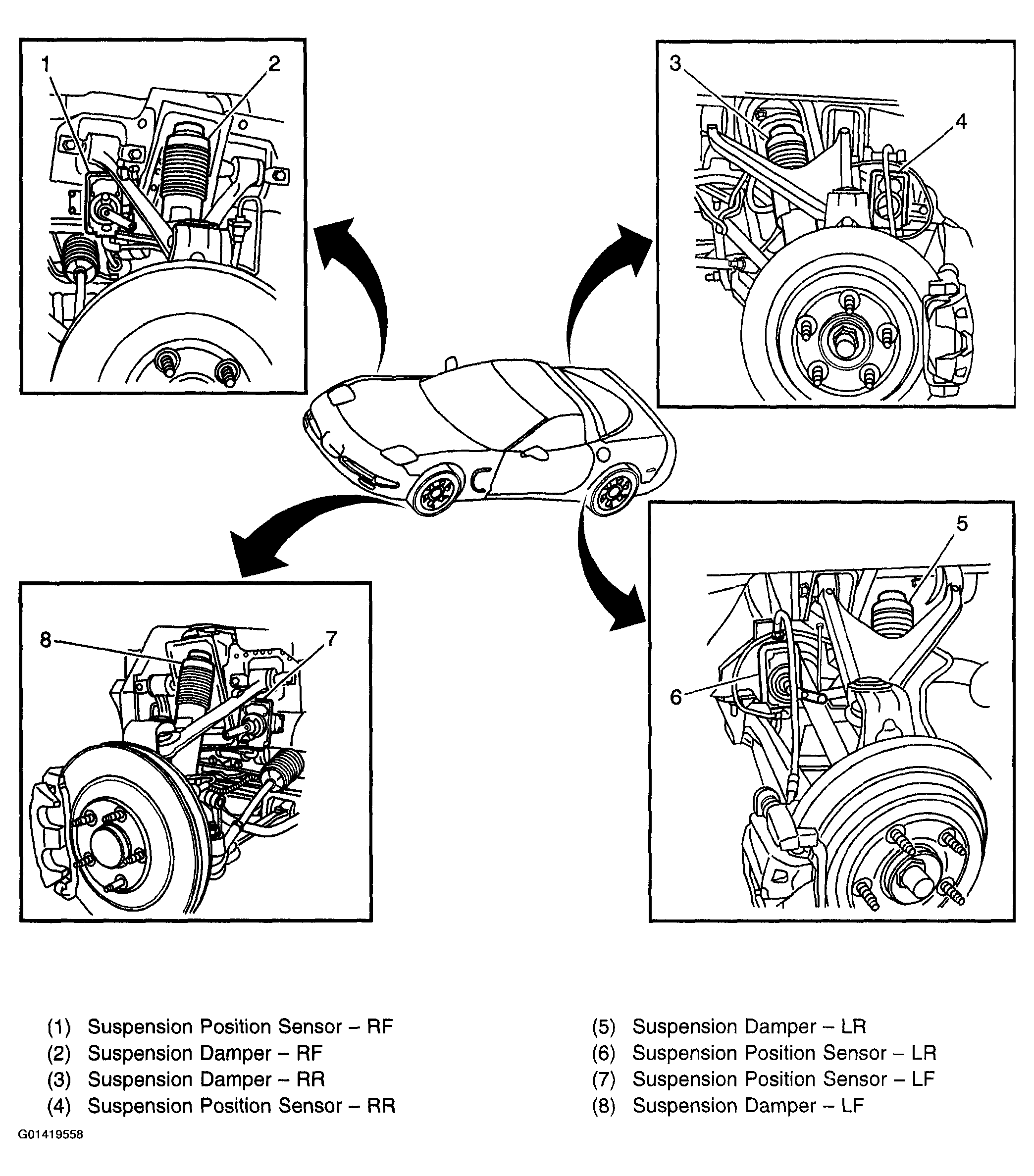

Fig 2: Exploded View Of Suspension Components - Sensors and Dampers
