Body Control Module: Locations

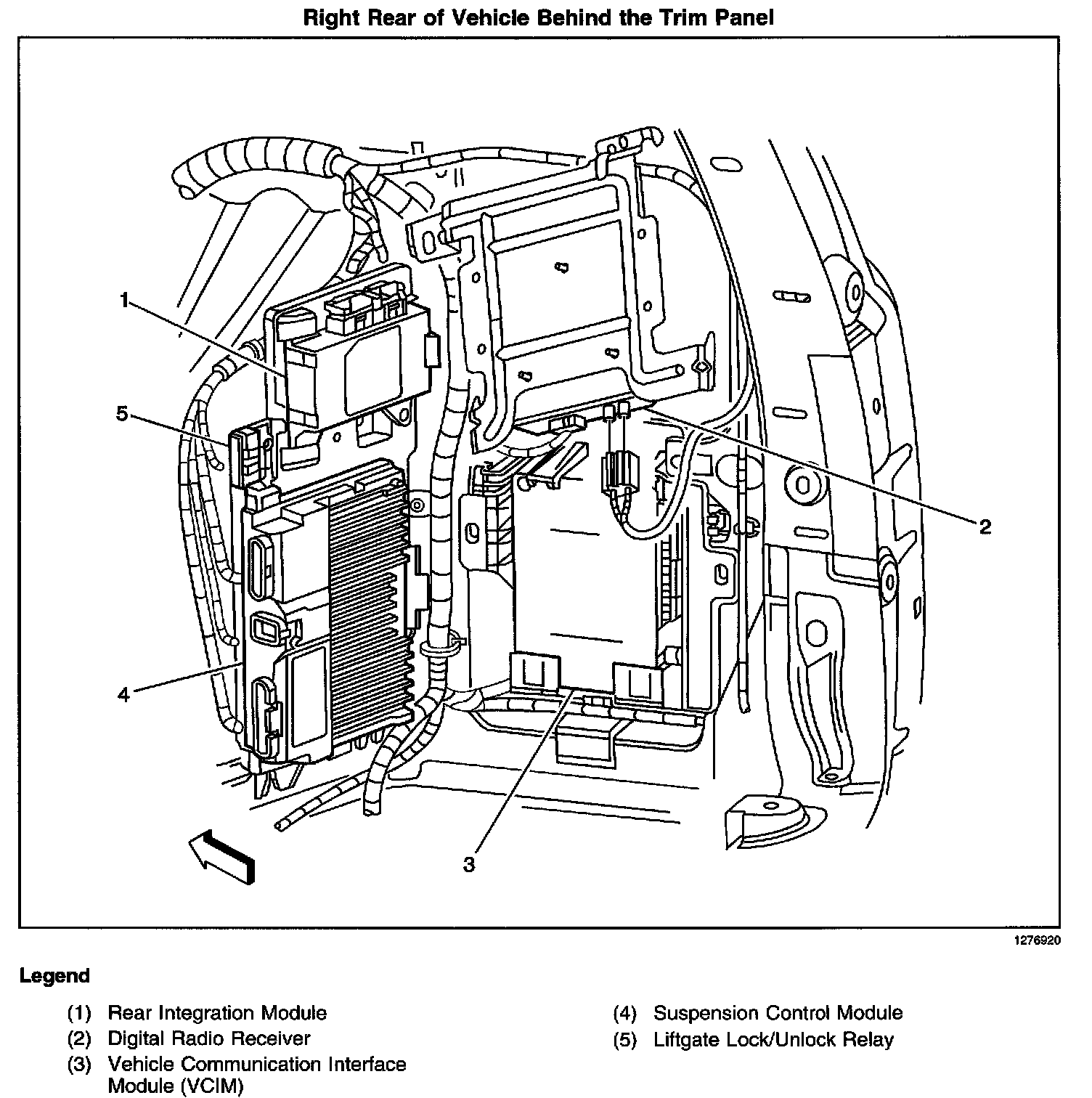

Right Rear Of Vehicle Behind The Trim Panel:

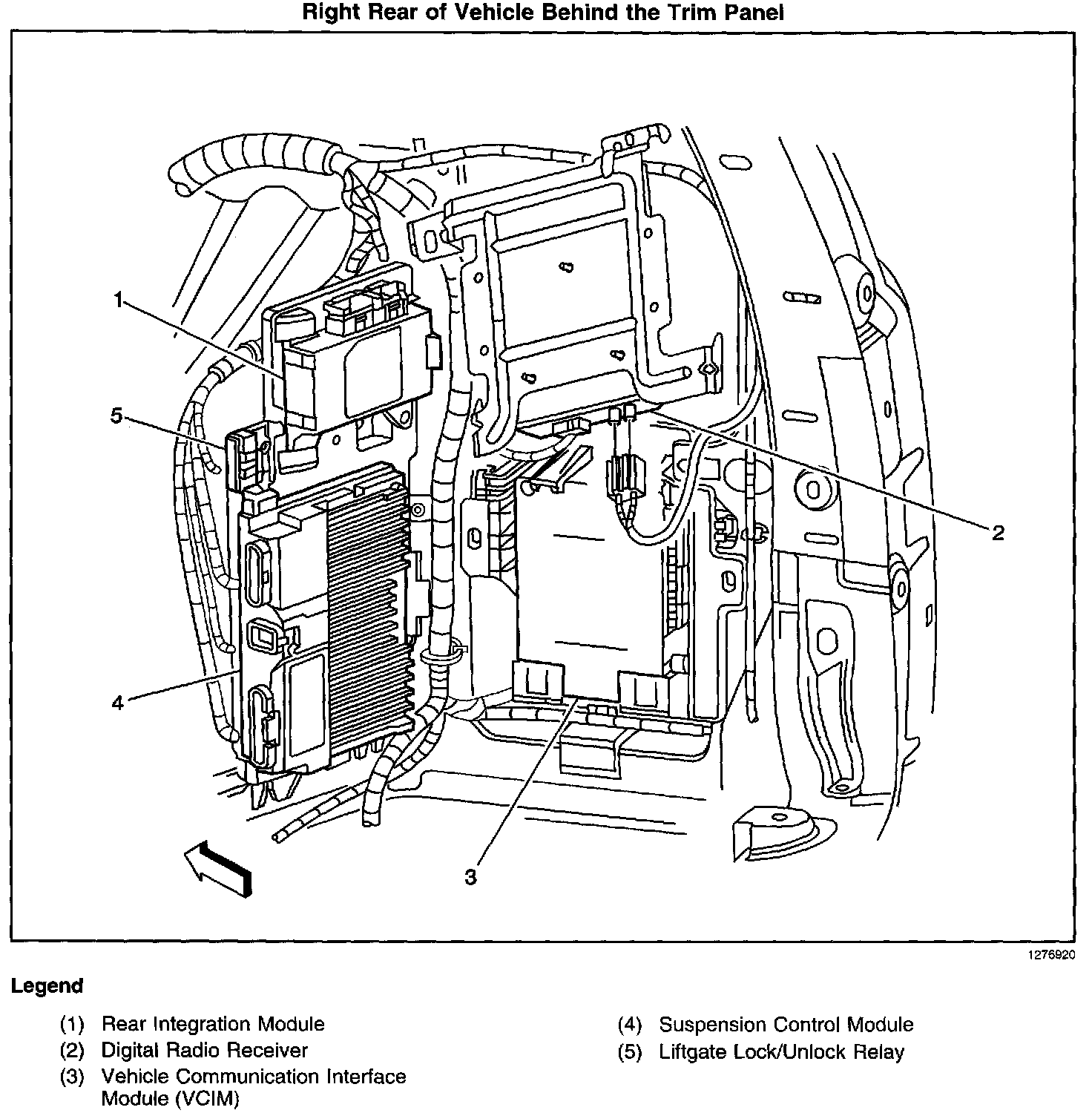

Right Rear Of Vehicle Behind The Trim Panel:
