Accelerator Pedal Position Sensor: Locations

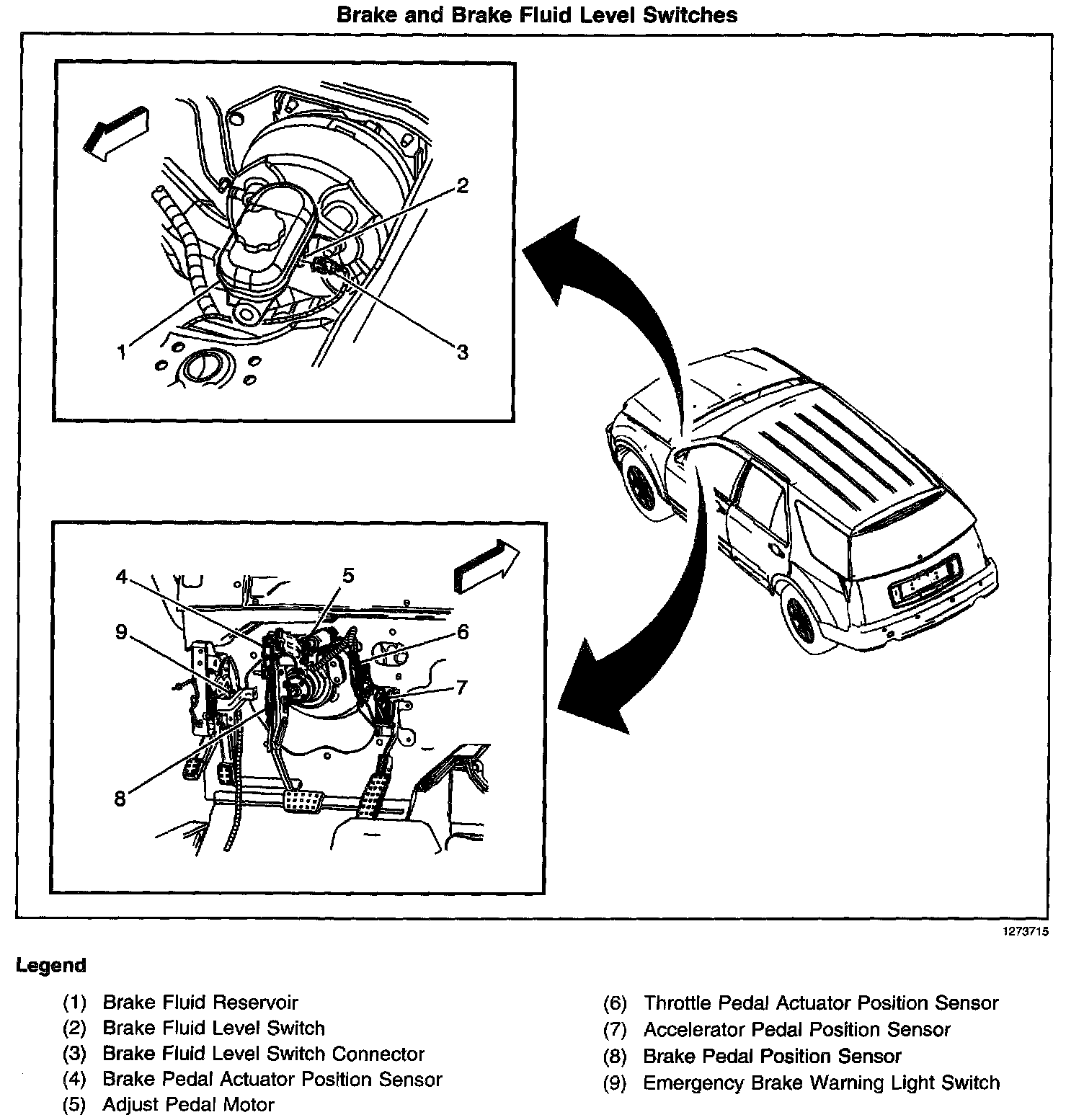

Brake And Brake Fluid Level Switches:

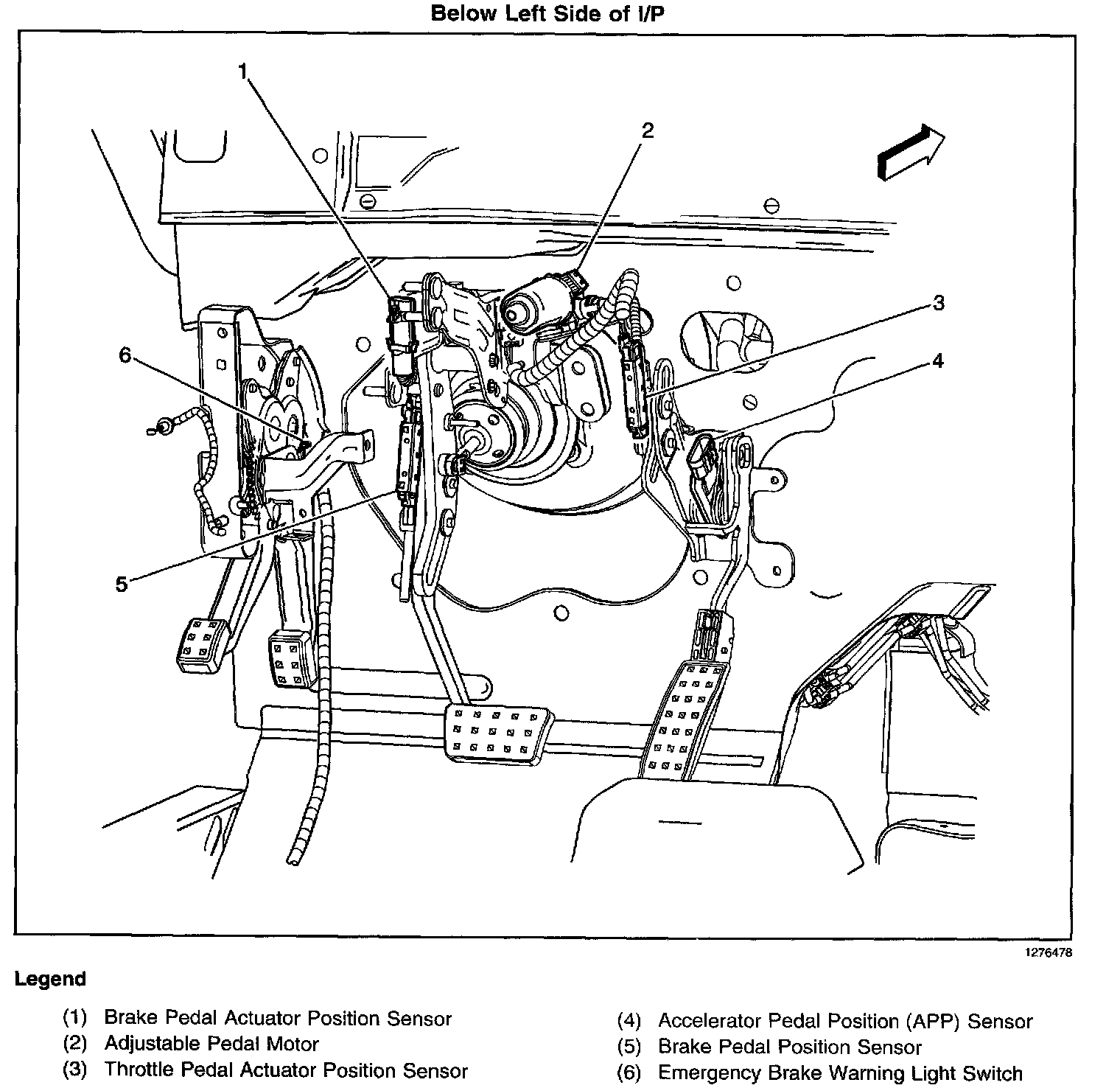

Below Left Side Of I/P:

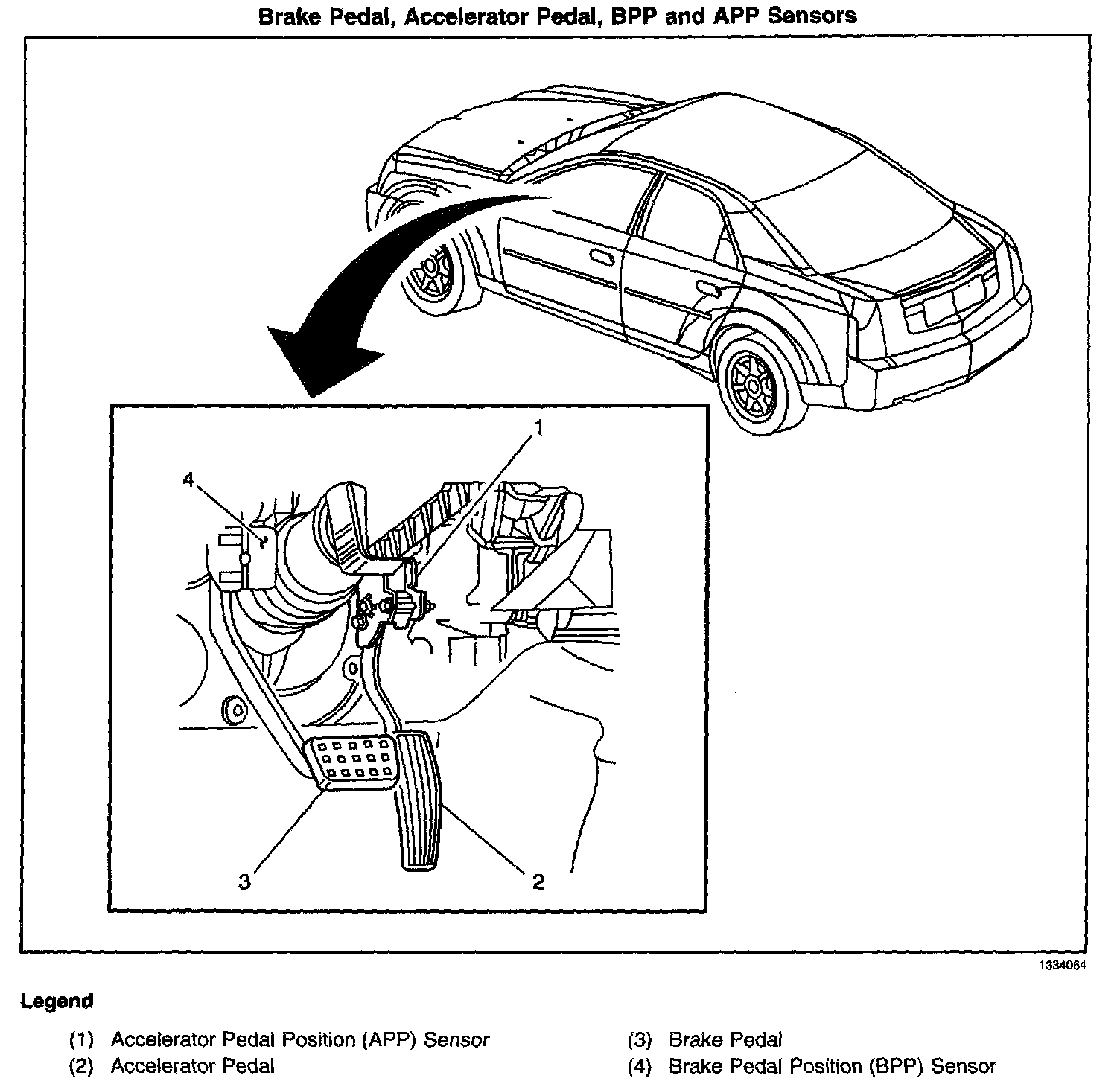

Brake Pedal, Accelerator Pedal, BPP And APP Sensors:
