Rear Integration Module Replacement

REAR INTEGRATION MODULE REPLACEMENT

REMOVAL PROCEDURE




1. Remove the right rear body side trim.

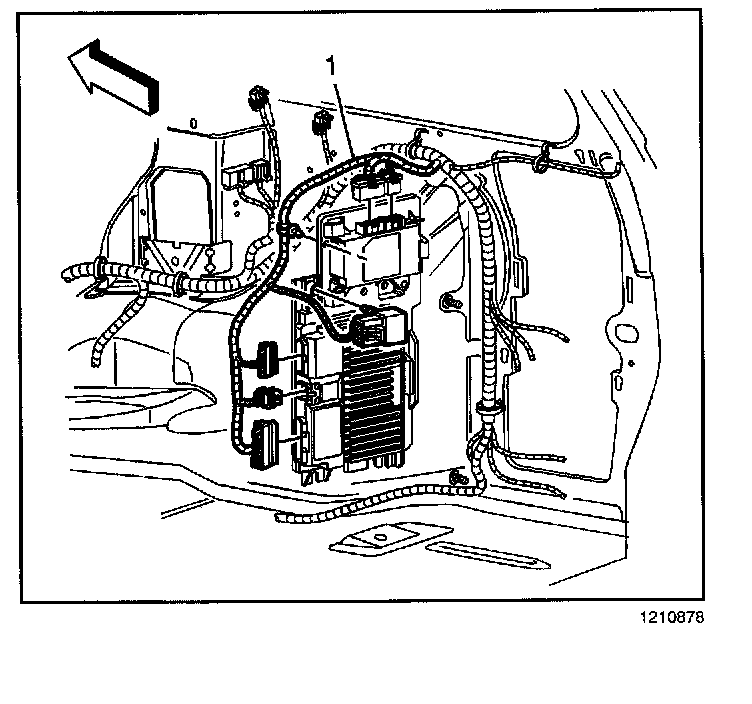

2. Disconnect the electrical connectors (1) from the rear integration module (RIM).




3. Remove the RIM from the mounting bracket.

INSTALLATION PROCEDURE




1. Install the RIM to the mounting bracket.

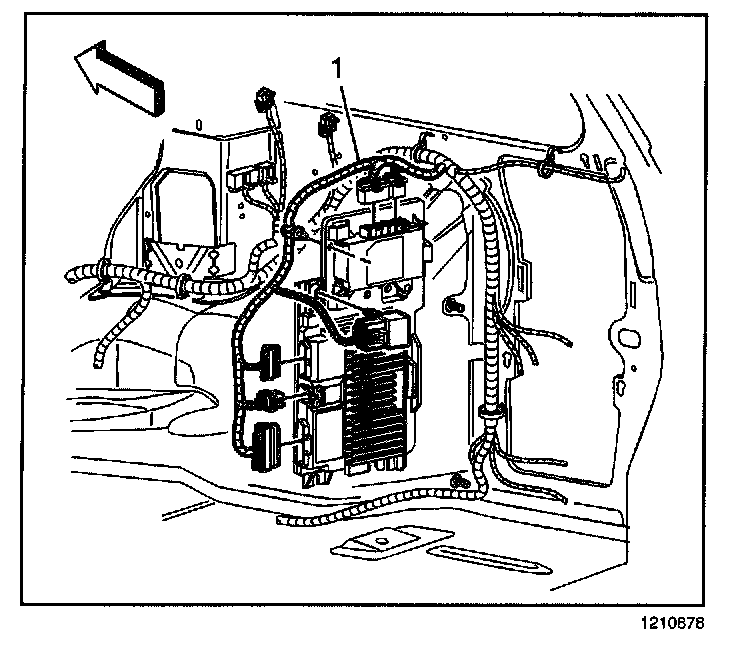

2. Connect the electrical connectors (1).
3. Install the right rear body side trim.
4. Reprogram the module. Refer to Body Control Module (BCM) Programming/RPO Configuration (DIM) or Body Control Module (BCM) Programming(RPO Configuration (RIM). Programming and Relearning
