Home >> Cadillac >> 2004 >> SRX AWD V6-3.6L VIN 7 >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Scan Tool Output Controls >> 5L40-E Automatic Transmission
April 5, 2026: LEMON Manuals is launched! Read the announcement.

5L40-E Automatic Transmission

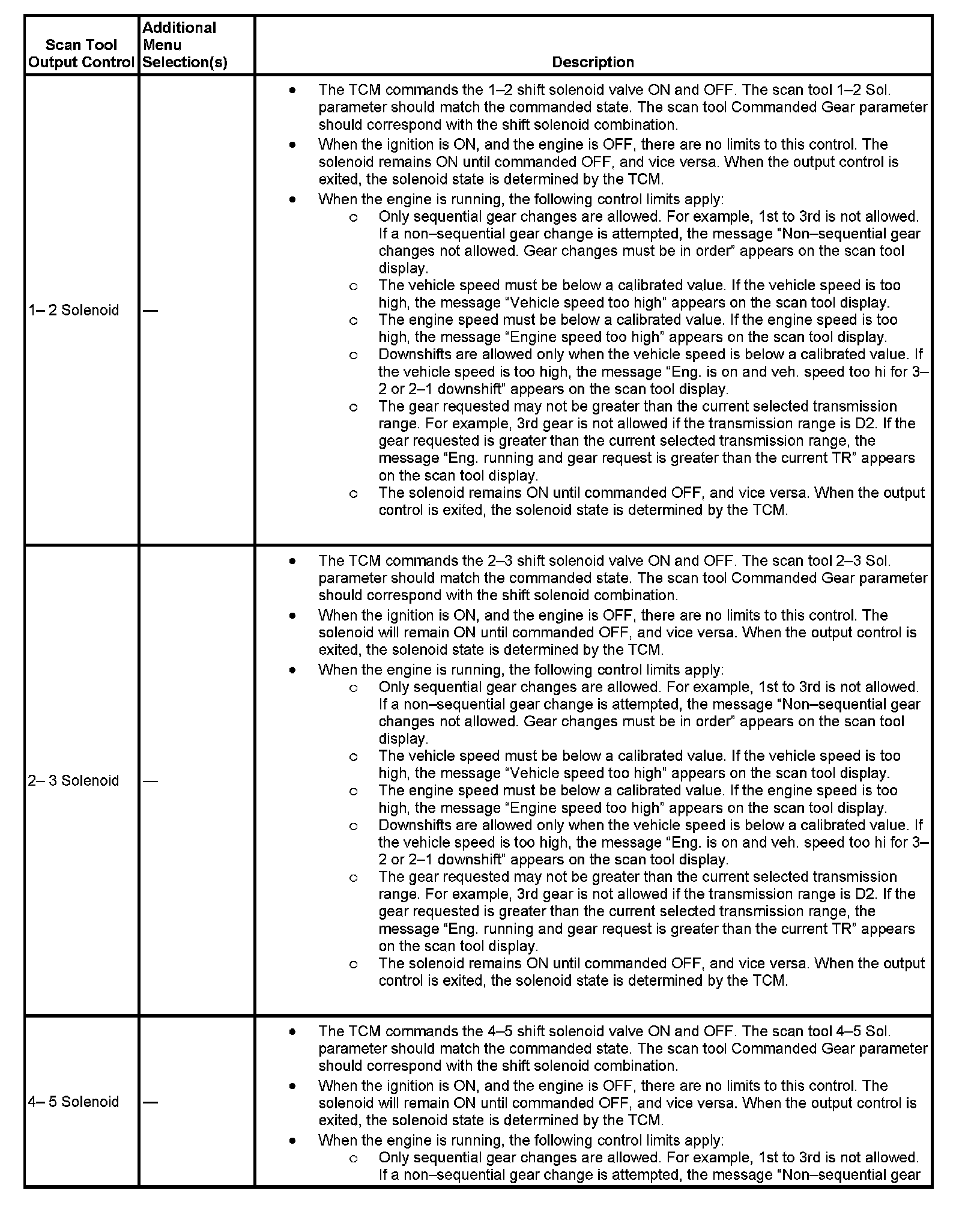

Part 1 Of 3:

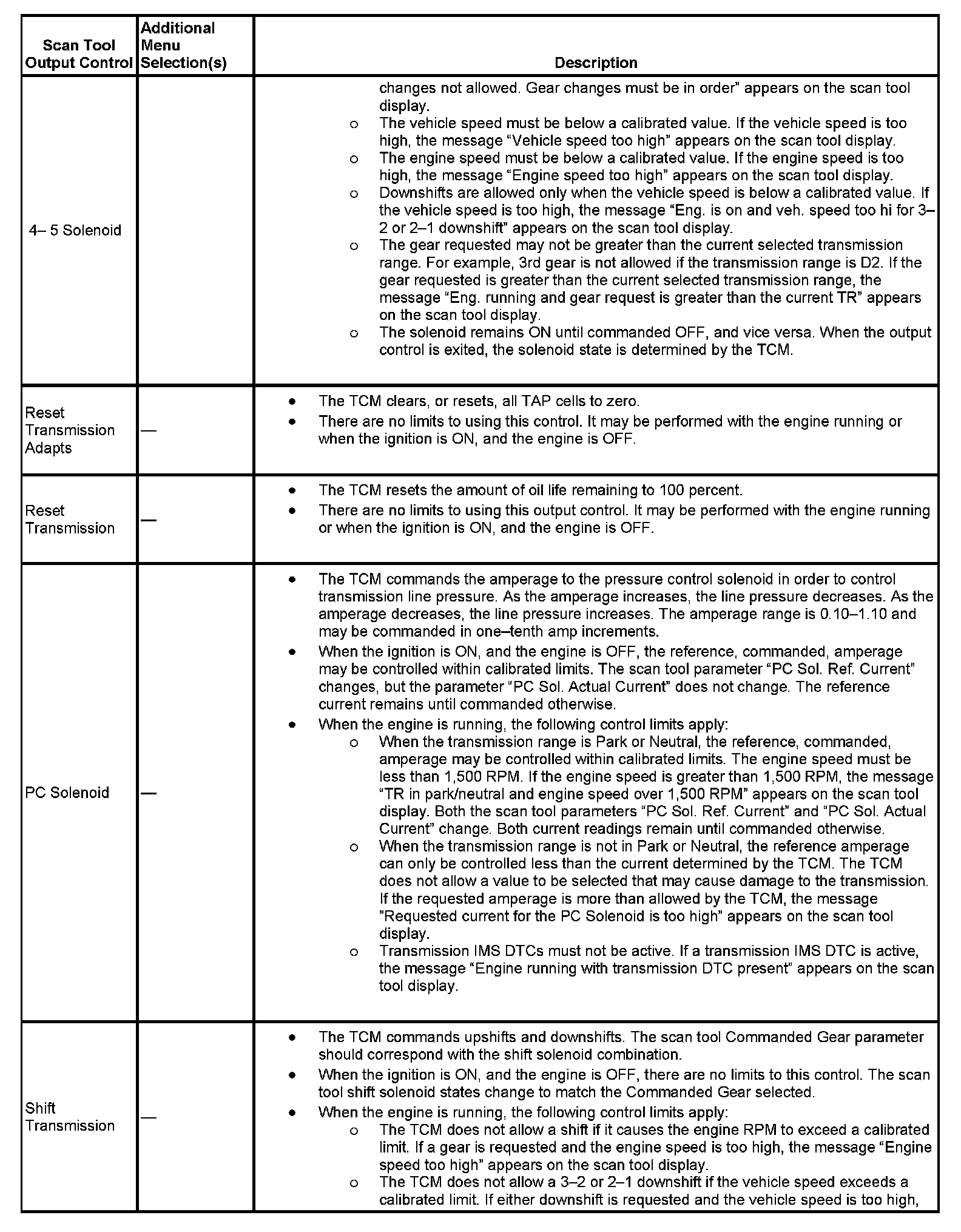

Part 2 Of 3:

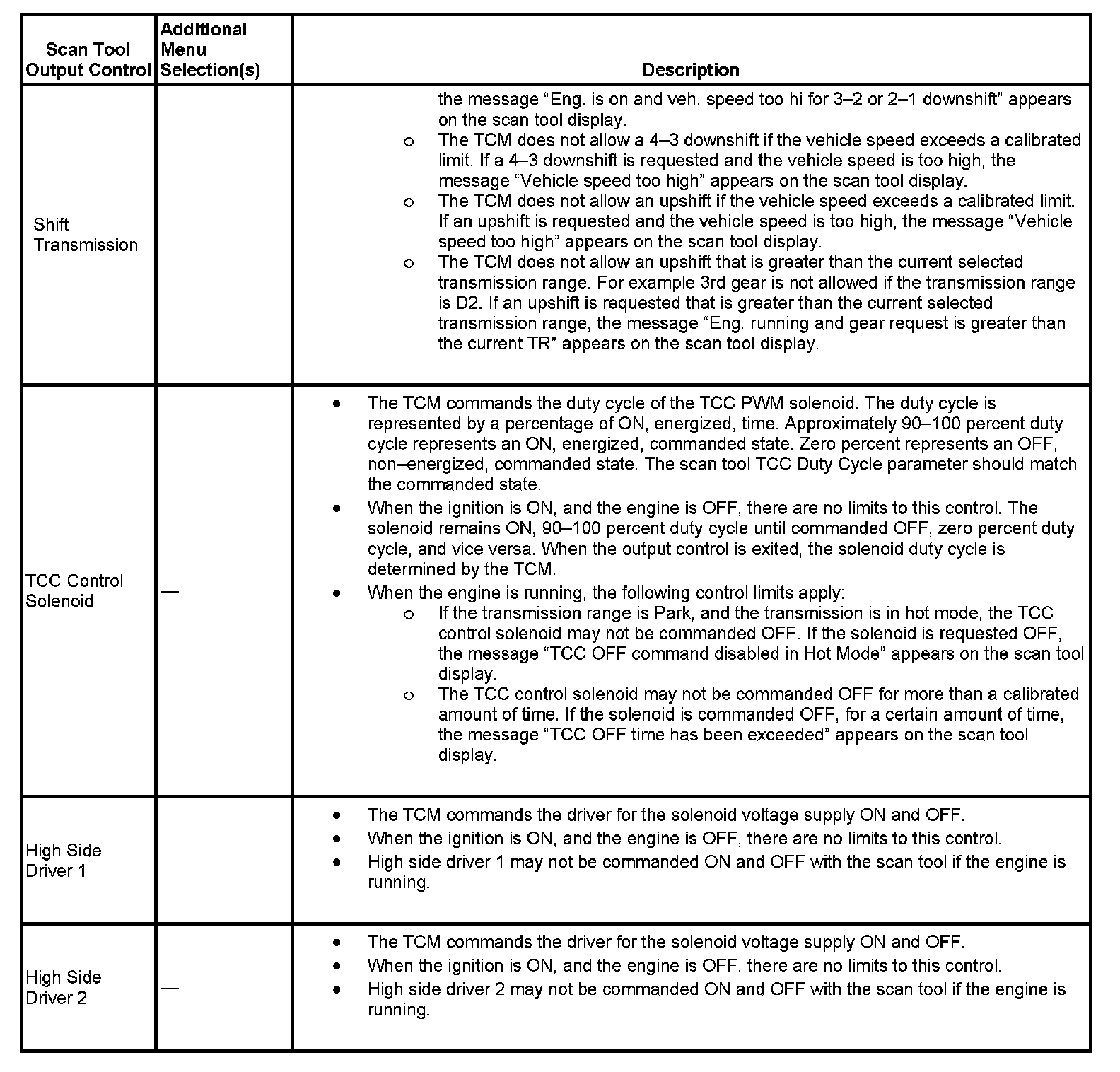

Part 3 Of 3:
