Memory Seat Module - Driver

Memory Seat Module - Driver, C1:

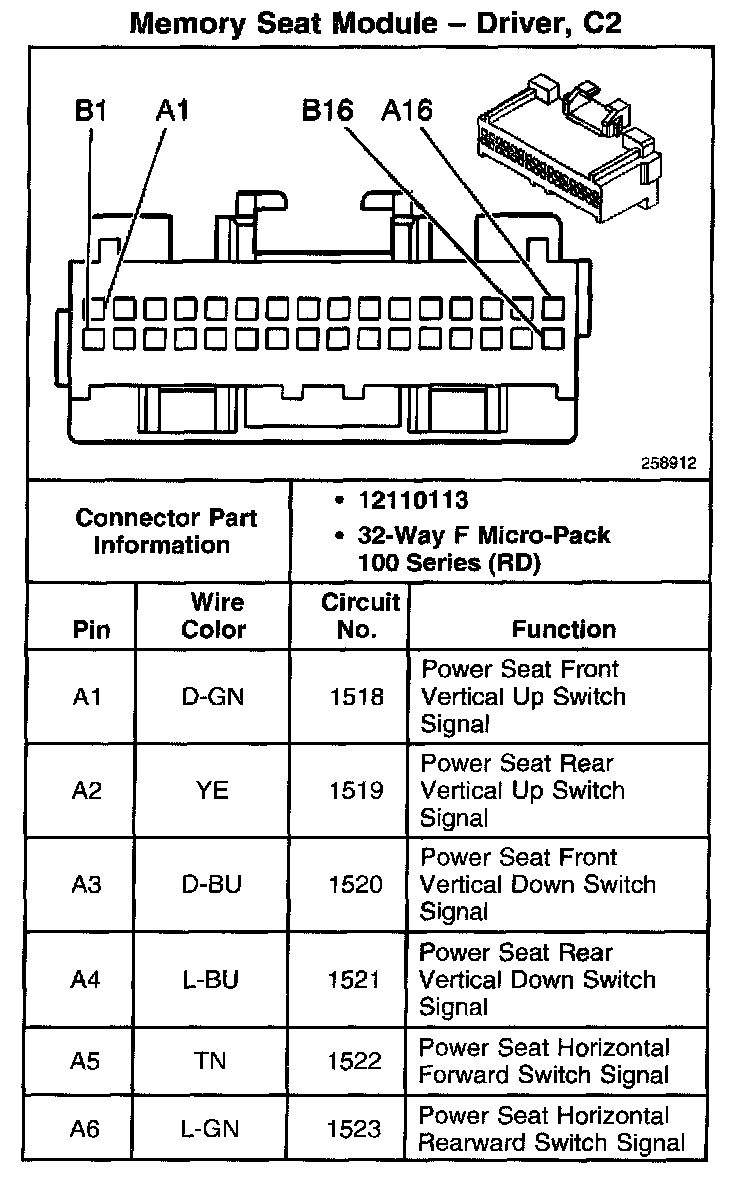

Memory Seat Module - Driver, C2 Part 1:

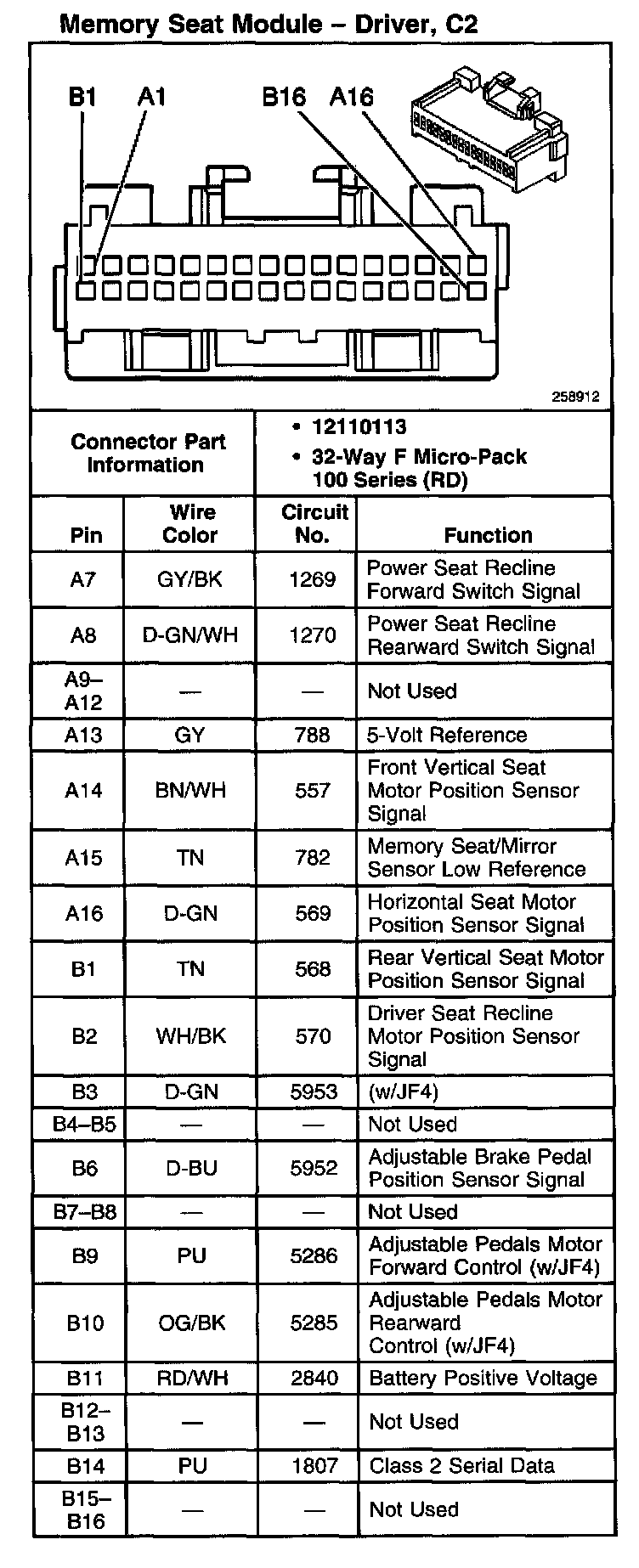

Memory Seat Module - Driver, C2 Part 2:

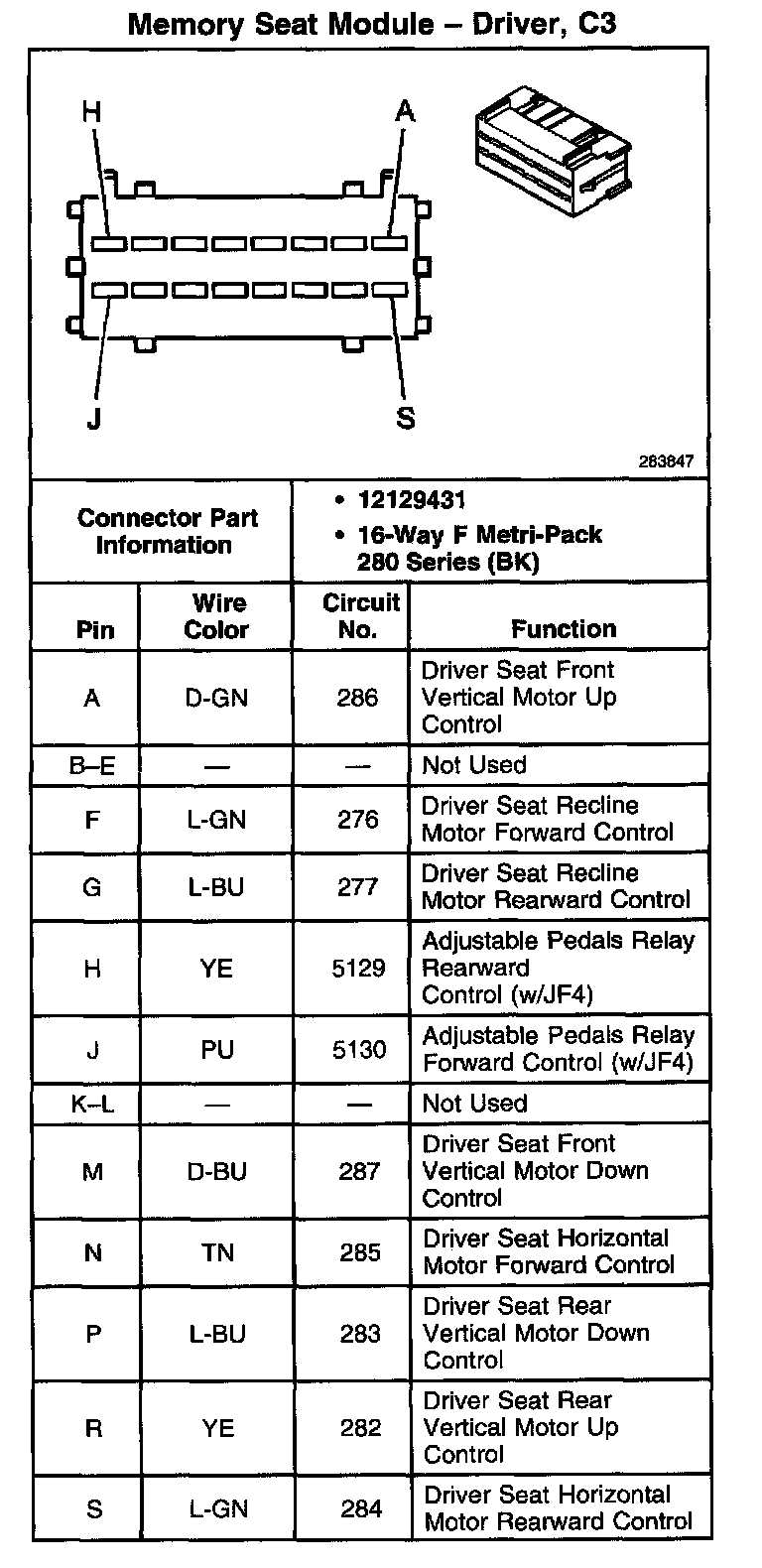

Memory Seat Module - Driver, C3:
