Navigation System Component Views

WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

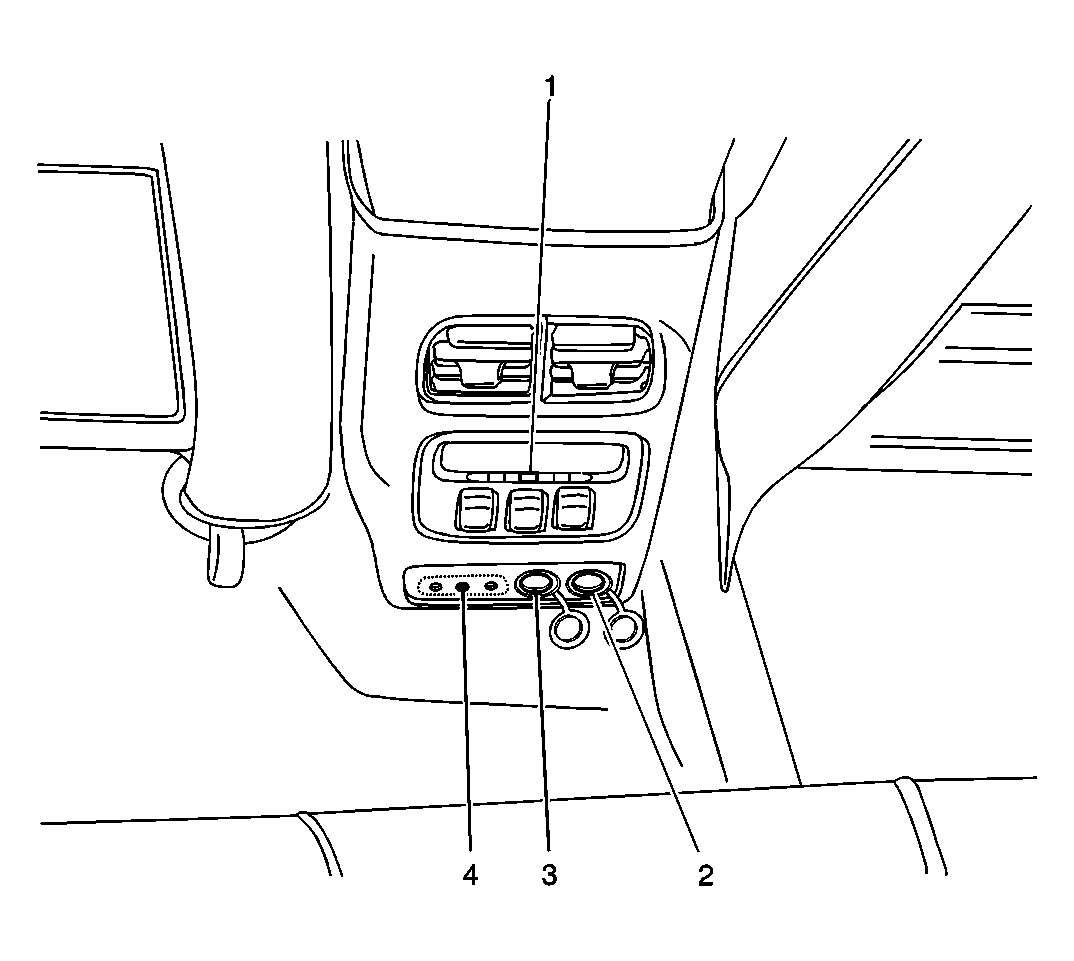

Fig 1: Center of the Passenger Compartment, Behind the Center Console Storage Compartment Component View
GM524981Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 HVAC Control Module - Auxiliary
2 Auxiliary Power Outlet - RR
3 Auxiliary Power Outlet - LR
4 Auxiliary RCA Video Jacks

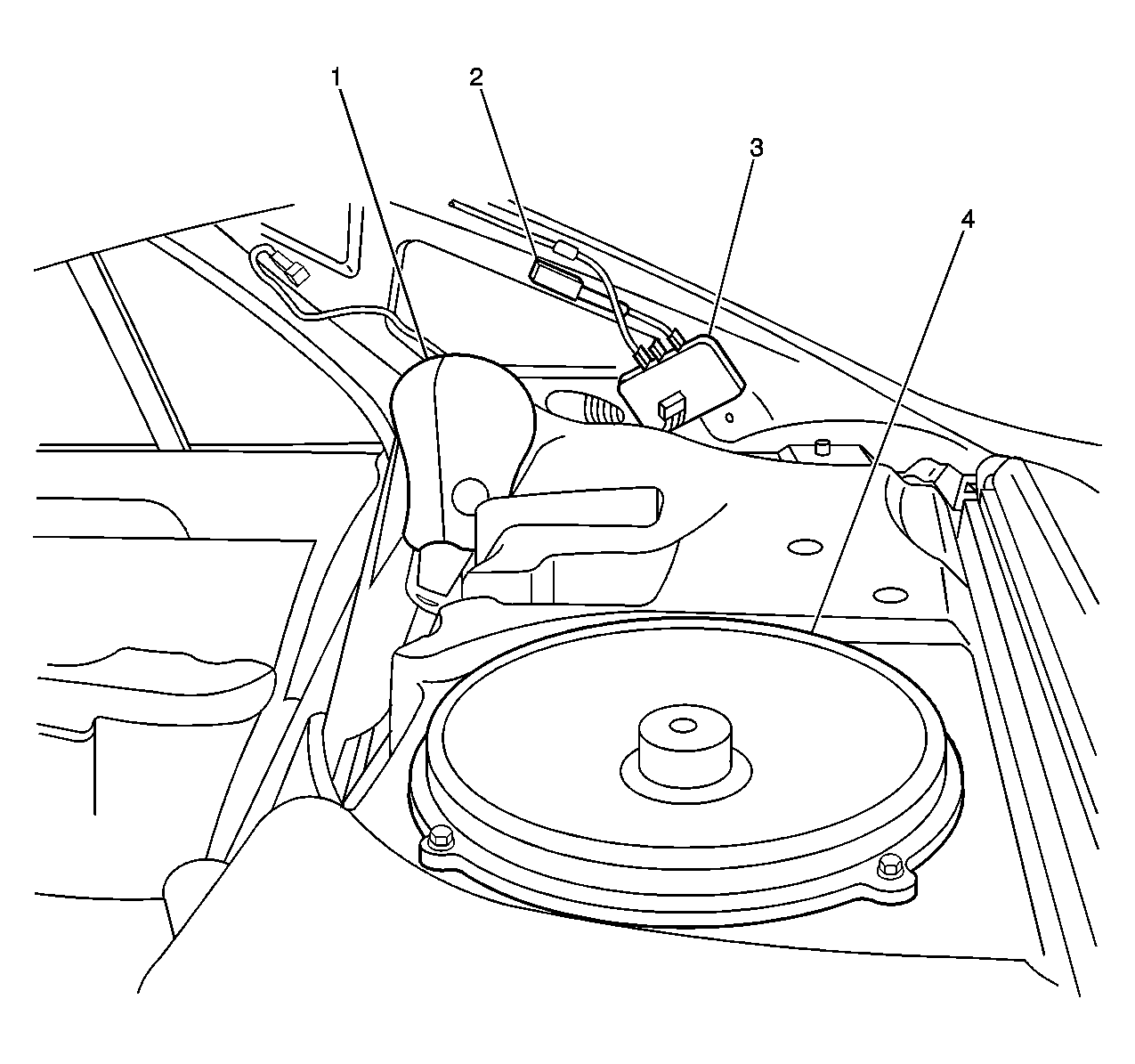

Fig 2: Right Corner of the Passenger Compartment, Above the Rear Seat Component View
GM525020Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Retractor - RR
2 TV Antenna Amplifier - Right
3 TV Antenna Module
4 Speaker - Rear Subwoofer
Fig 3: Left Rear Corner of the Passenger Compartment, Above the Rear Seat Component View
GM525023Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Radio Antenna Module
2 TV Antenna Amplifier - Left
3 Seat Belt Retractor - LR
