Navigation System Connector End Views

WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

Auxiliary RCA Video Jacks Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12065398 8-Way F Metri-Pack 150 Series (NAT)
Pin	Wire Color	Circuit No.	Function
A	TAN	2057	Auxiliary Video Low Signal
B	WHT	2058	Auxiliary Audio Right Signal
C	PPL	2056	Auxiliary Video High Signal
D	PNK	2060	Auxiliary Detection Signal
E	YEL	2059	Auxiliary Audio Left Signal
F	BARE	814	Drain Wire
G-H	-	-	Not Used

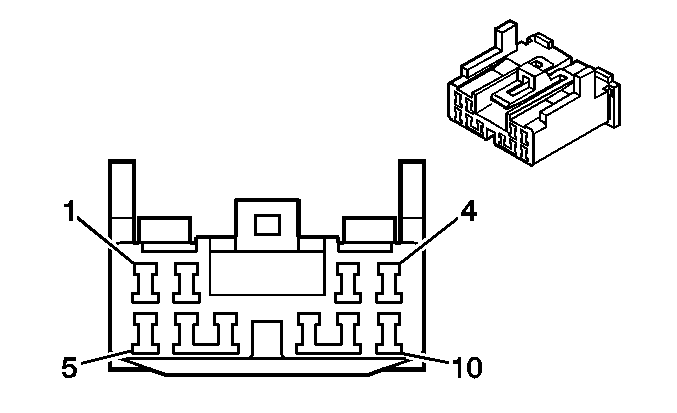

Traffic Information Receiver Connector End View (VICS)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15393848 10-Way F 050 Unsealed Series (BLK)
Pin	Wire Color	Circuit No.	Function
1	GRY	5383	Traffic Information Signal (+)
2	BRN	5384	Traffic Information Signal (-)
3	ORN	3240	Battery Positive Voltage
4	YEL	43	Accessory Voltage
5	BLK/wht	851	Ground
6	YEL	5385	Traffic Information Request Signal
7	BARE	814	Drain Wire
8-10	-	-	Not Used

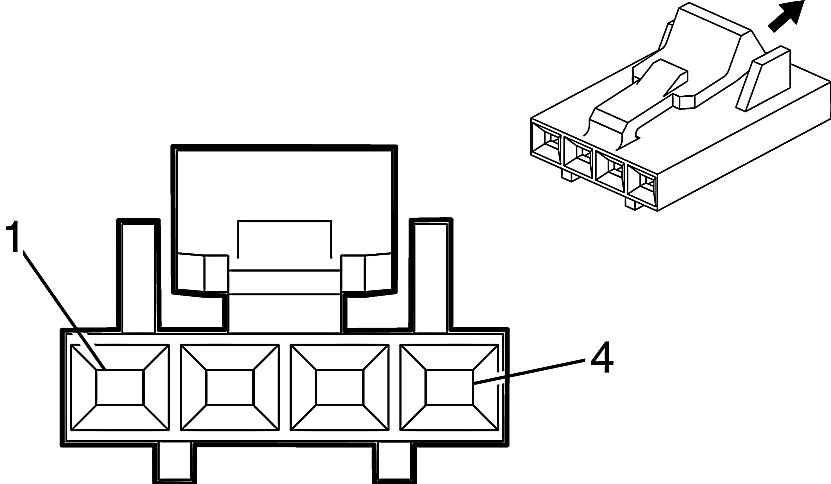

TV Antenna Module Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		16198556 4-Way F MODU Series IV (BLK)
Pin	Wire Color	Circuit No.	Function
1	LT GRN/WHT	2707	Antenna Select Signal (-)
2	GRY	1698	Antenna Select Supply Voltage
3	DK BLU/WHT	1849	Antenna Select Baud 2 Signal (+)
4	BLU/WHT	1801	Antenna Select Baud 1 Signal (+)
