Power Outlet Component Views
WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

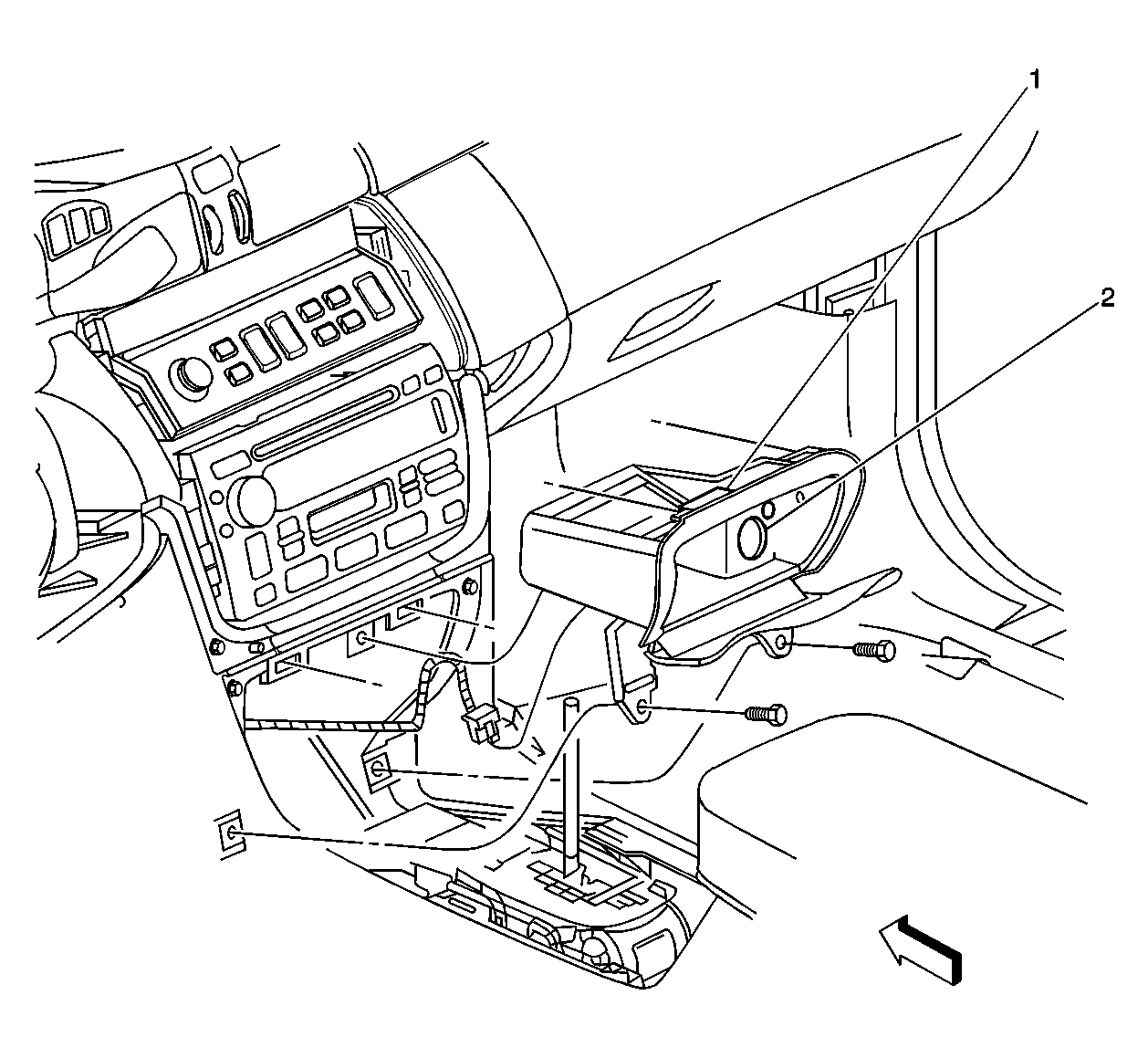

Fig 1: Center Front of the Passenger Compartment, Front of the Center Console, in the Ashtray Component View
| Callout | Component Name |
|---|---|
| 1 | Ashtray Lamp |
| 2 | Cigar Lighter Front |
Fig 2: Center of the Passenger Compartment, Behind the Center Console Storage Compartment Component View
| Callout | Component Name |
|---|---|
| 1 | HVAC Control Module - Auxiliary |
| 2 | Right Rear Auxiliary Outlet |
| 3 | Left Rear Auxiliary Outlet |
| 4 | Audio/Video Harness |
| Callout | Component Name |
|---|---|
| 1 | Door Lock Switch - LR, RR Similar |
| 2 | Cigar Lighter - LR, RR Similar |
| 3 | Speaker - LR Door, RR Similar |
| 4 | Door Courtesy Lamp - LR Door, RR Similar |
| 5 | Seat Lumbar Switch - LR, RR Similar |
| 6 | Heated Seat Switch - LR, RR Similar |
| 7 | Window Switch - LR, RR Similar |
