Emission Hose Routing Diagram

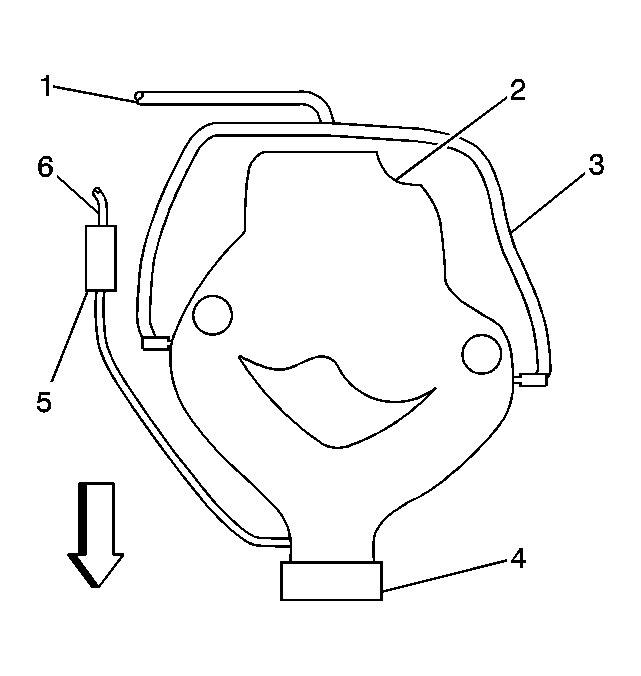

Fig 1: Emission Hose Routing Diagram
GM1236317Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Positive Crankcase Ventilation (PCV) Hose to Cam Cover
2 Upper Intake Manifold
3 PCV Hose to Intake Manifold
4 Throttle Body Assembly
5 Evaporative Emissions (EVAP) Canister Purge Solenoid
6 Emissions Hose to EVAP Canister
