Driver Door Module (DDM)

Driver Door Module (DDM) C1:



Driver Door Module (DDM) C2:

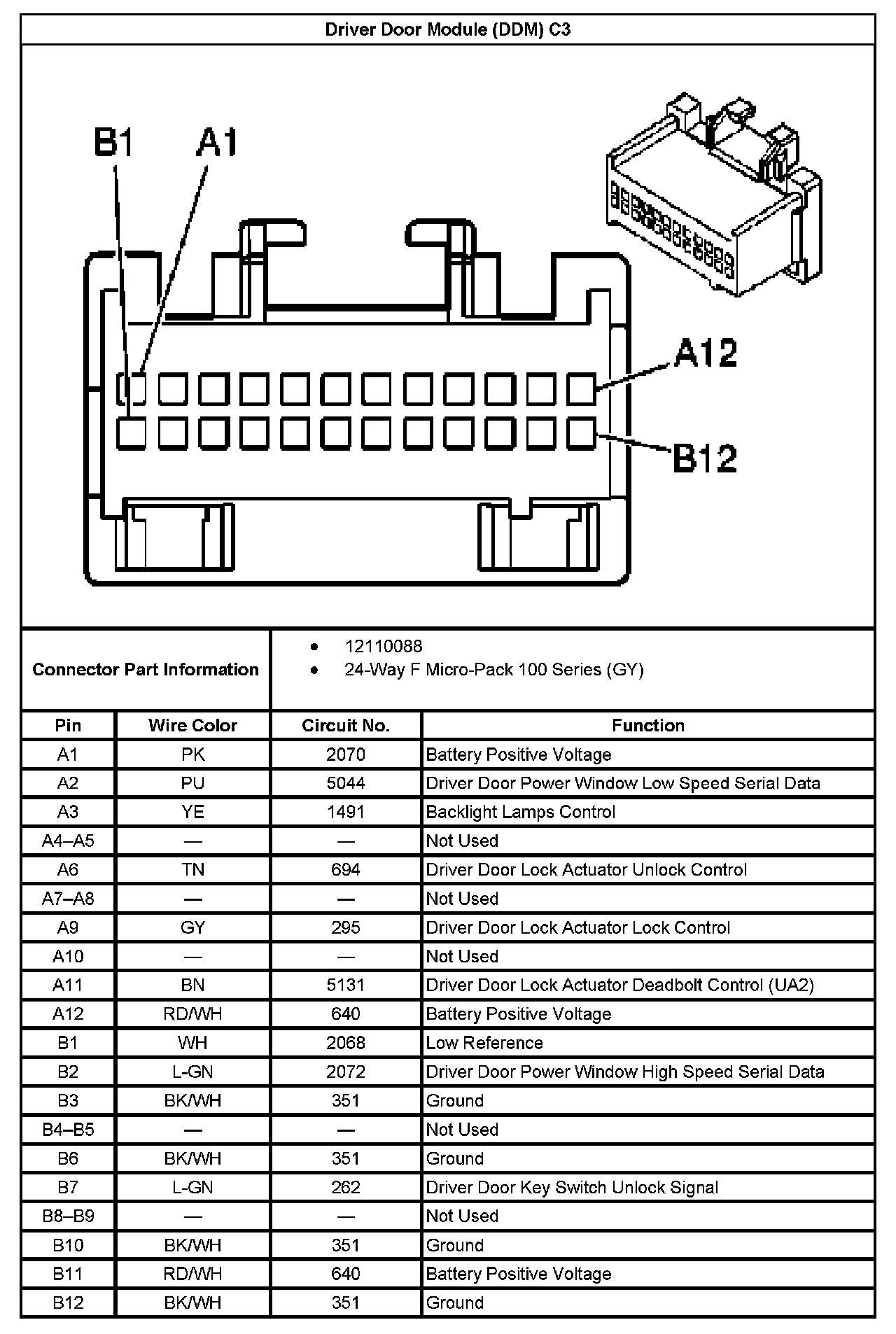

Driver Door Module (DDM) C3:



Driver Door Module (DDM) C4:



Driver Door Module (DDM) C5 (With RPO Code A45):
