Left Rear Door Module (LRDM)
Left Rear Door Module (LRDM) C1:

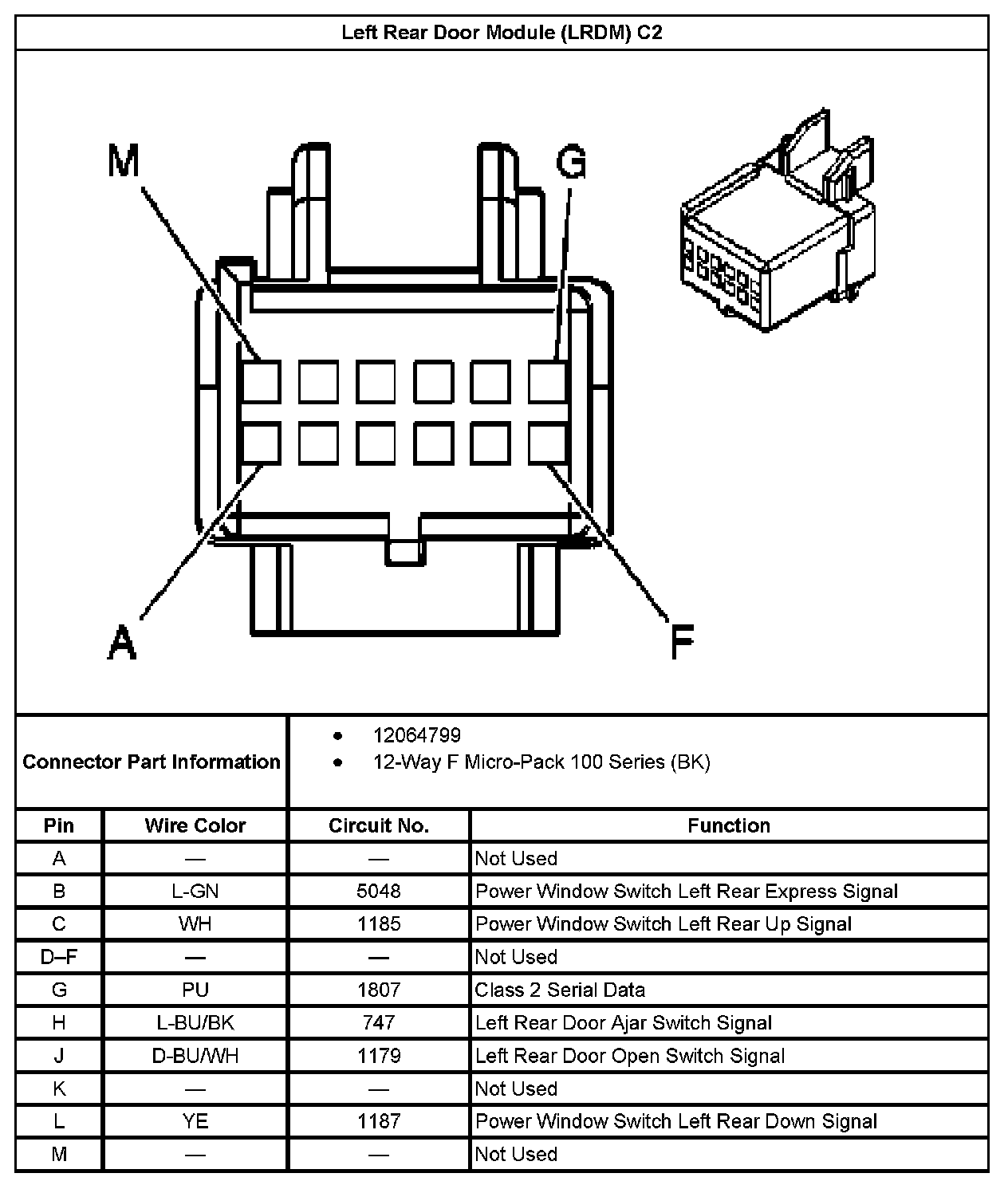

Left Rear Door Module (LRDM) C2:

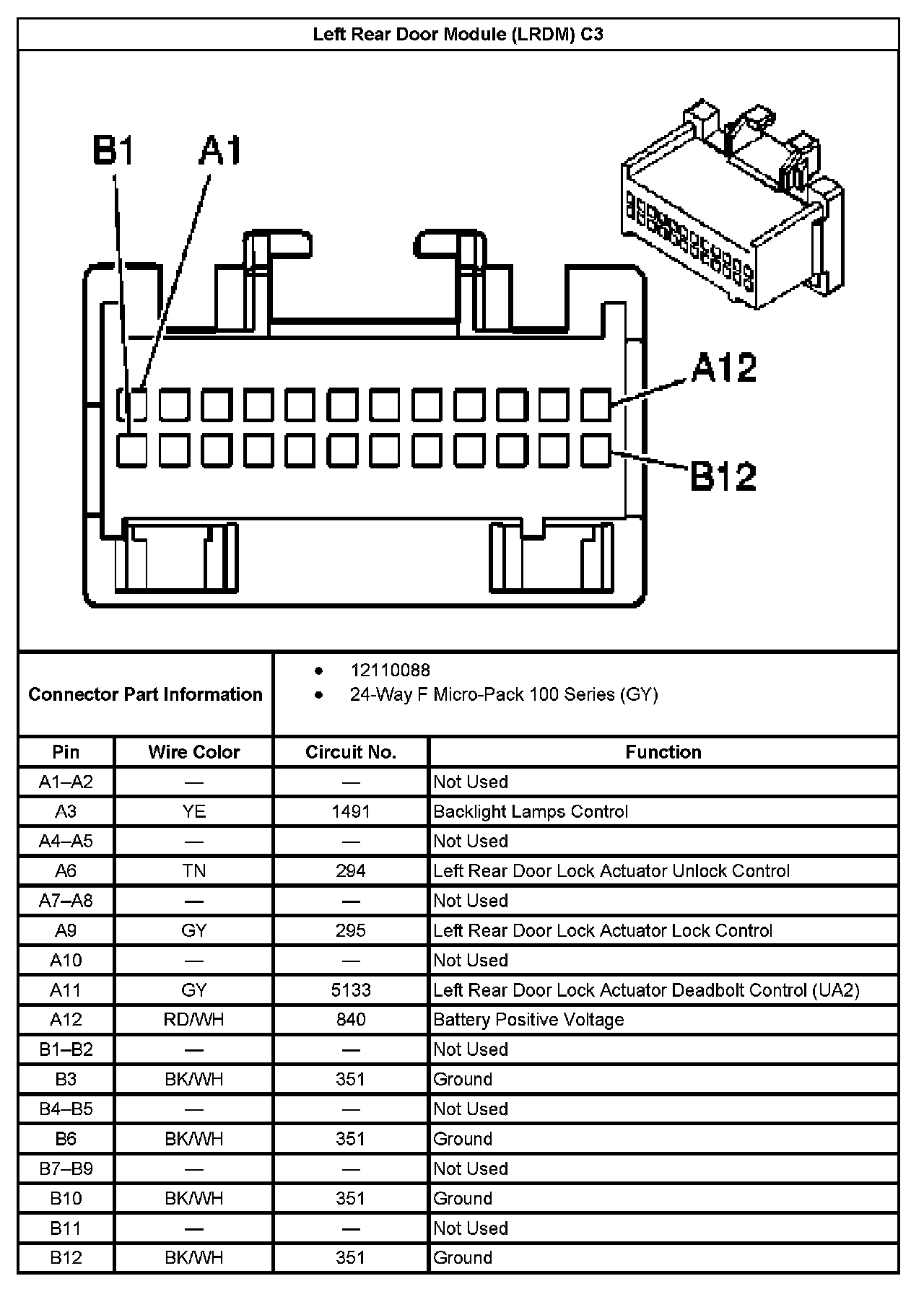

Left Rear Door Module (LRDM) C3:
