Engine Controls Component Views

Fig 1: Engine Controls Component Views - Bank 1

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Intake Manifold Runner Control (IMRC) Solenoid
2	Ignition Coil 5
3	Evaporative Emission (EVAP) Canister Purge Solenoid Valve
4	Ignition Coil 3
5	Ignition Coil 1
6	Throttle Body Assembly
7	Knock Sensor (KS) - Bank 1
8	Crankshaft Position (CKP) Sensor
9	Engine Block Heater Assembly

Fig 2: Engine Controls Component Views - Bank 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Coil 2
2	Ignition Coil 4
3	Ignition Coil 6
4	Barometric Pressure (BARO) Sensor
5	Intake Manifold Runner Control (IMRC) Solenoid
6	Engine Coolant Temperature (ECT) Sensor
7	Knock Sensor (KS) - Bank 2
8	Engine Oil Level/Temperature Sensor
9	Engine Oil Pressure (EOP) Sensor

Fig 3: Camshaft Position (CMP) Sensors and Camshaft Actuator Solenoids Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Camshaft Position (CMP) Sensor - Exhaust Bank 1
2	Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 1
3	Camshaft Position (CMP) Actuator Solenoid - Intake Bank 1
4	Camshaft Position (CMP) Sensor - Intake Bank 1
5	Camshaft Position (CMP) Sensor - Intake Bank 2
6	Camshaft Position (CMP) Actuator Solenoid - Intake Bank 2
7	Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 2
8	Camshaft Position (CMP) Sensor - Exhaust Bank 2

Fig 4: LF of Engine Compartment Component Views (LY7)

Courtesy of GENERAL MOTORS CORP.

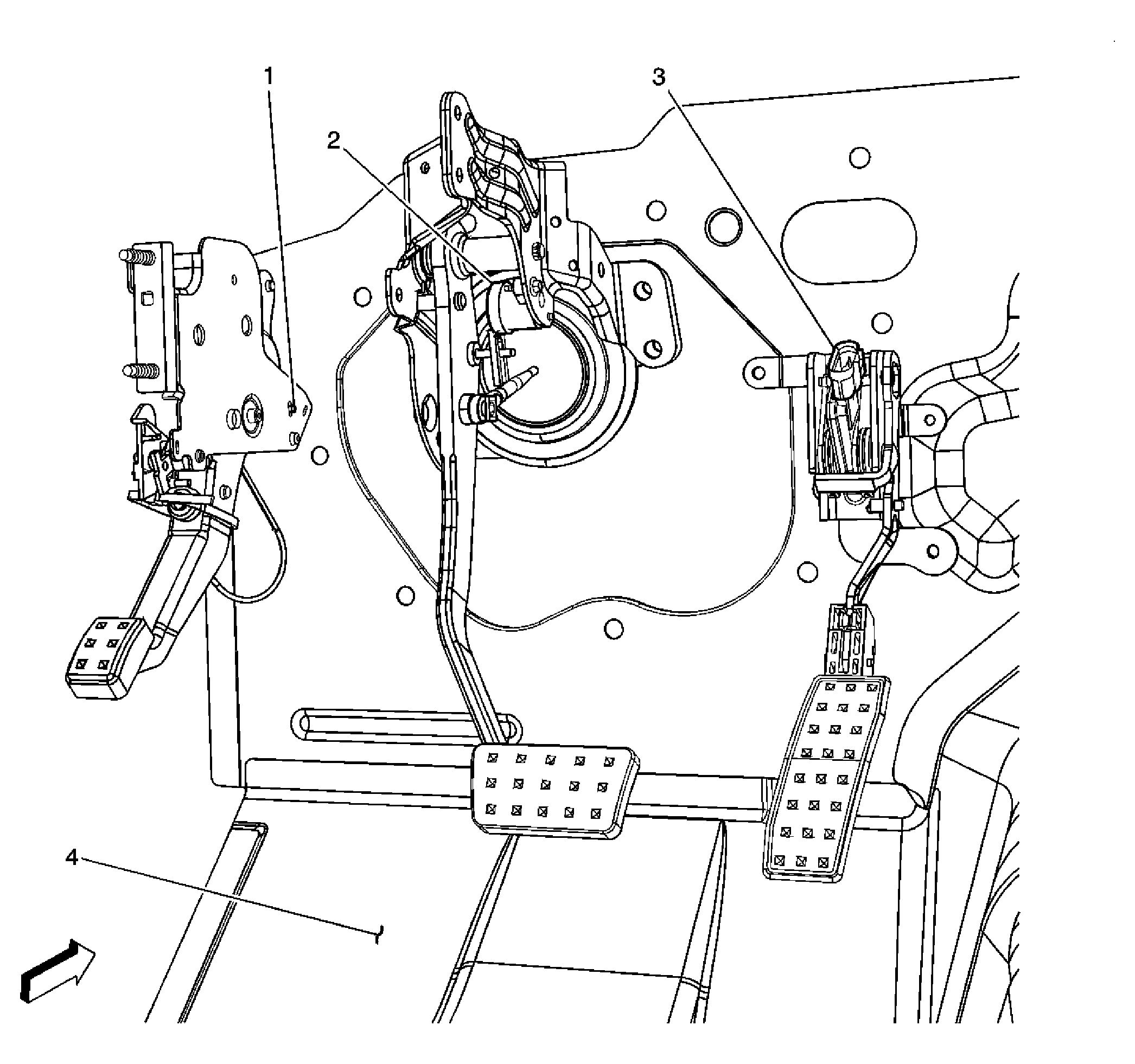

Fig 5: Pedal Switches & Sensors Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch
2	Brake Pedal Position Sensor
3	Accelerator Pedal Position (APP) Sensor
4	Left Front Floor Panel

Fig 6: Heated Oxygen Sensors Component Views (HO2S)

Courtesy of GENERAL MOTORS CORP.

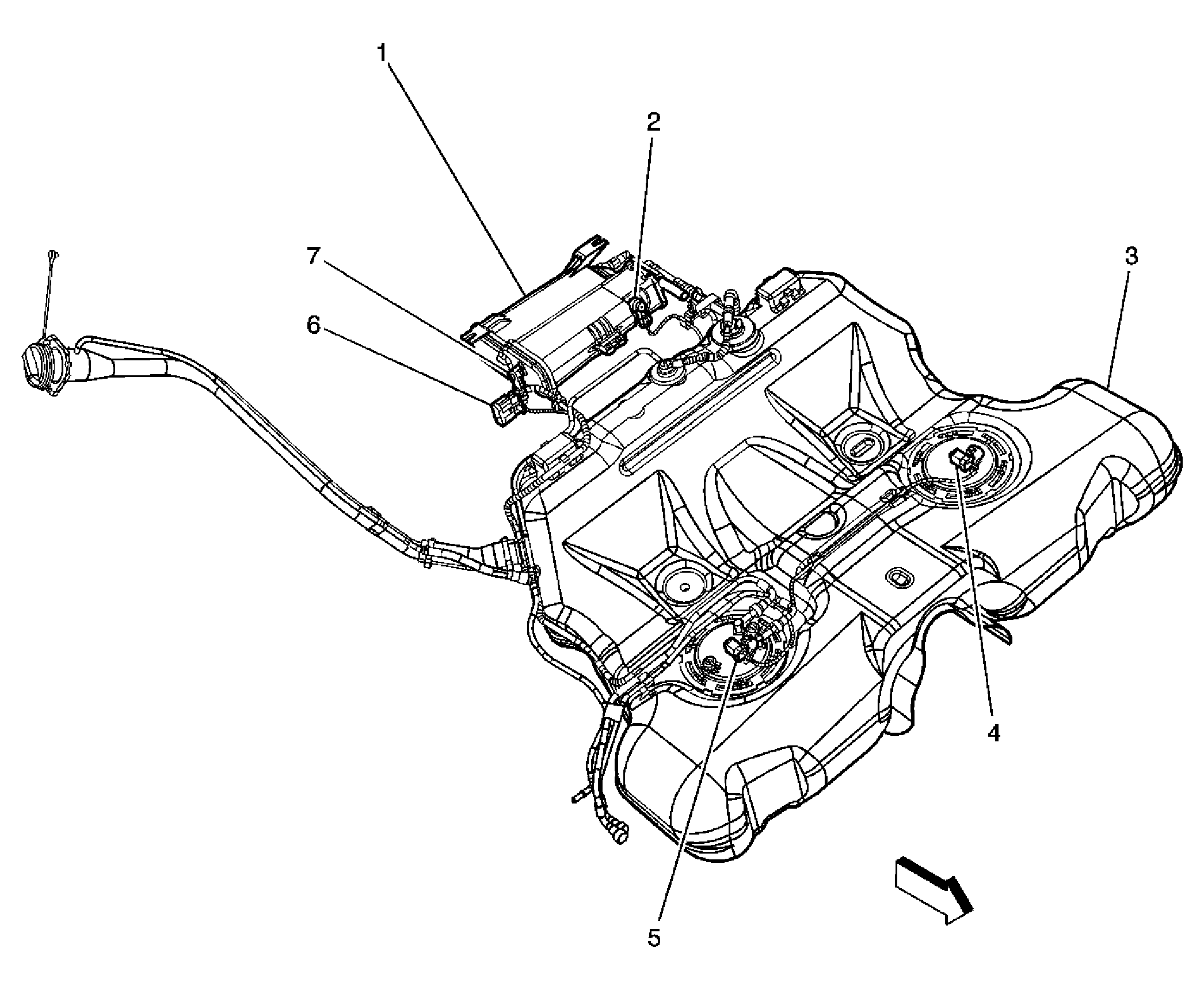

Fig 7: Fuel Tank Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	EVAP Canister
2	Evaporative Emissions (EVAP) Canister Vent Solenoid (LY7/LH2)
3	Fuel Tank
4	Secondary Fuel Sender Assembly
5	Fuel Pump and Sender Assembly (LY7/LH2)
6	C420
7	Fuel Tank Pressure (FTP) Sensor (LY7/LH2)

Fig 8: Fuel Injectors Component Views

Courtesy of GENERAL MOTORS CORP.

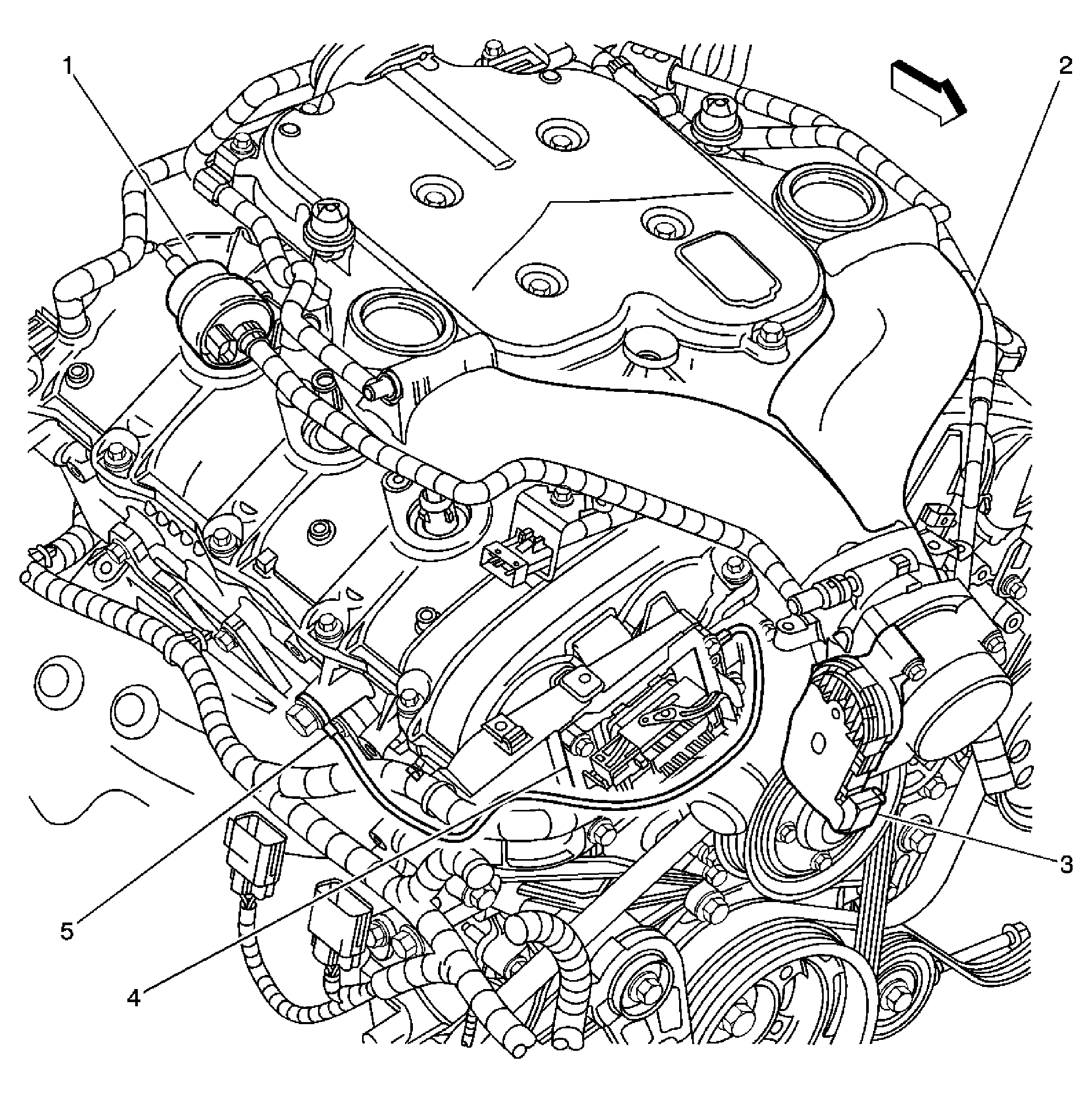

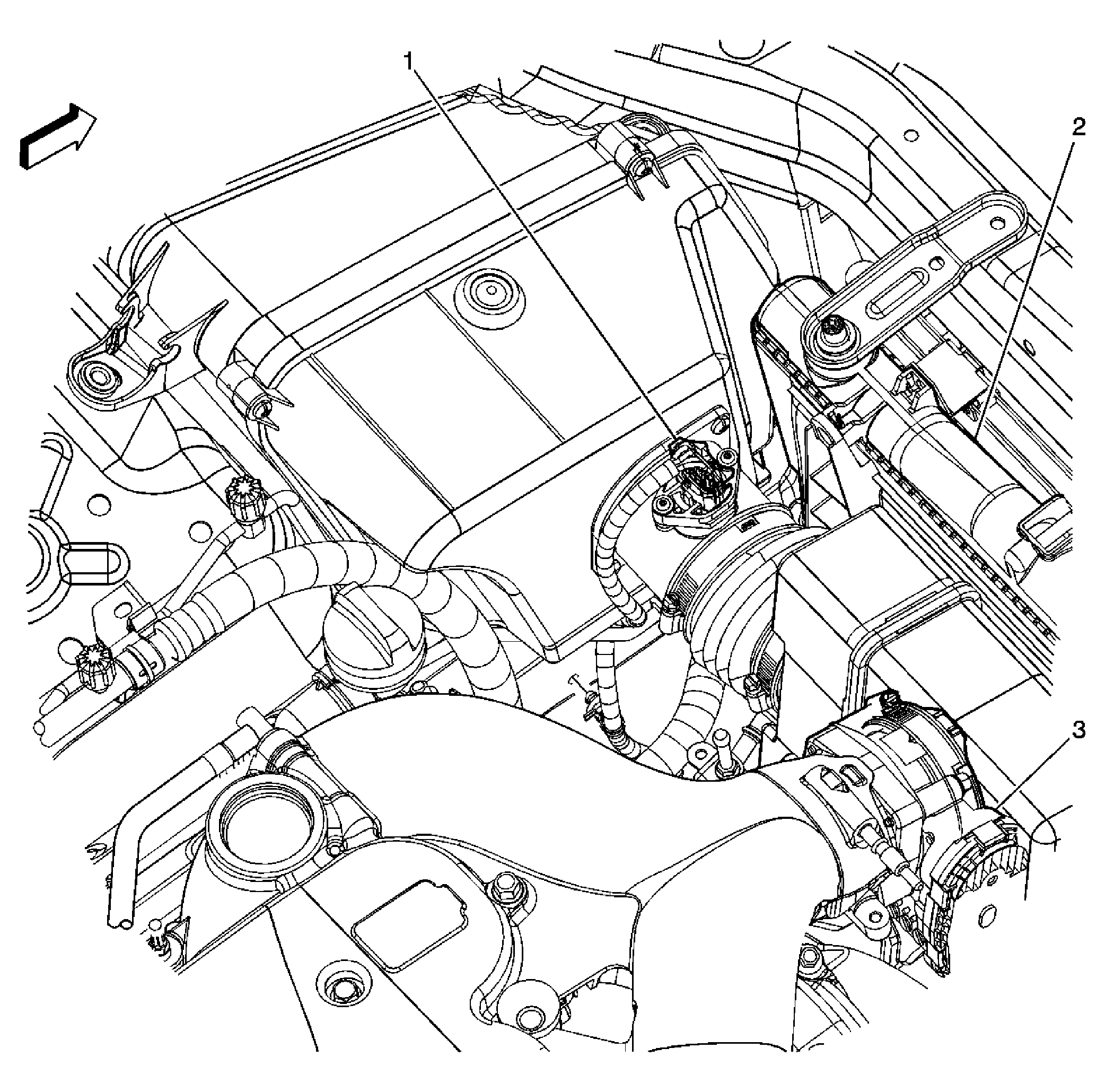

Fig 9: Upper Right Side of Engine Component Views (LY7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Evaporative Emission (EVAP) Canister Purge Solenoid Valve
2	Intake Manifold
3	Throttle Actuator Control (TAC) Motor
4	Engine Control Module (ECM)
5	G103
