Control Assembly, HVAC

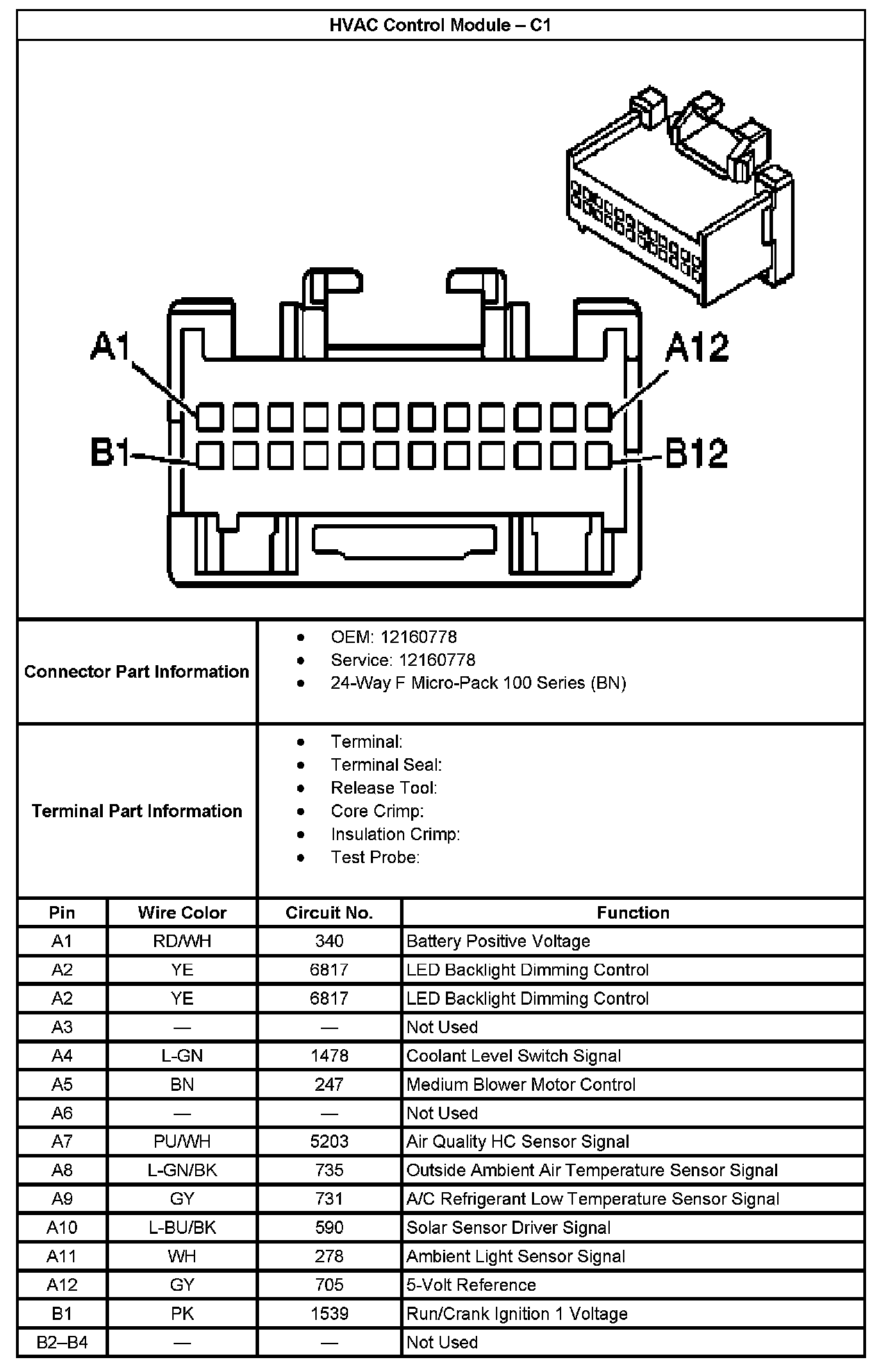

HVAC Control Module - C1 Part 1:

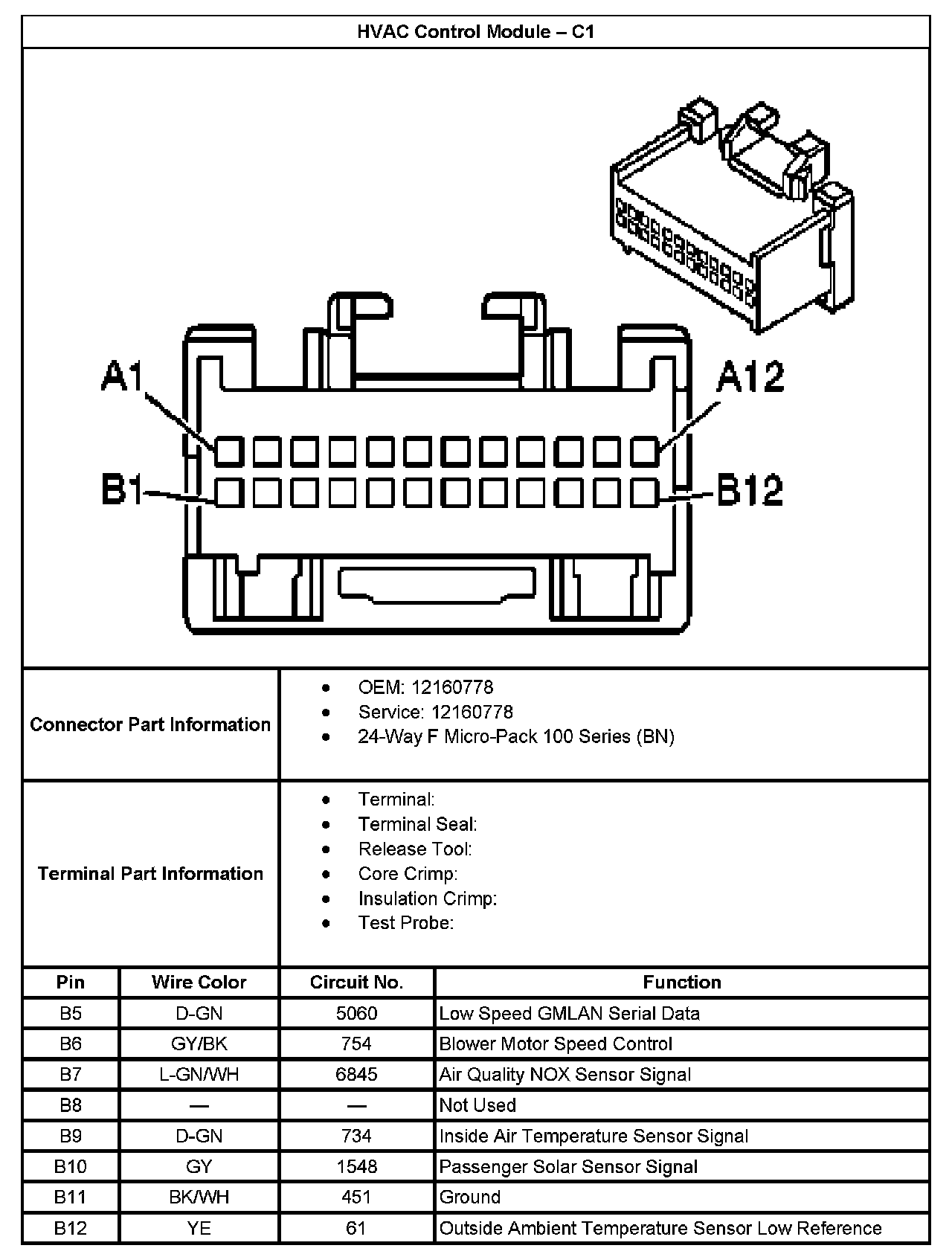

HVAC Control Module - C1 Part 2:

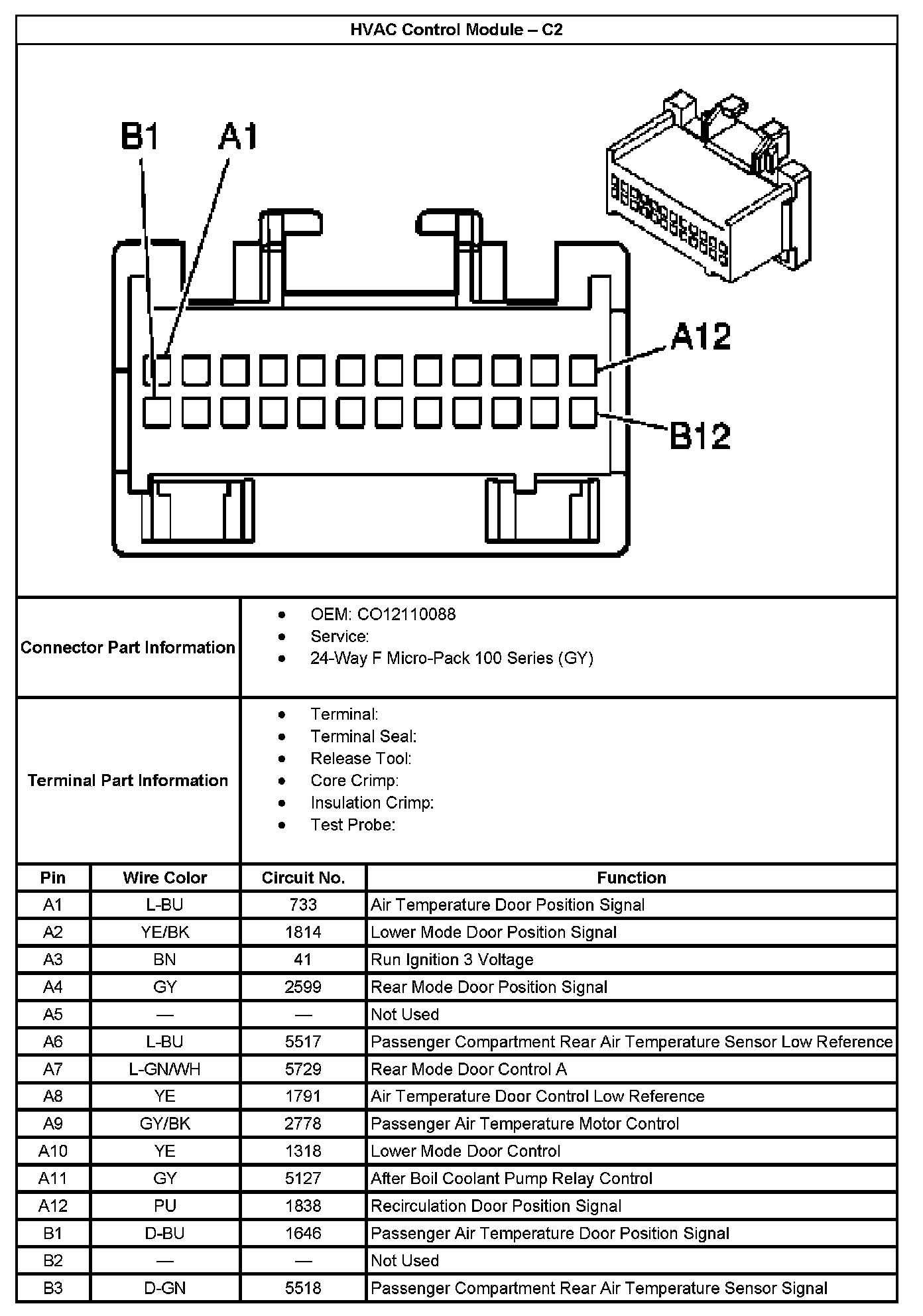

HVAC Control Module - C2 Part 1:

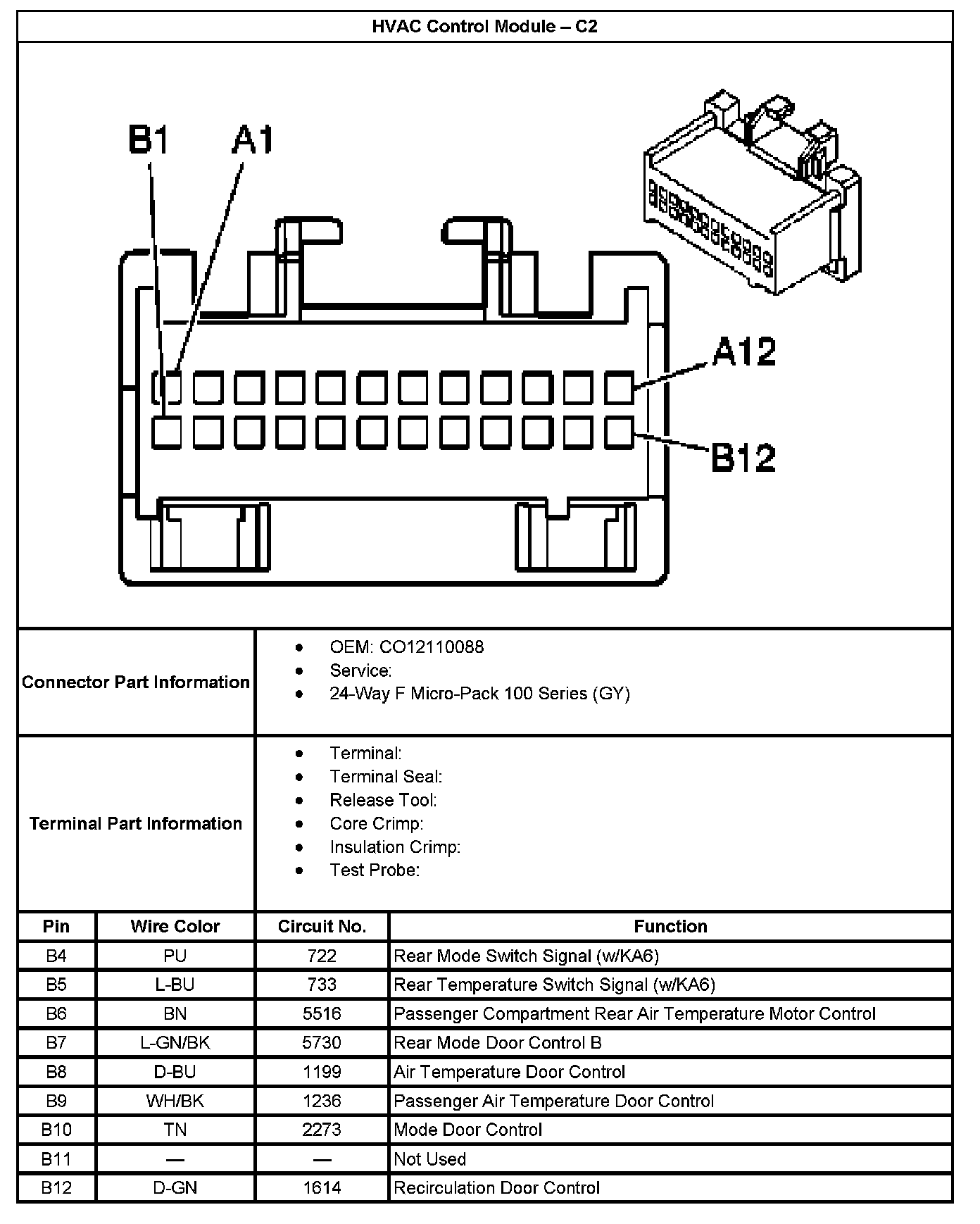

HVAC Control Module - C2 Part 2:

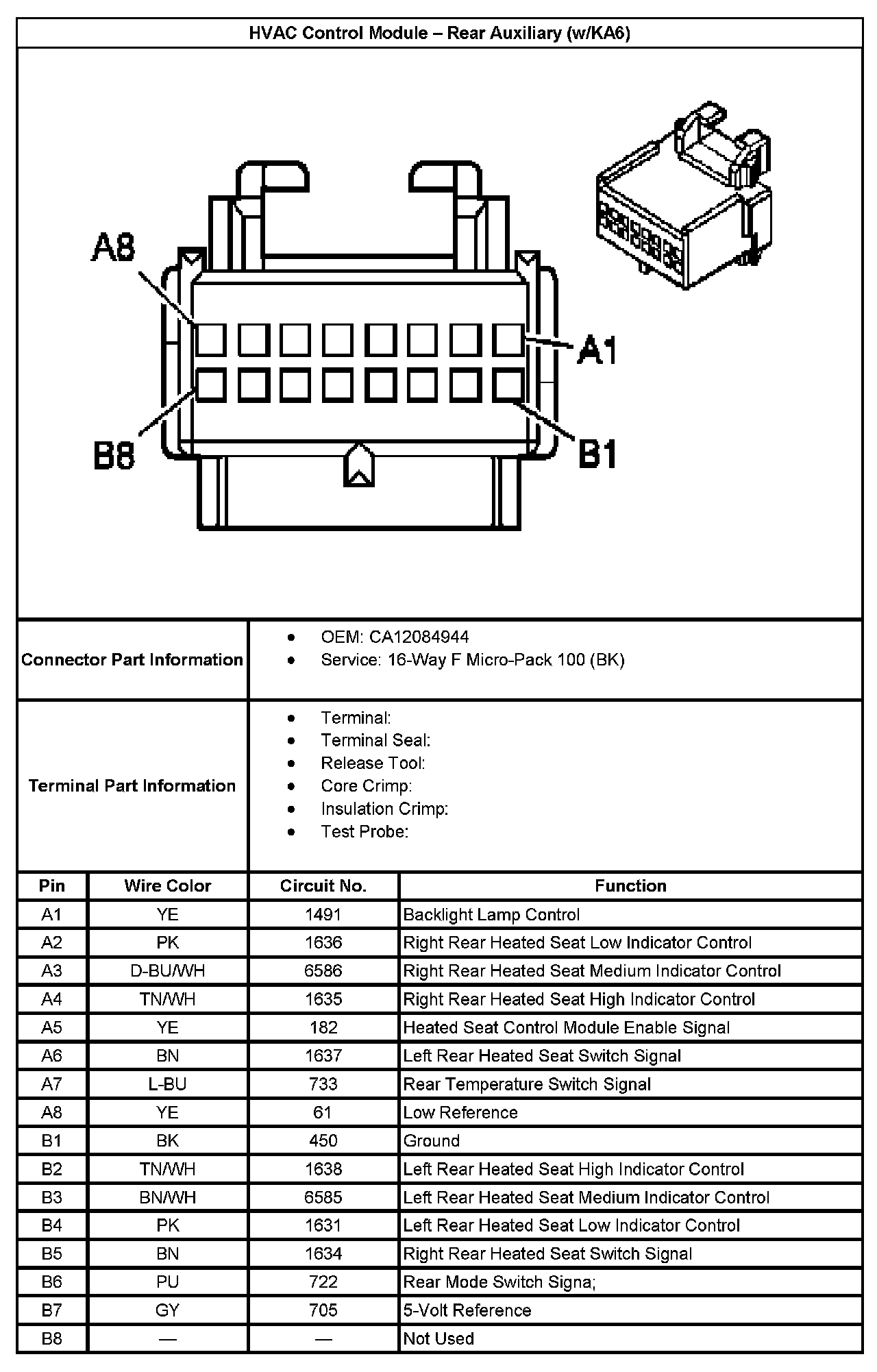

HVAC Control Module - Rear Auxiliary (With RPO Code KA6):
