Inflatable Restraint Front End Sensor

Inflatable Restraint Front End Sensor - Left:

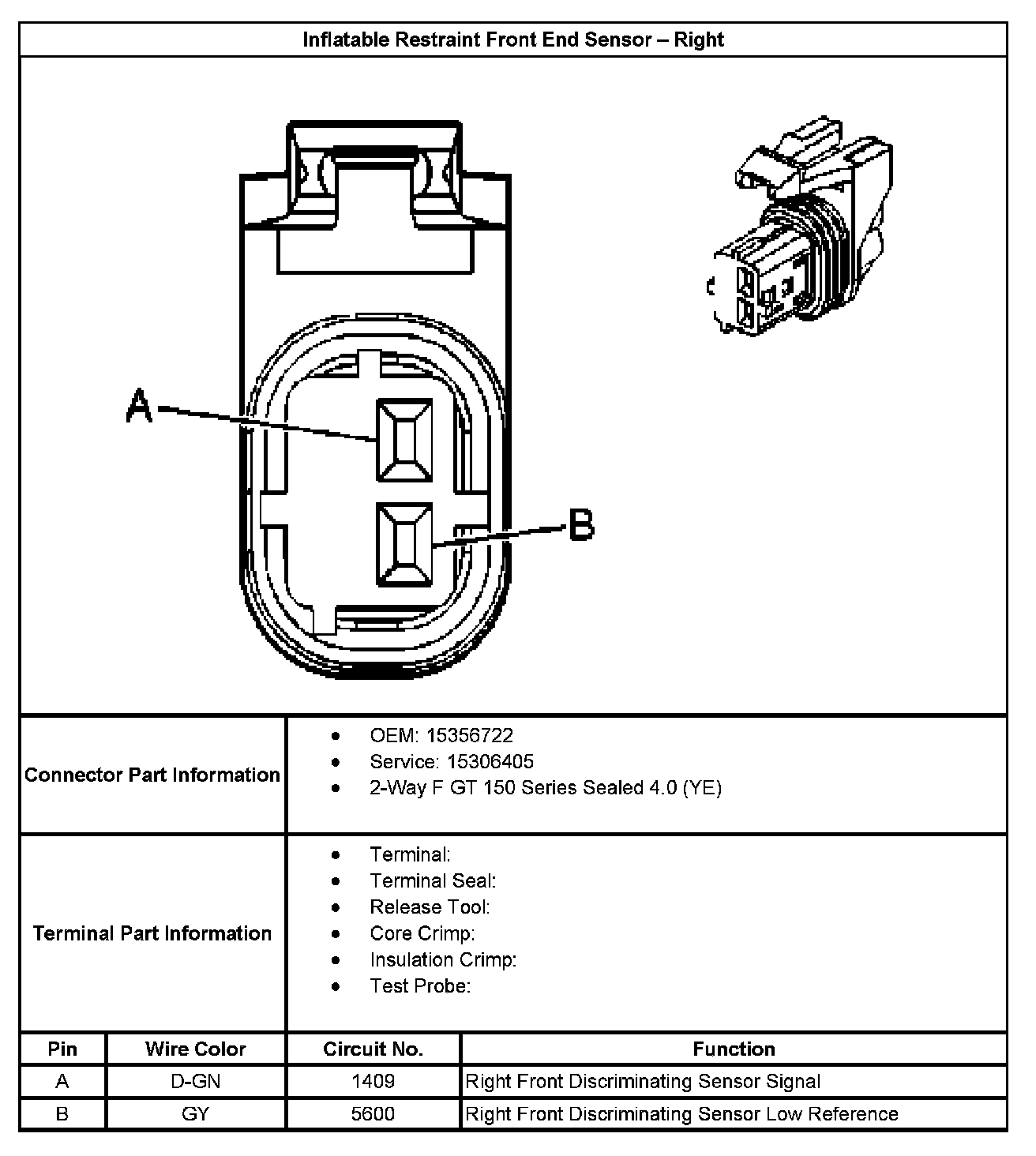

Inflatable Restraint Front End Sensor - Right:
