Thread Repair Specifications

Left Cylinder Head Camshaft Cover Face:

Left Cylinder Head Front Face:

Left Cylinder Head Intake Face:

Left Cylinder Head Exhaust Face:

Left Cylinder Head Rear Face:

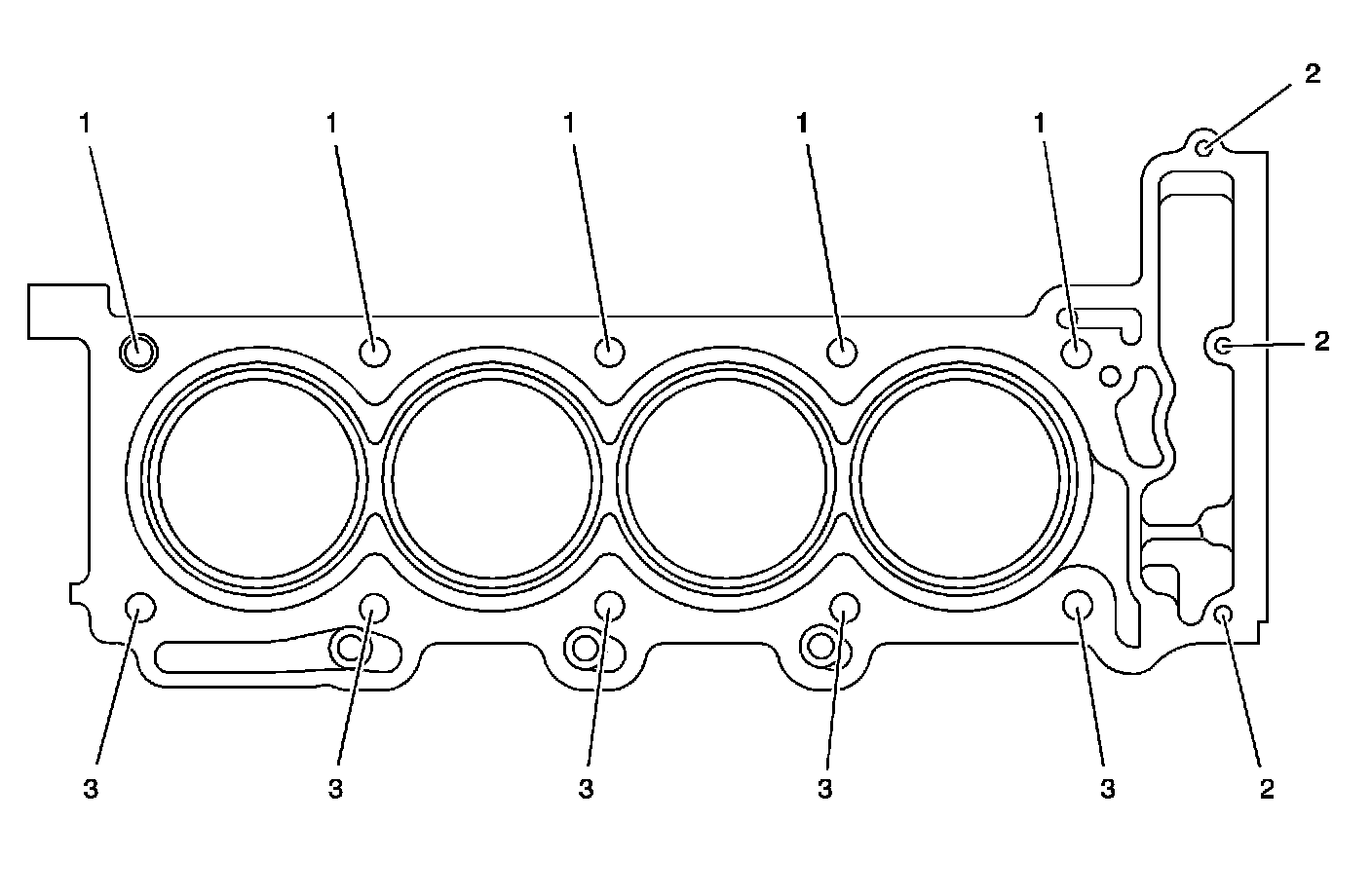

Right Cylinder Head Camshaft Cover Face:

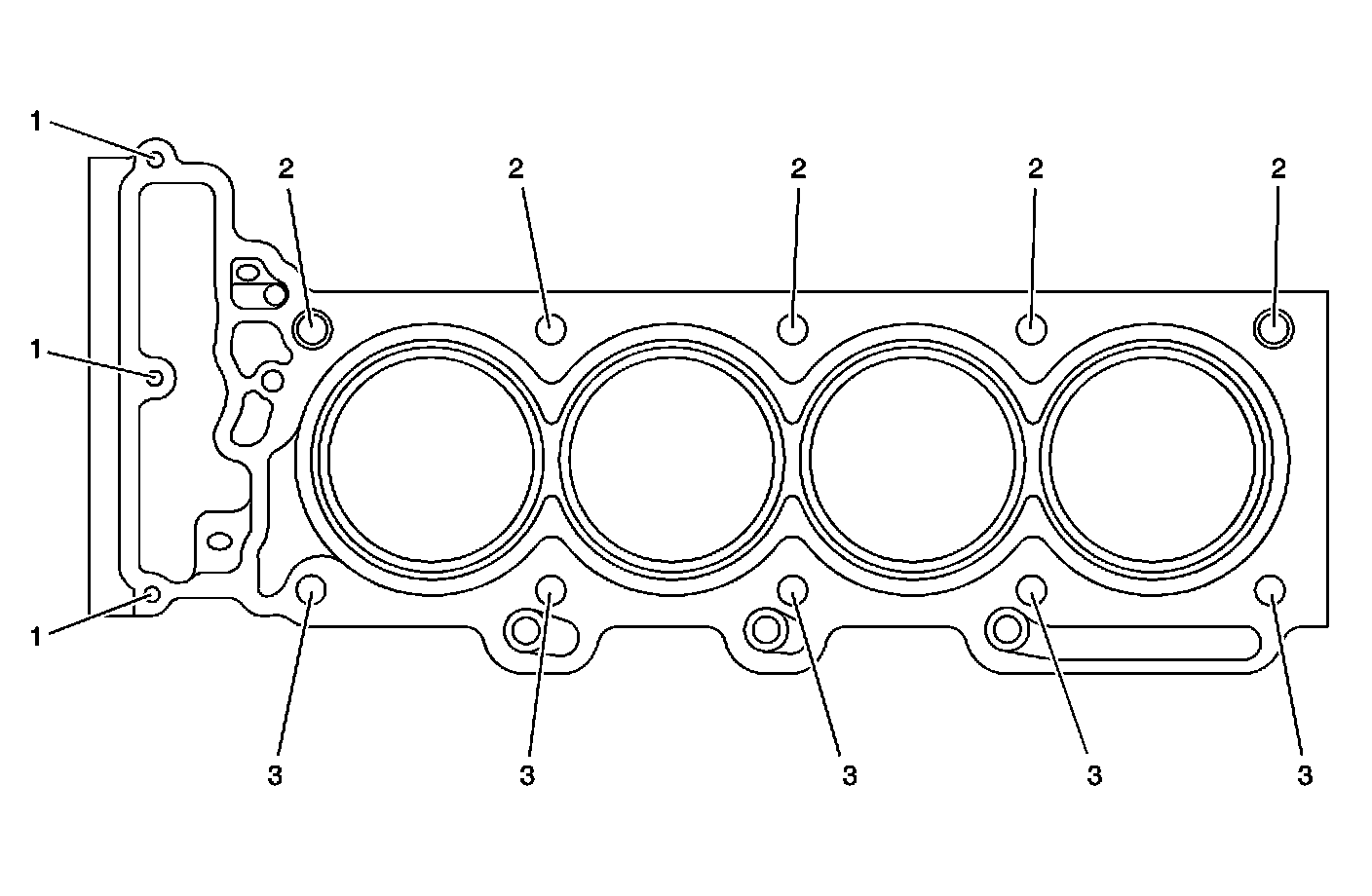

Right Cylinder Head Front Face:

Right Cylinder Head Intake Face:

Right Cylinder Head Exhaust Face:

Right Cylinder Head Rear Face:

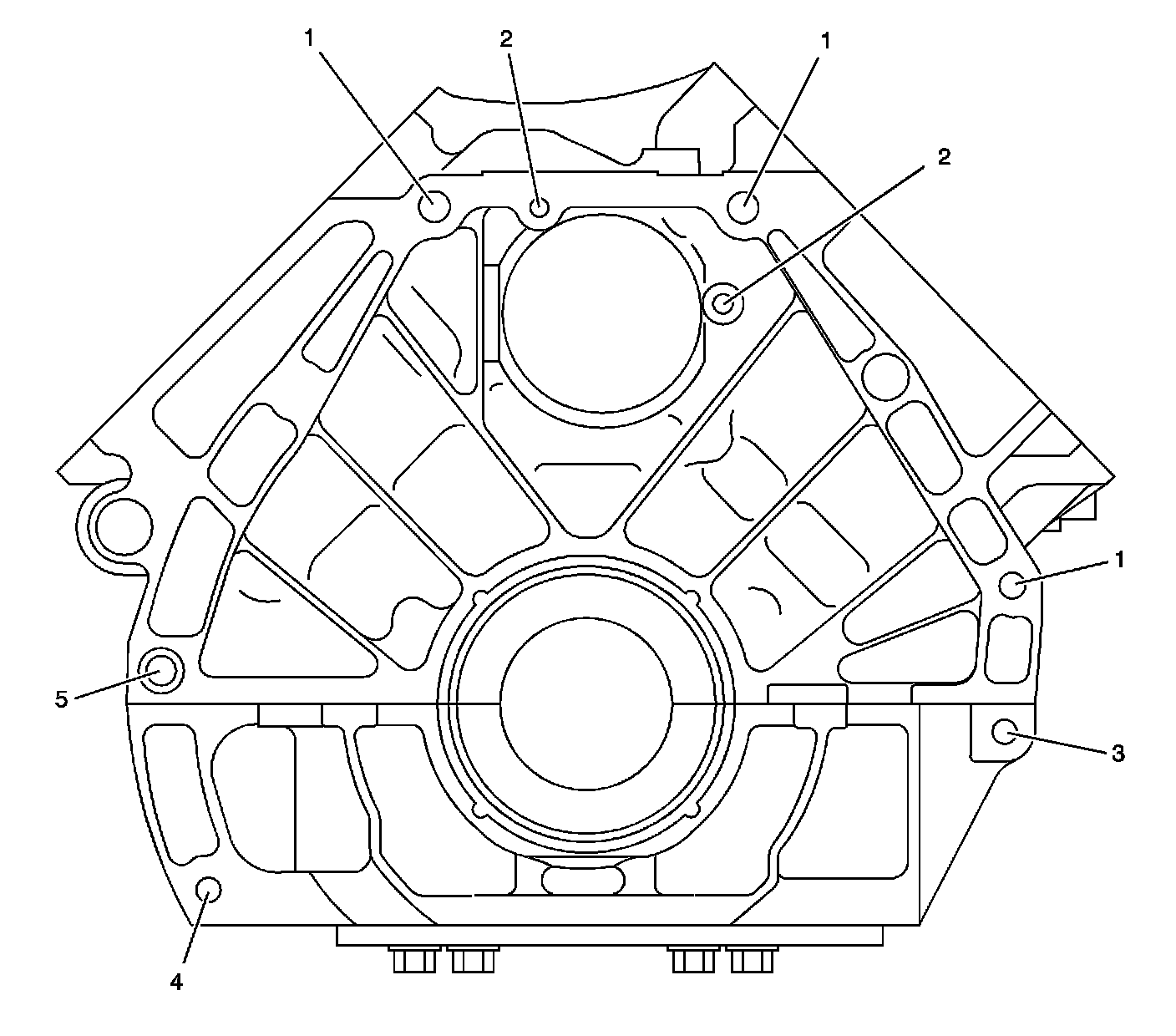

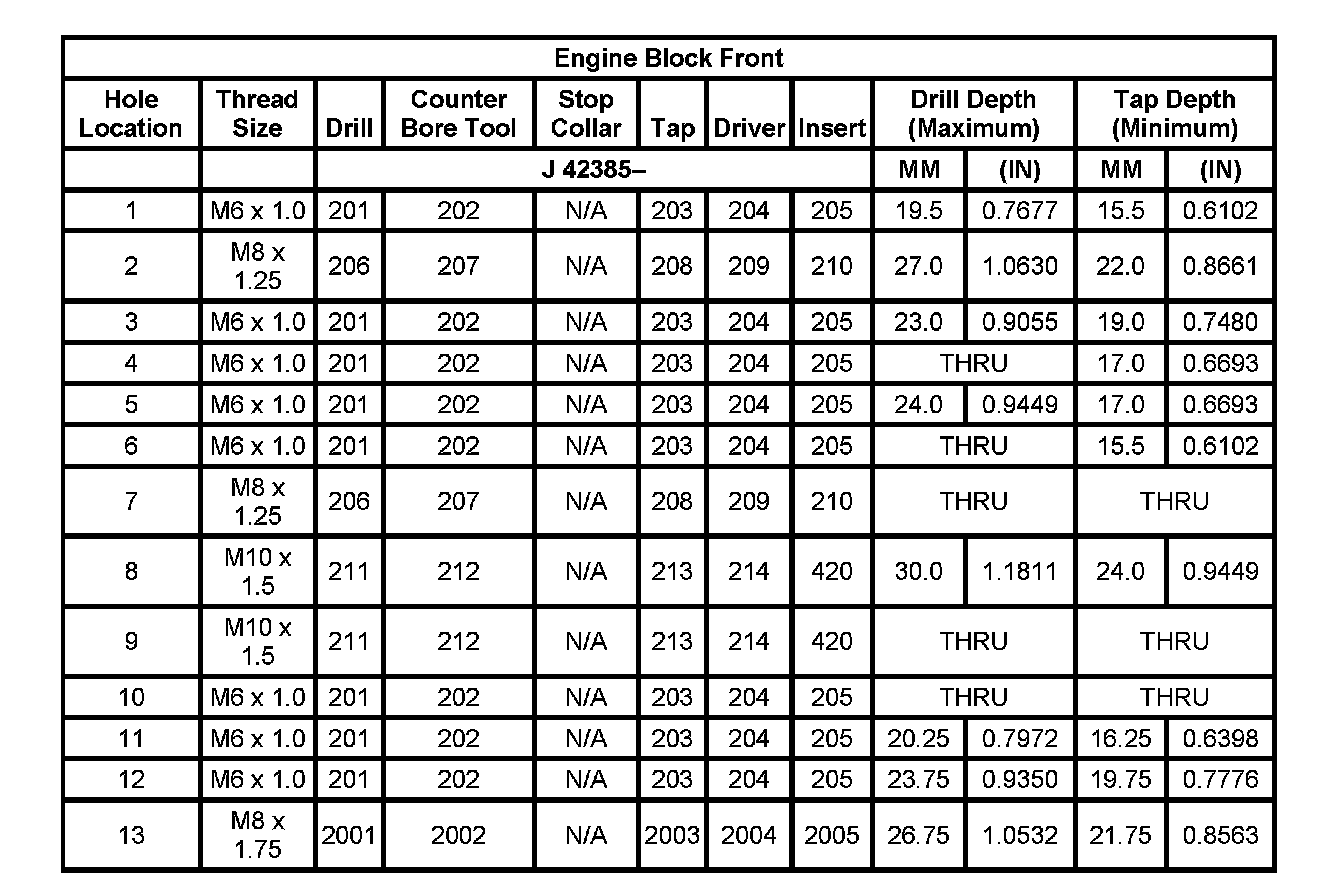

Engine Block Front:

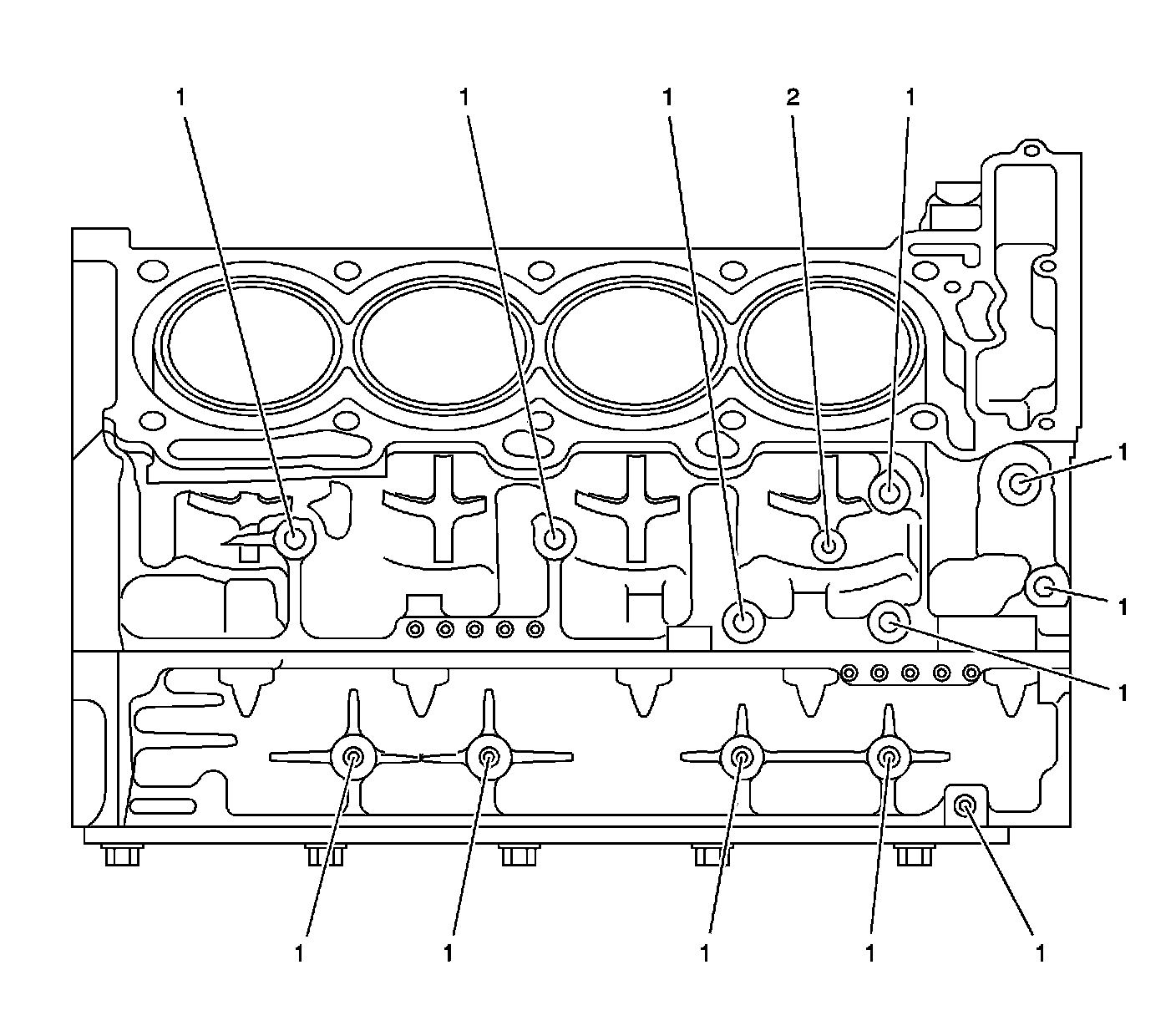

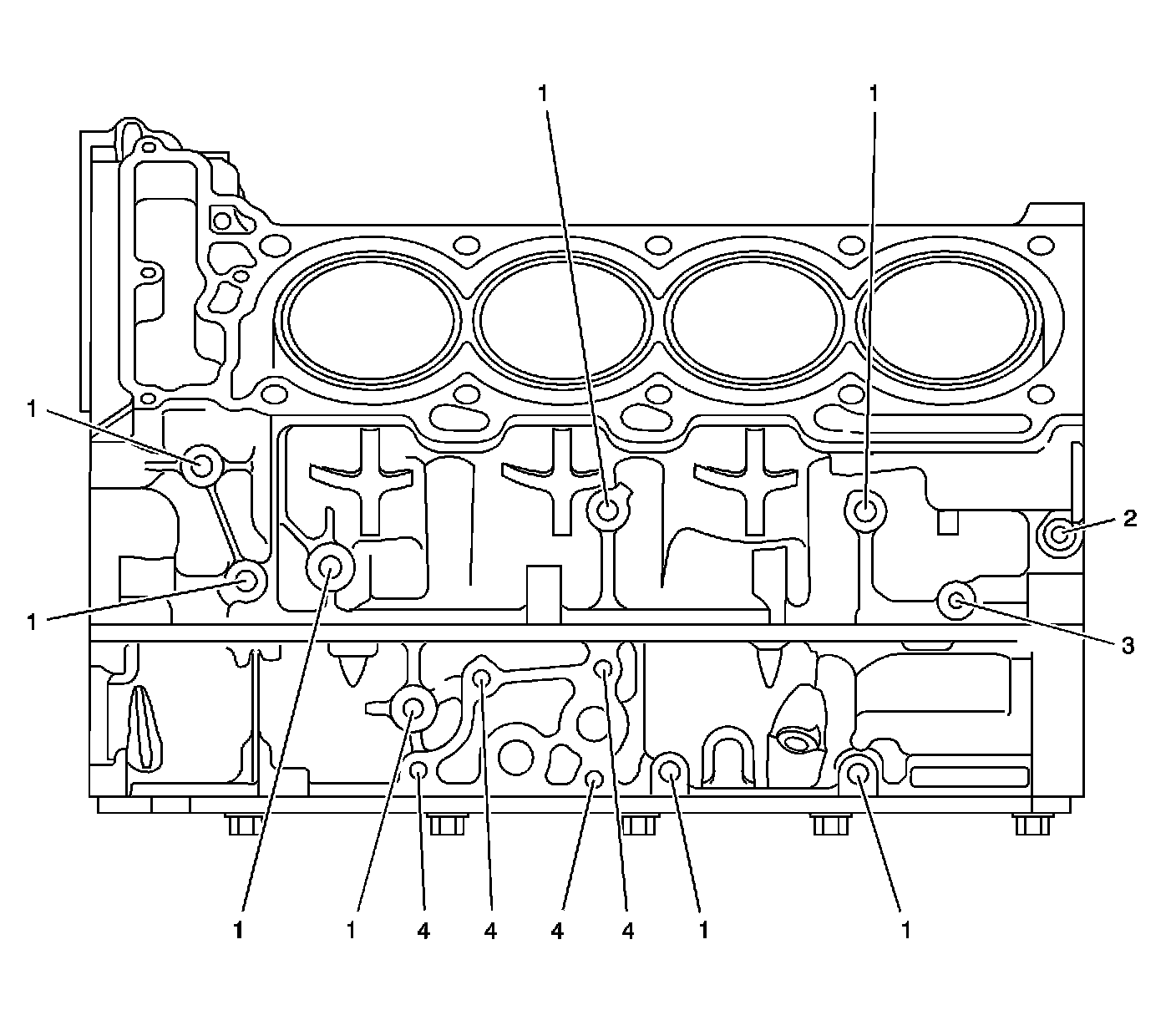

Engine Block Left Side:

Engine Block Right Side:

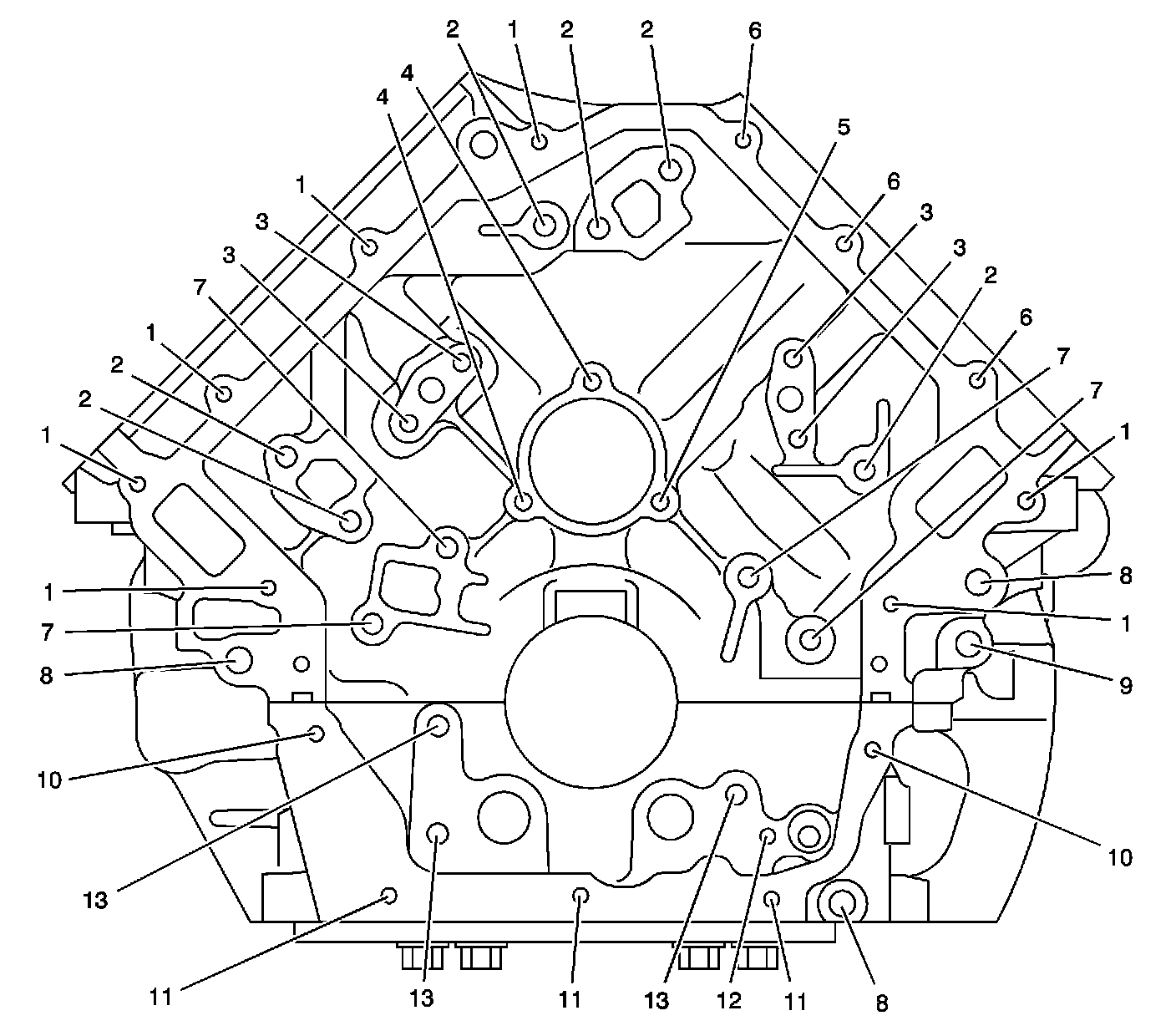

Engine Block Rear:

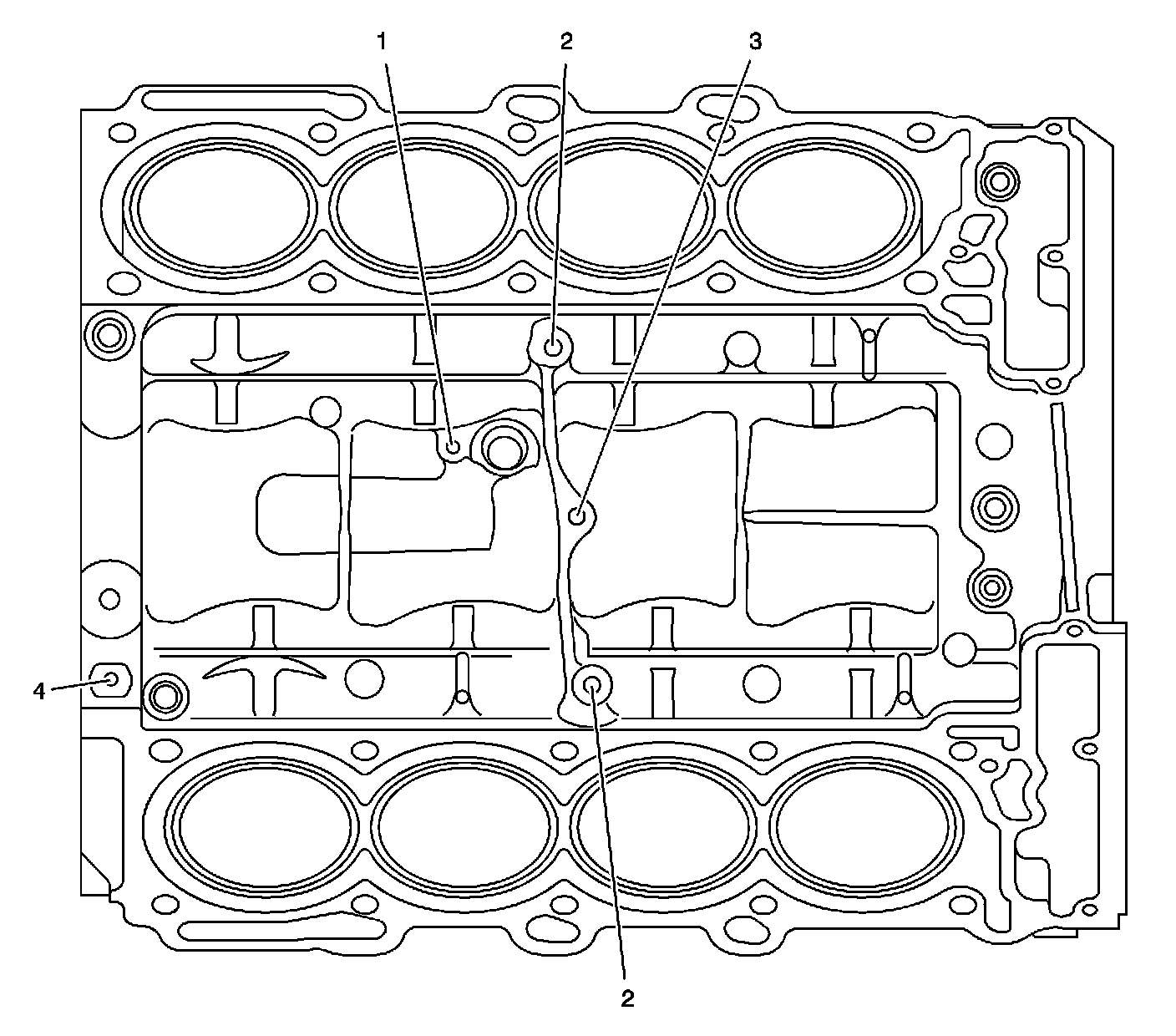

Engine Block Top:

Engine Block Left Deck Face:

Engine Block Right Deck Face:

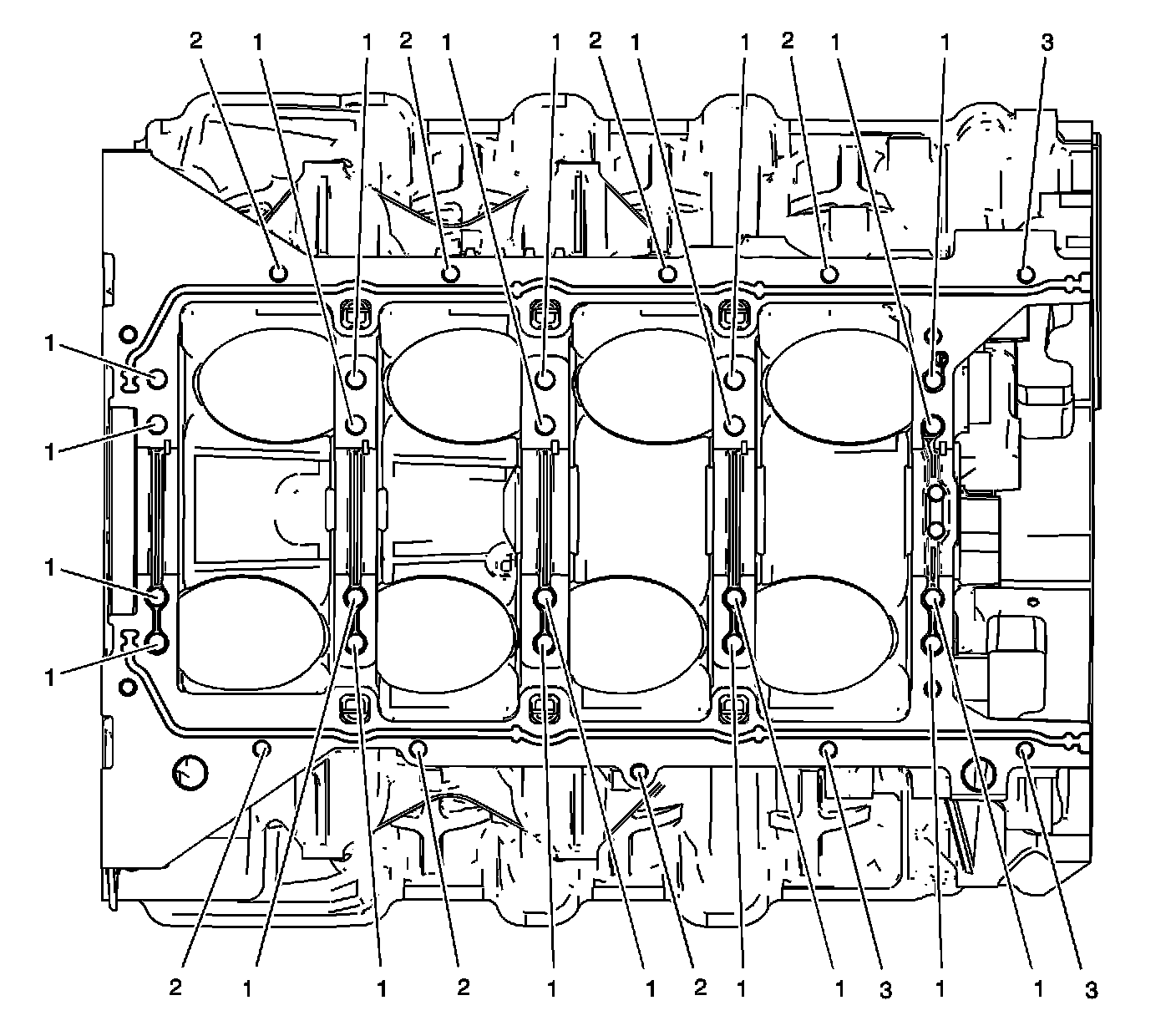

Engine Block Lower Face:

Lower Crankcase Pan Face:

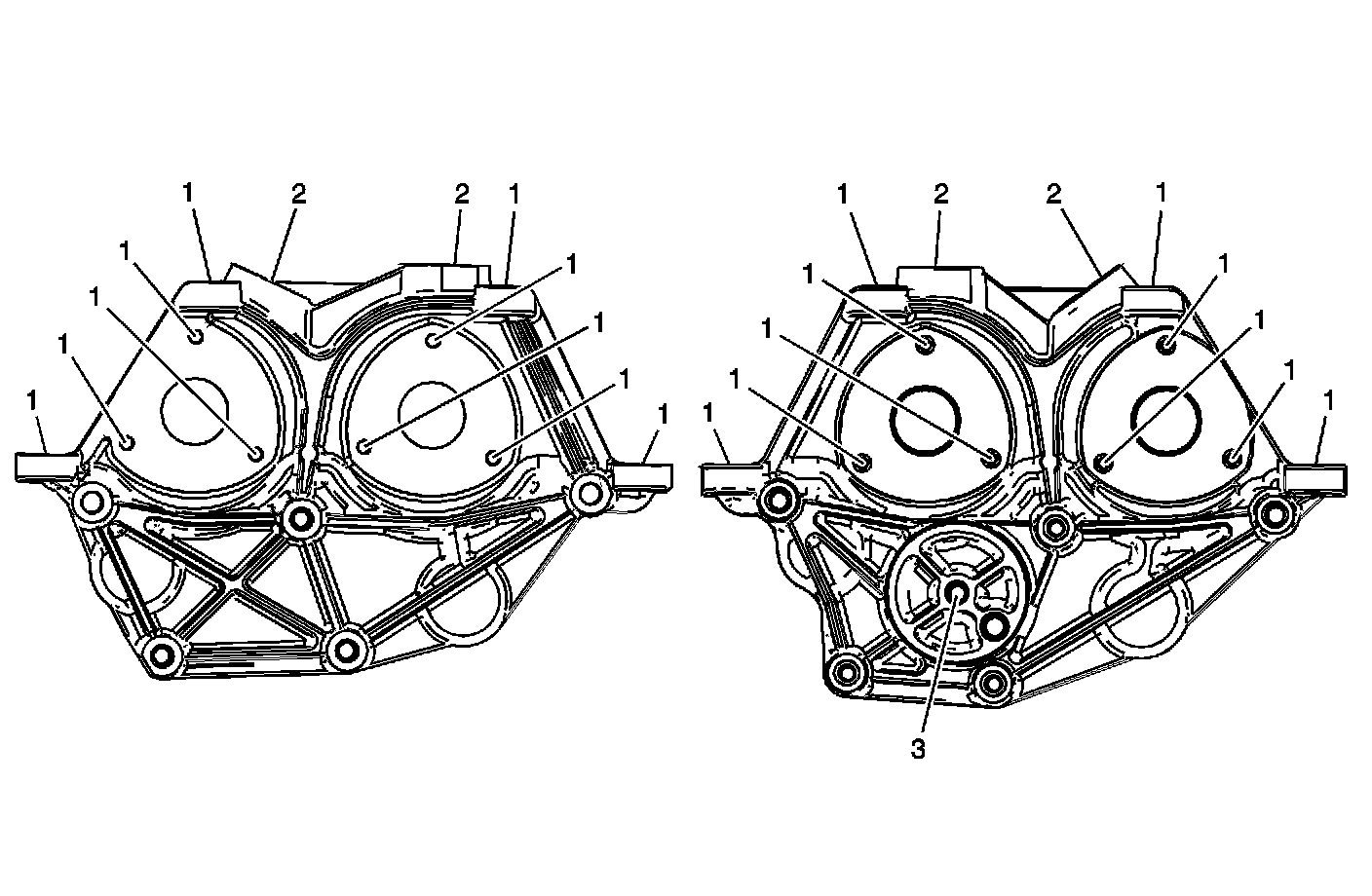

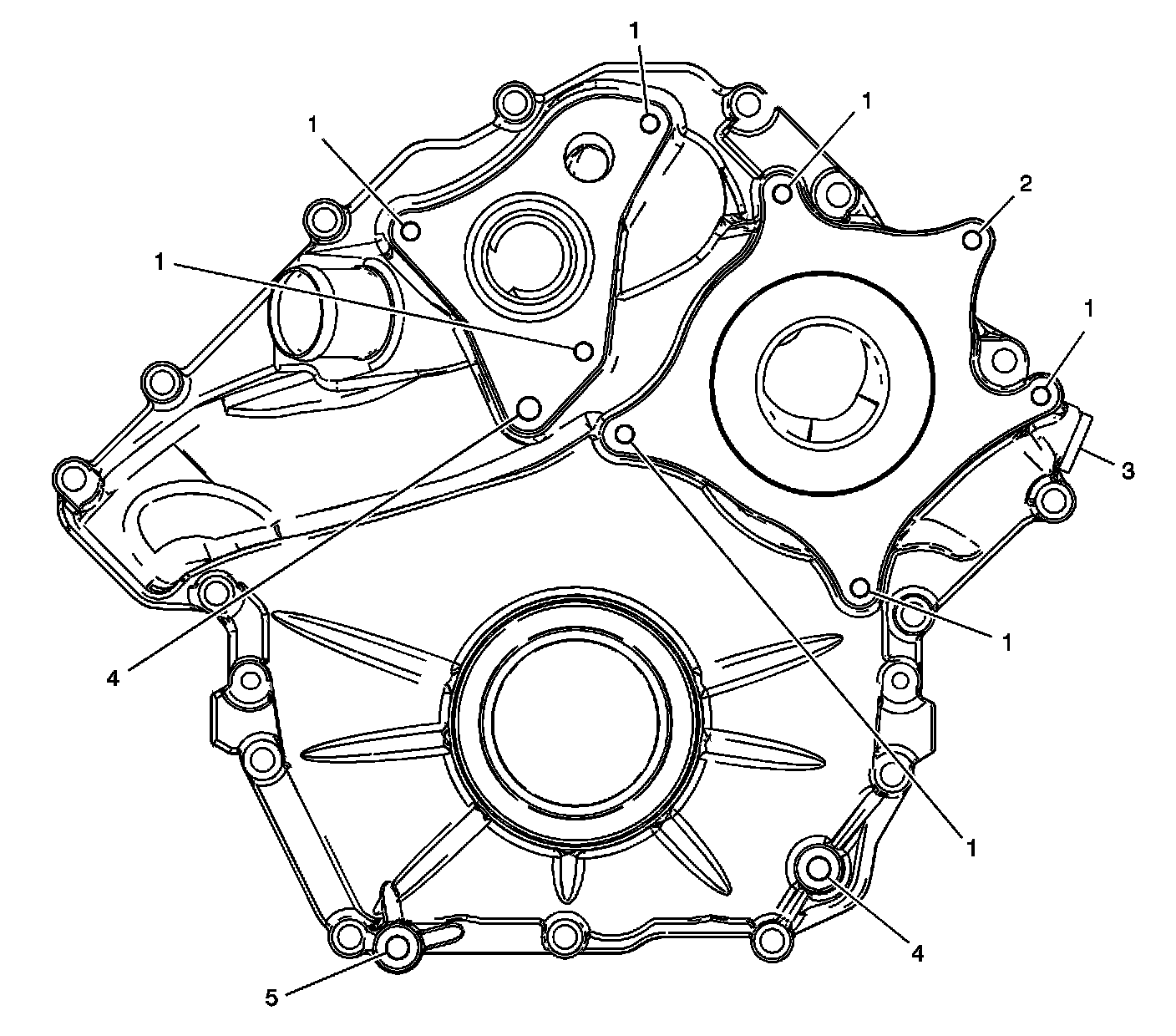

Engine Front Cover:

Camshaft Position Actuator Housing:

Camshaft Covers:

Oil Pan Left:

Oil Pan Right:

Oil Pan - Rear:

Oil Pan Bottom:
