Keyless Entry Connector End Views

Keyless Entry Antenna - Back-up Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		OEM: 12162017 Service: 12101937 2-Way F Metri-Pack 150 Series (GY)
Pin	Wire Color	Circuit No.	Function
A	OG	5708	Keyless Entry Antenna - Back Up Signal
B	OG/BK	5712	Keyless Entry Antenna - Back Up Low Reference

Keyless Entry Antenna - Left Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		OEM: 12162017 Service: 12101937 2-Way F Metri-Pack 150 Series (GY)
Pin	Wire Color	Circuit No.	Function
A	PU	218	Keyless Entry Antenna - Left Signal
B	TN	219	Keyless Entry Antenna - Left Low Reference

Keyless Entry Antenna - Rear Compartment Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		OEM: 12162017 Service: 12101937 2-Way F Metri-Pack 150 Series (GY)
Pin	Wire Color	Circuit No.	Function
A	PK	5709	Keyless Entry Antenna - Rear Compartment Signal
B	PK/BK	5713	Keyless Entry Antenna - Rear Compartment Low Reference

Keyless Entry Antenna - Right Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		OEM: 12162017 Service: 12101937 2-Way F Metri-Pack 150 Series (GY)
Pin	Wire Color	Circuit No.	Function
A	L-GN	5707	Keyless Entry Antenna - Right Signal
B	L-GN/BK	5711	Keyless Entry Antenna - Right Low Reference

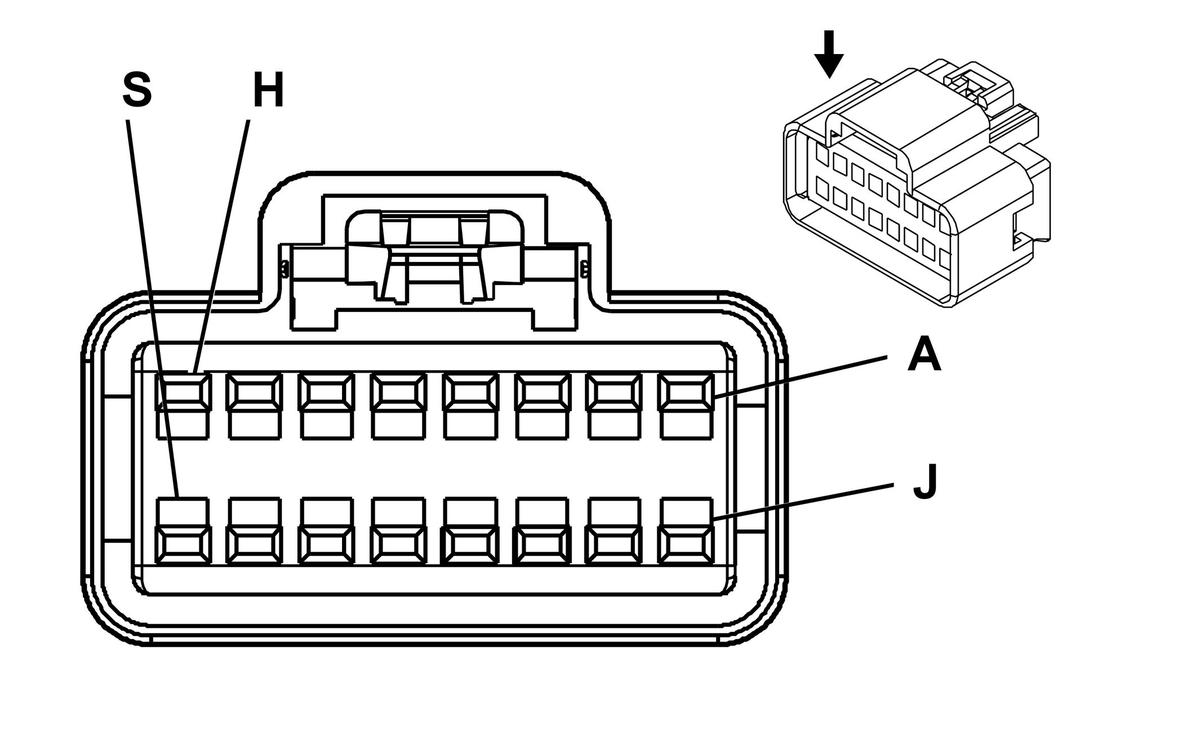

Remote Control Door Lock Receiver (RCDLR) C1 Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		OEM: 15332177 Service: 15332177 16-Way F GT 150 Series (BK)
Pin	Wire Color	Circuit No.	Function
A	D-BU	5876	Passenger Door Lock Actuator Lock Control
B	L-GN/BK	5703	Driver Door Lock Actuator Lock Control
C	PK	3	Ignition 1 Voltage
D	D-GN/WH	1135	A/T Shift Lock Control Solenoid Supply Voltage
E	OG	5880	Left Front Interior Door Handle Switch Signal
F	PU	5877	Right Front Interior Door Handle Switch Signal
G	L-BU/WH	5725	Ignition Mode Switch Data Signal
H	RD/WH	2440	Battery Positive Voltage
J	L-BU	5726	Ignition Mode Switch Ground
K	-	-	Not Used
L	PK	1045	RFA Class 2 Serial Data
M	-	-	Not Used
N	L-BU	395	Right Front Exterior Door Handle Switch Signal
P	TN	1576	Trunk Release Switch Signal
R	L-GN/BK	394	Left Front Exterior Door Handle Switch Signal
S	BK/WH	851	Ground

Remote Control Door Lock Receiver (RCDLR) C2 Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		OEM: 15332153 Service: 88986440 10-Way F GT 150 Series (BK)
Pin	Wire Color	Circuit No.	Function
A	OG	5708	Keyless Entry Antenna - Back Up Signal
B	TN	219	Keyless Entry Antenna Left Low Reference
C	L-GN	5707	Keyless Entry Antenna - Right Signal
D	PK	5709	Keyless Entry Antenna - Rear Compartment Signal
E	-	-	Not Used
F	OG/BK	5712	Keyless Entry Antenna - Back Up Low Reference
G	PU	218	Keyless Entry Antenna Left Signal
H	L-GN/BK	5711	Keyless Entry Antenna - Right Low Reference
J	PK/BK	5713	Keyless Entry Antenna - Rear Compartment Low Reference
K	-	-	Not Used
