Removal Procedure

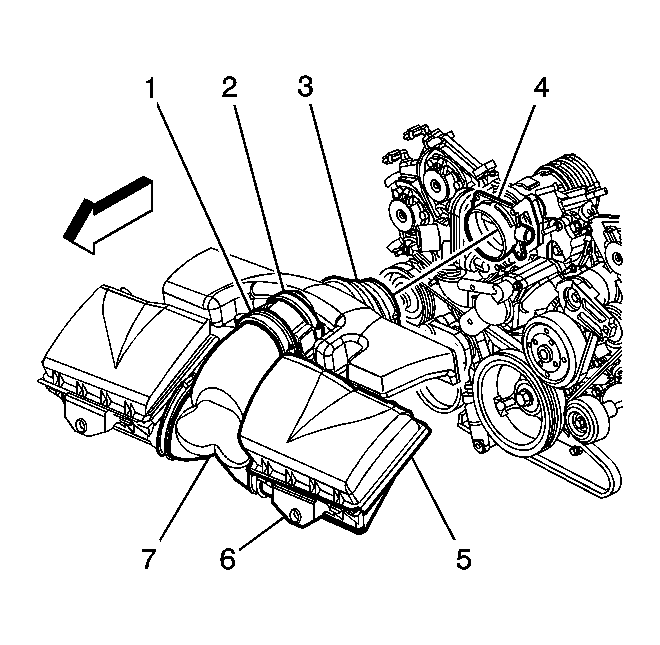

    Fig 1: View Of Air Cleaner Assembly
    GM931697Courtesy of GENERAL MOTORS CORP.
  1. Release the retainer latches.
  2. Release the air cleaner housing cover.
  3. Remove the air filter element.
