Memory Seat Switch Replacement

DRIVER SEAT ADJUSTER MEMORY SWITCH REPLACEMENT

REMOVAL PROCEDURE

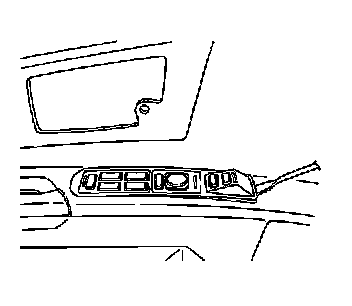

1. Insert a flat - bladed tool under the front edge of the switch to release the retainer from the door trim panel.

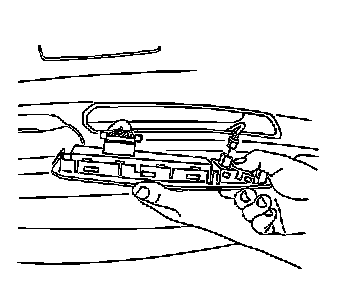

2. Disconnect the electrical connector from the lock switch.

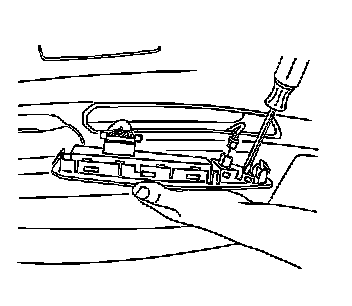

3. Use a flat - bladed tool to disengage the locking tabs from both sides of the switch.
4. Remove the lock switch.

INSTALLATION PROCEDURE




1. Snap the door lock switch into the door switch bezel.
2. Connect the electrical connector.




3. Insert the rear of the door lock switch into the door trim panel.

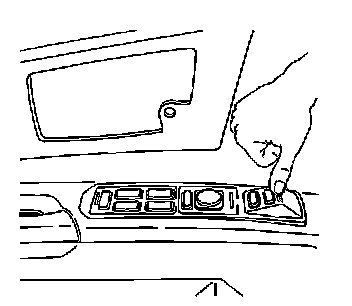

4. Press down on the front of the door lock switch to engage the switch to the door trim panel.
