Transmission Position Sensor/Switch: Diagrams

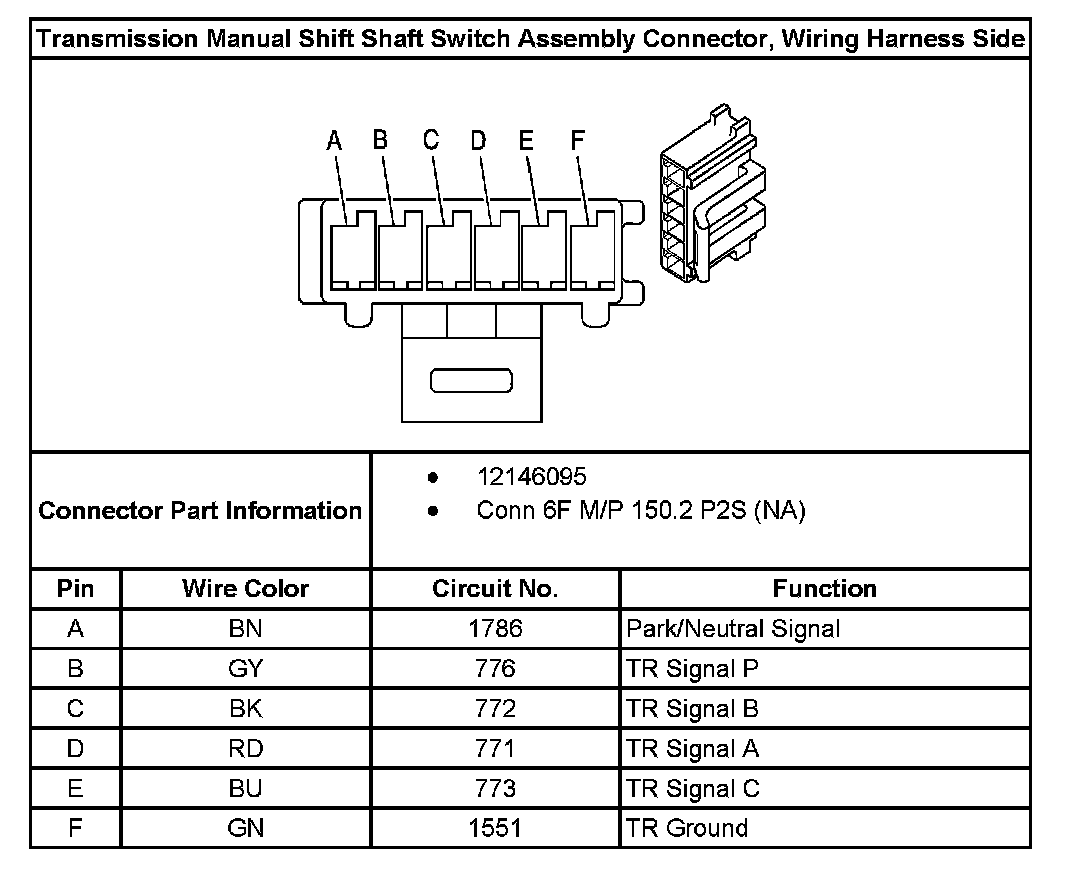

Transmission Manual Shift Shaft Switch Assembly Connector, Wiring Harness Side:
