Vehicle Speed Sensor: Locations

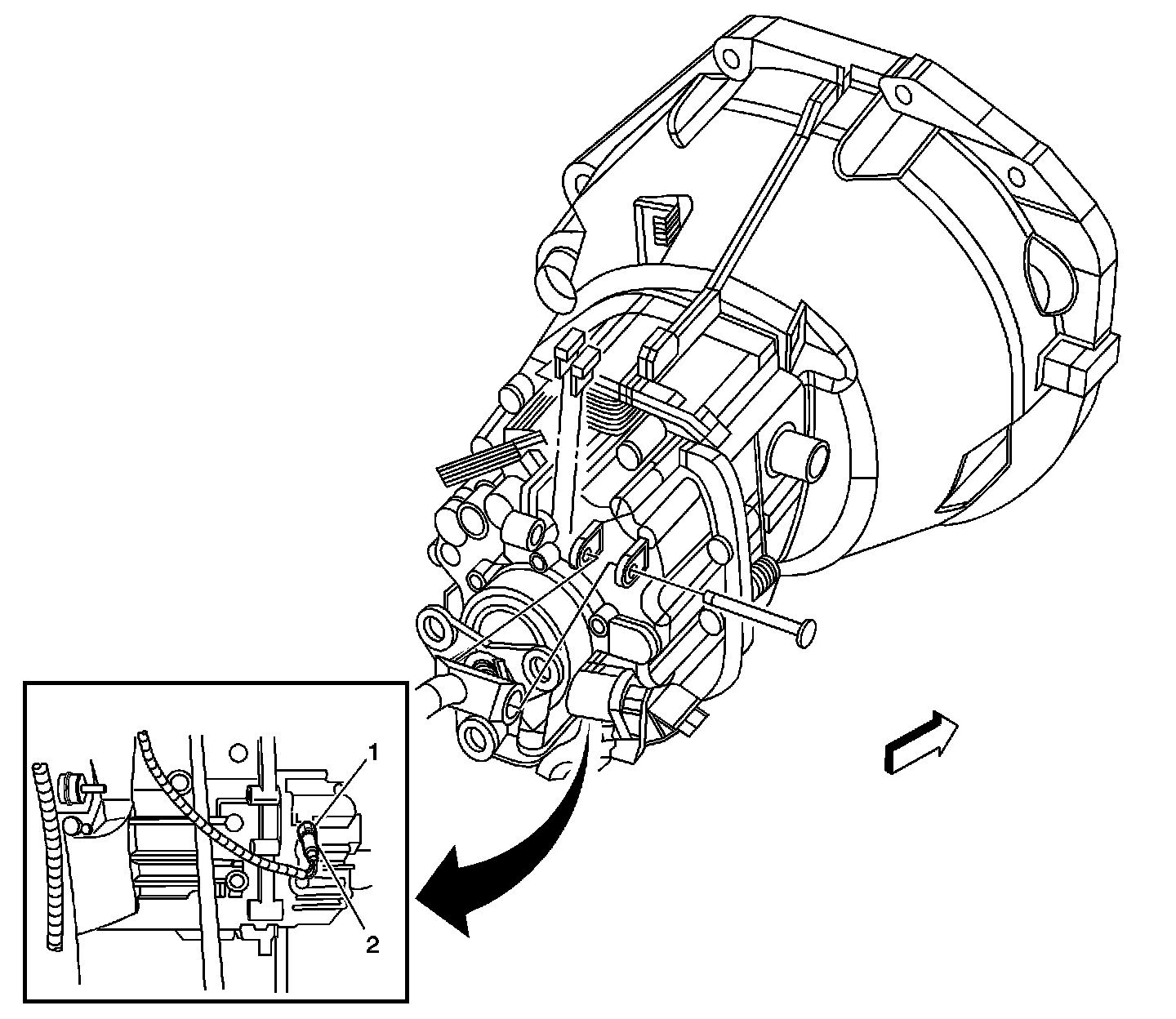

Manual Transmission Component Views

Vehicle Speed Sensor - Aisin M6 D173:





1 - Transmission Vehicle Speed Sensor
2 - Transmission Vehicle Speed Sensor Connector
