Home
>>
Cadillac
>>
2006
>>
CTS V6-2.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
>>
Engine Side
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

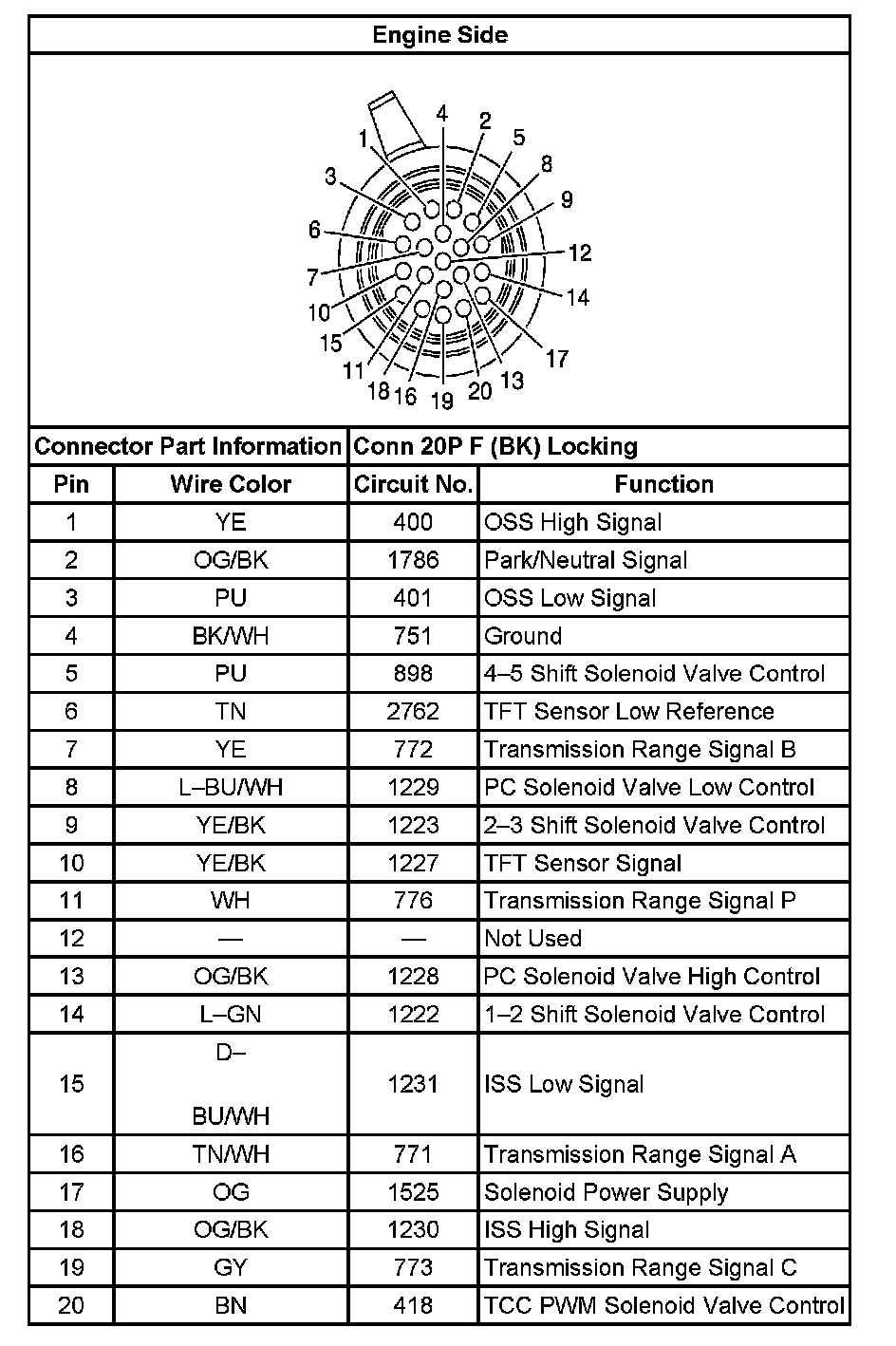

Engine Side
Engine Side:
