Right Rear Door Module (RRDM)

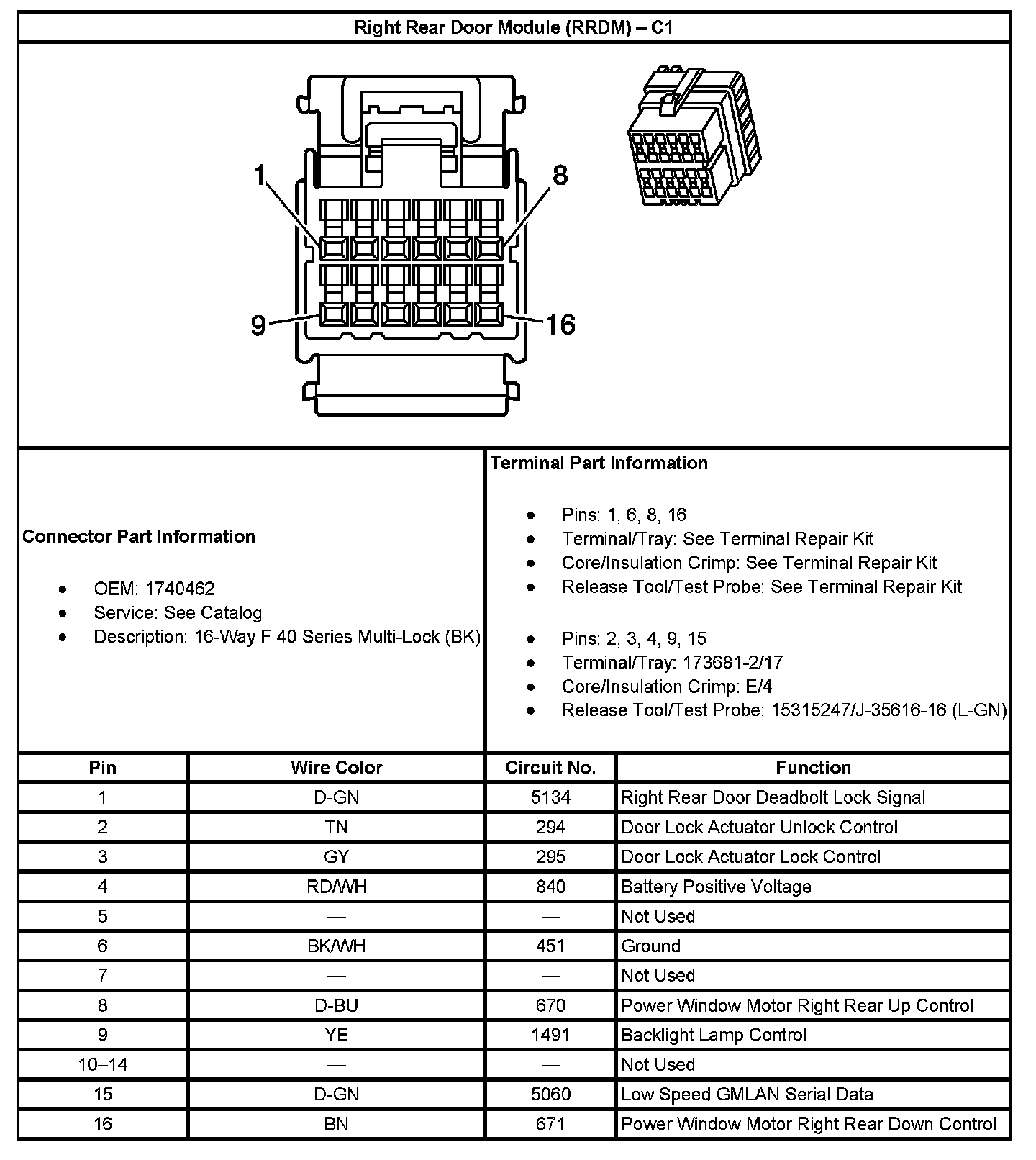

Right Rear Door Module (RRDM) - C1:

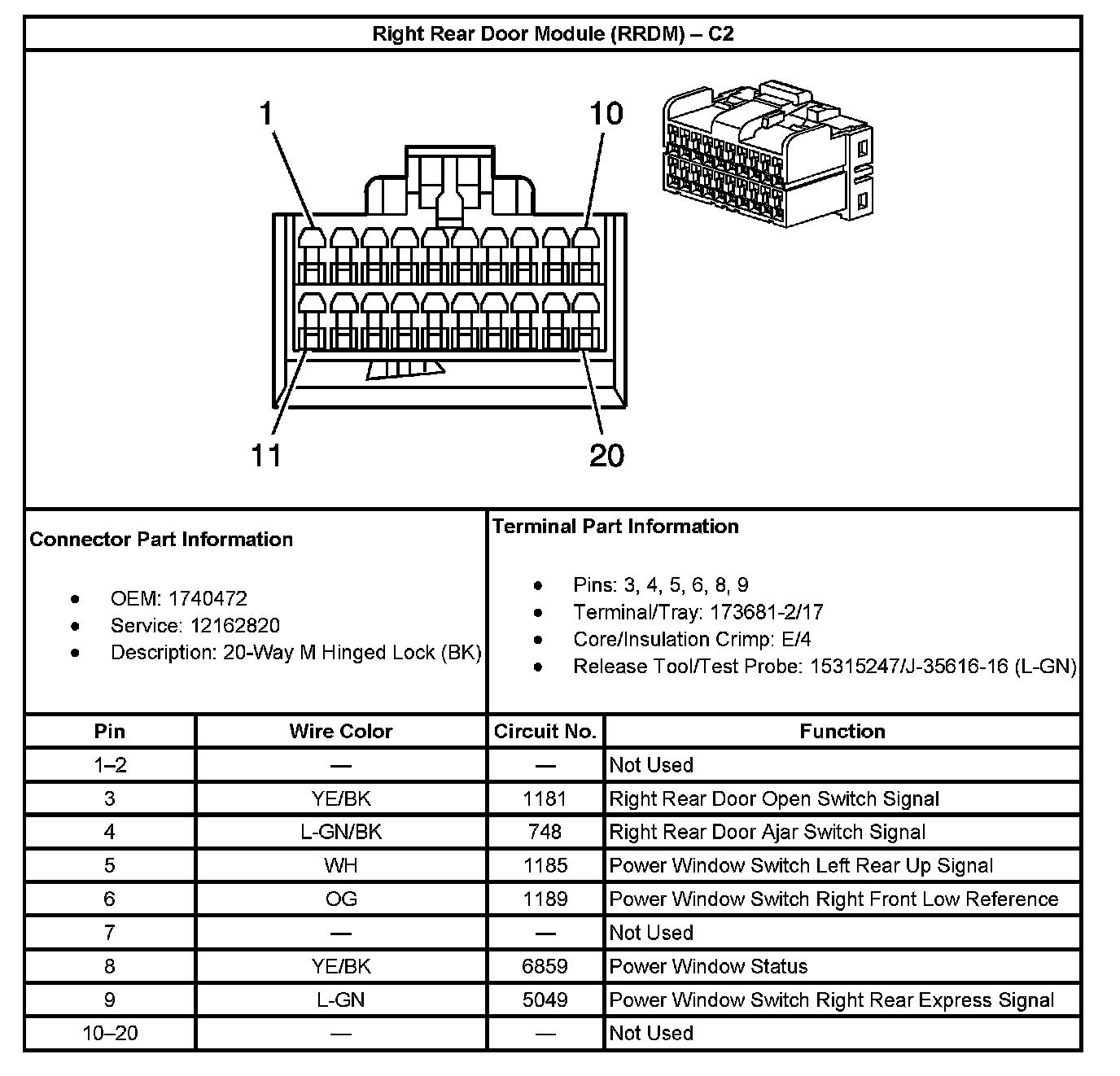

Right Rear Door Module (RRDM) - C2:
