Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

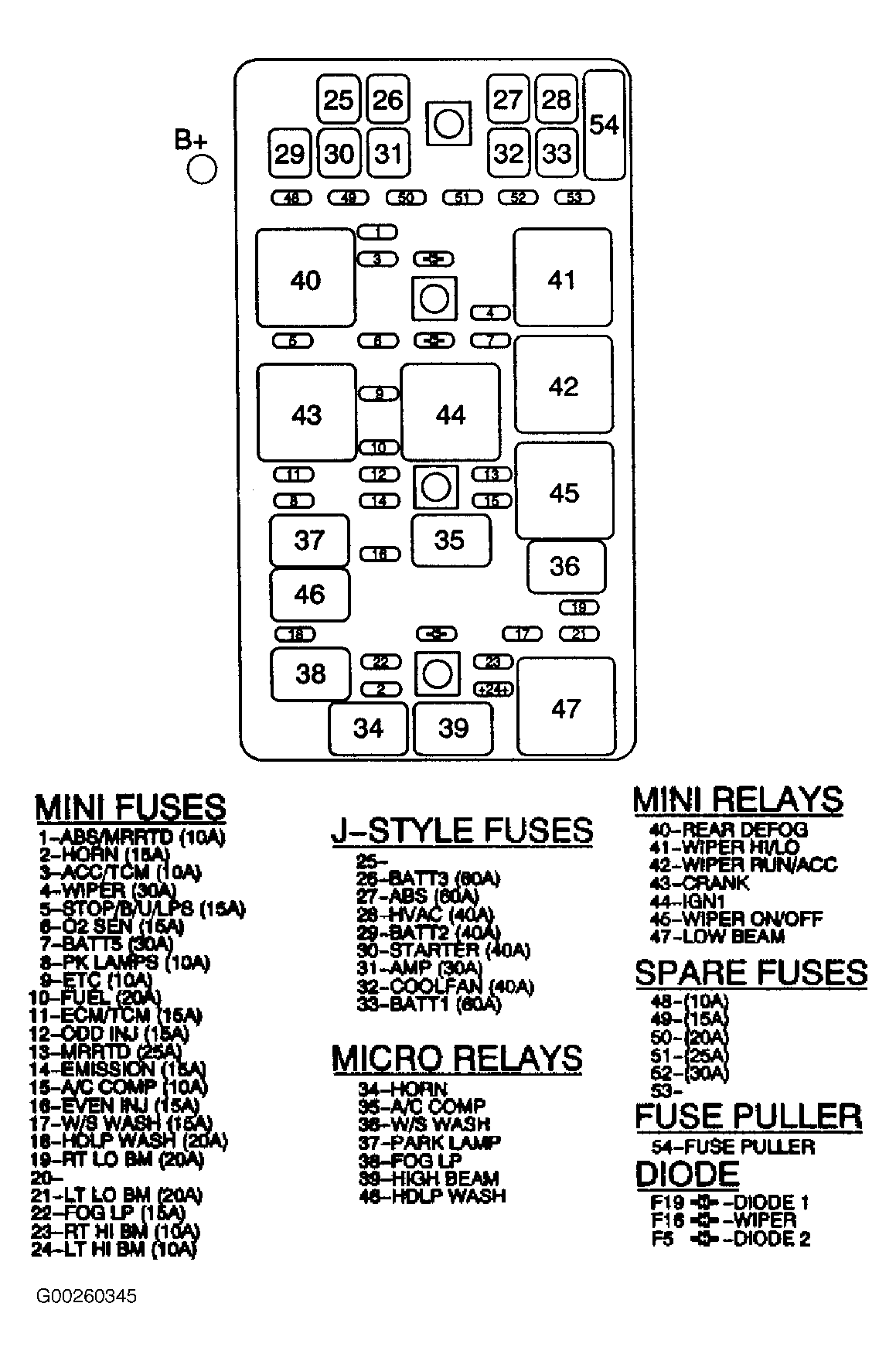

DIODE 1 On underhood fuse block. See Figure .
DIODE 2 On underhood fuse block. See Figure .
Fuse Block - I/P Front of right front footwell, behind carpet. See Figure .
Relay Block - I/P Front of right front footwell, behind carpet. See Figure .
Underhood Fuse Block Right rear of engine compartment. See Figure .
WIPER DIODE On underhood fuse block. See Figure .
