Number One Cylinder: Locations

NUMBER ONE CYLINDER

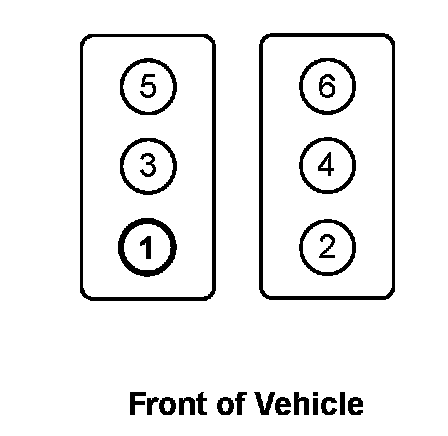

The right bank of cylinders are number 1-3-5 and the left bank of cylinders are 2-4-6.

NOTE: Right hand (RH) and left hand (LH) designation through the engine mechanical section are viewed from the rear of the engine or from inside the vehicle.

For ignition system firing order, Firing Order
