Air Bag Control Module: Locations

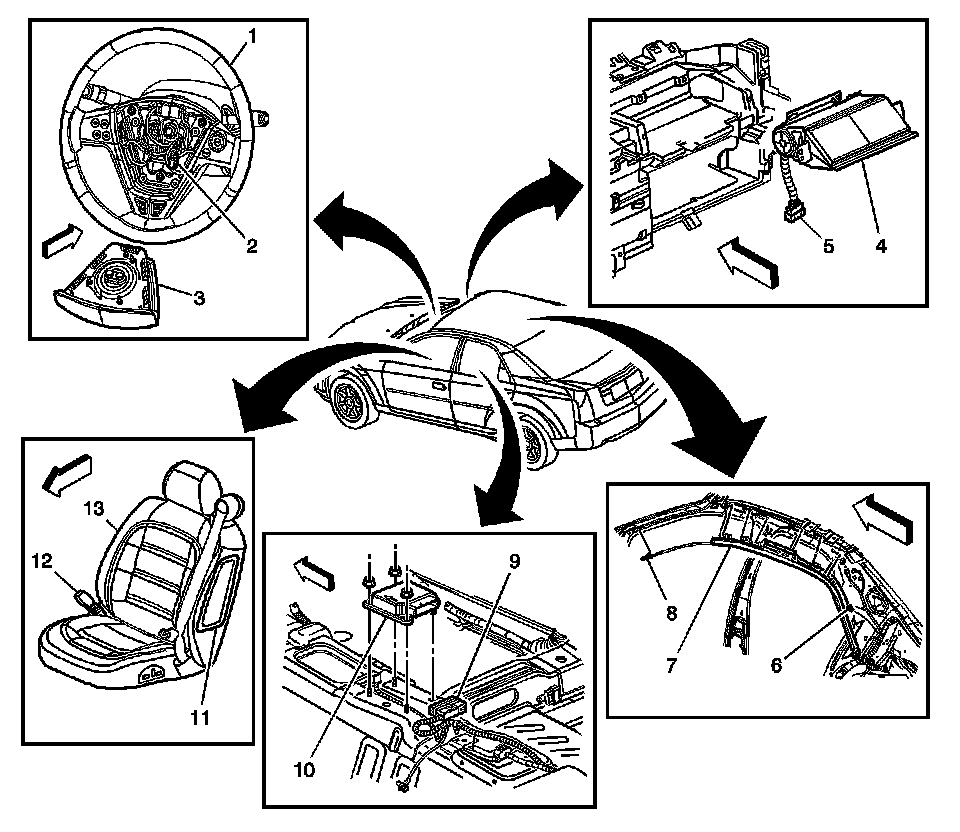

SIR Component Views

SIR Modules




1 - Steering Wheel
2 - Inflatable Restraint Steering SIR Coil
3 - Inflatable Restraint Steering Wheel Module
4 - Inflatable Restraint I/P Module
5 - Inflatable Restraint I/P Module Connector
6 - Inflatable Restraint Roof Rail Module - Passenger Connector (Driver Similar)
7 - Inflatable Restraint Roof Rail Module - Passenger (Driver Similar)
8 - Inflatable Restraint Roof Rail Module Tether - Passenger (Driver Similar)
9 - Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
10 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
11 - Inflatable Restraint Side Impact Module - Driver (Passenger Similar)
12 - Seat Belt Pretensioner - Driver (Passenger Similar) and Seat Belt Switch - Driver
13 - Driver Seat (Passenger Similar)
