Remote Function Component Views

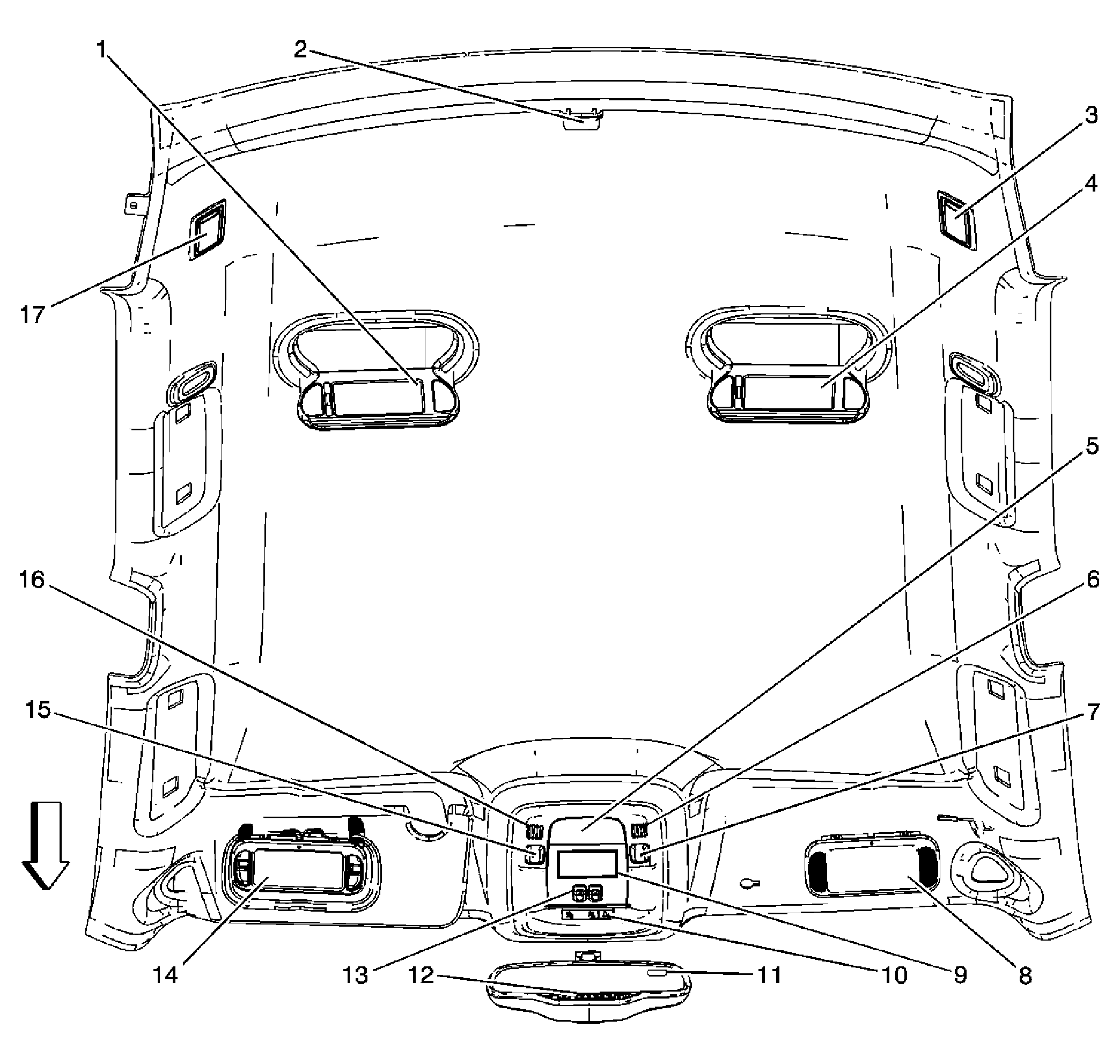

Fig 1: Headliner Components - Bottom
GM1657333Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sunshade - Left Rear (DC5)
2 Rear Park Assist Indicator (UFR)
3 Courtesy Lamp - Right Rear (V4U)
4 Sunshade - Right Rear (DC5)
5 Garage Door Opener Transmitter (UG1)
6 Noise Compensation Microphone (UQA)
7 Courtesy Lamp - Right Front (V4U)
8 Sunshade - Right Front
9 Sunshade Switch (DE9)
10 Inflatable Restraint I/P Module Indicator
11 Inside Rearview Mirror (ISRVM)
12 Onstar Button Assembly (UE1)
13 Sunroof Switch (CF5)
14 Sunshade - Left Front (- V4U)
15 Courtesy Lamp - Left Front (V4U)
16 Cellular Microphone (UE1/U3Q/U3R/U3U)
17 Courtesy Lamp - Left Rear (V4U)

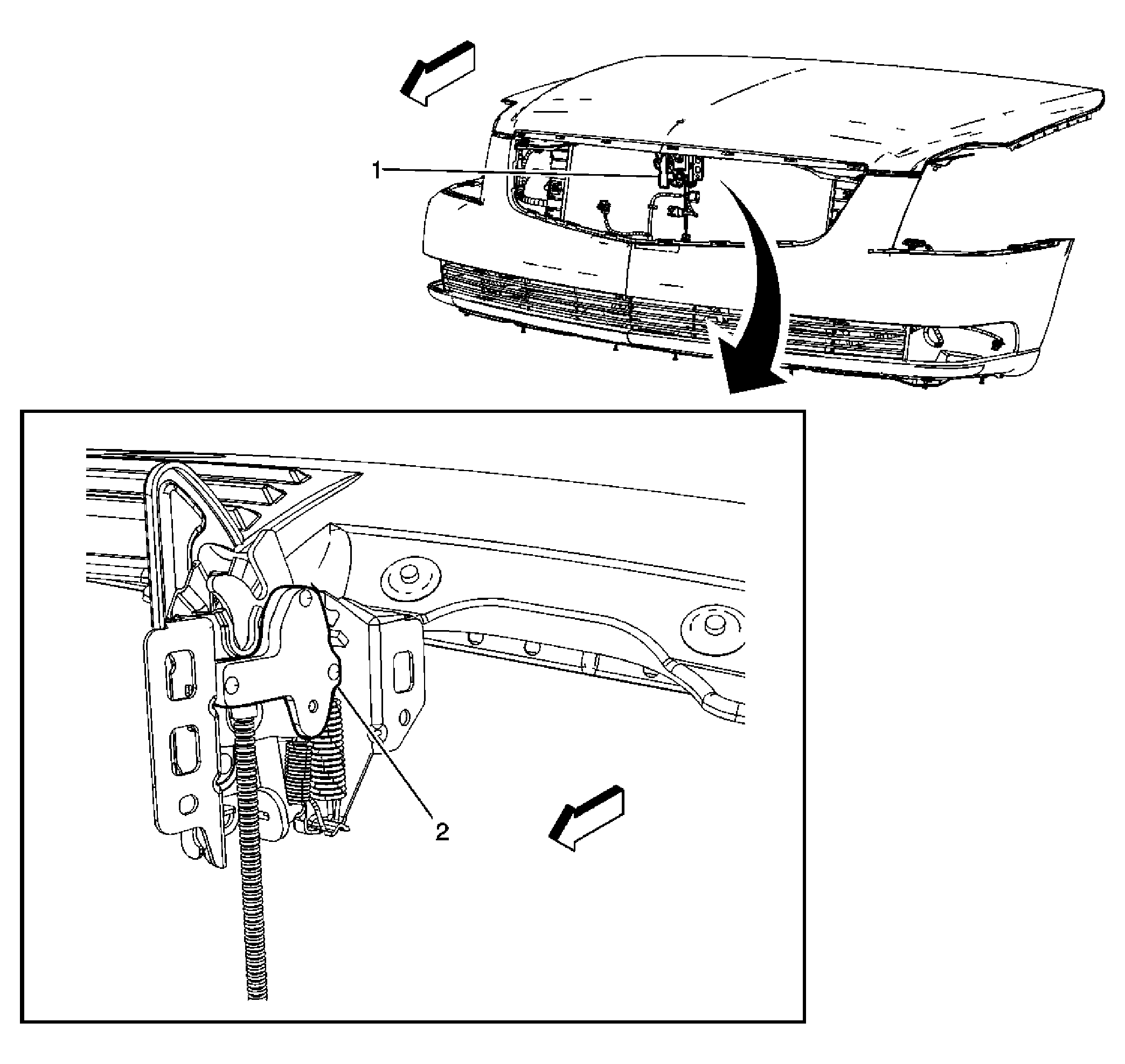

Fig 2: Below Center Of Hood View
GM1860633Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Hood Latch Assembly
2 Hood Ajar Switch

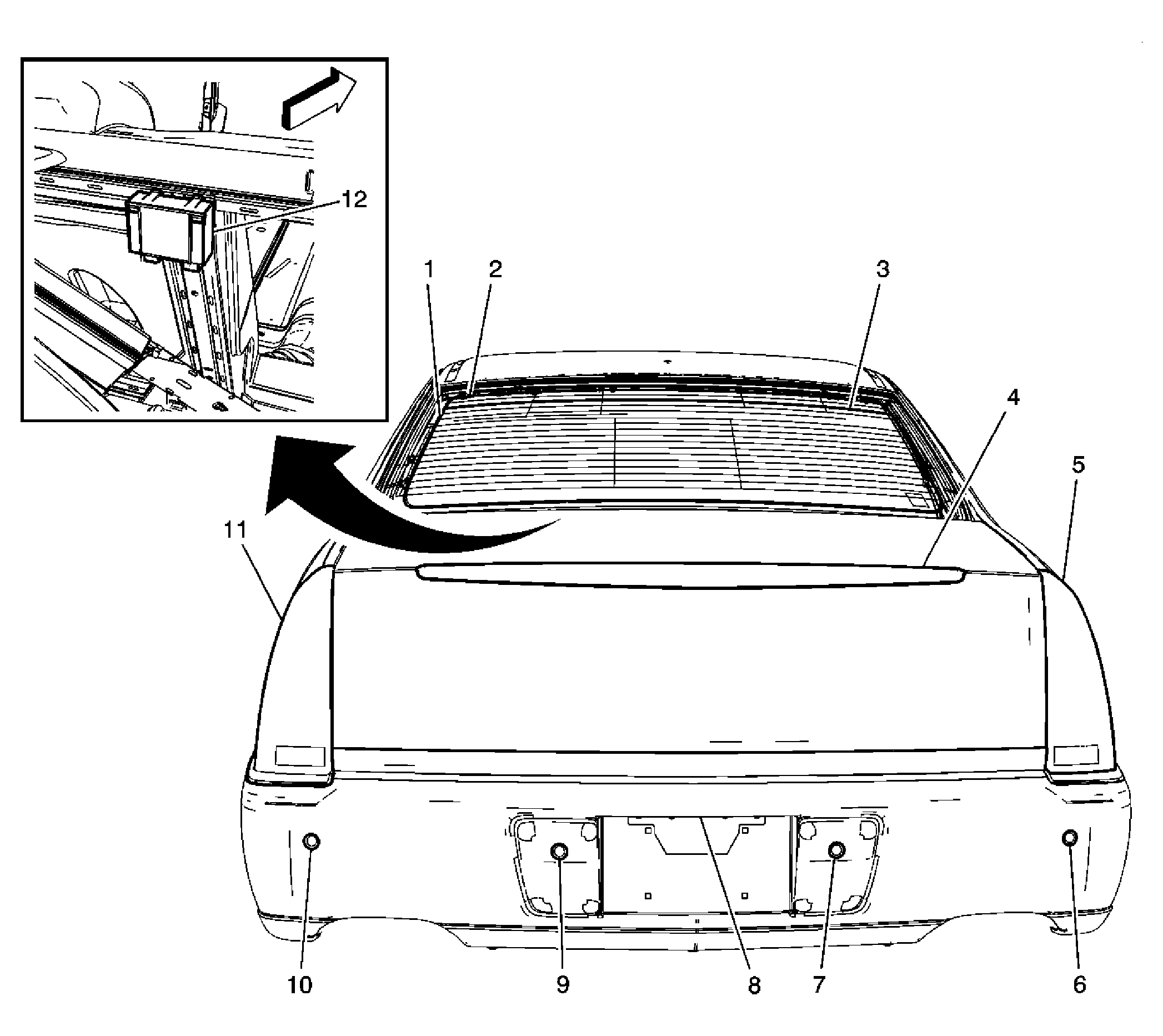

Fig 3: Rear Of Vehicle
GM1657327Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window Defogger
2 RFA Rear Glass Antenna
3 Radio Rear Glass Antenna
4 Center High Mounted Stop Lamp (CHMSL)
5 Tail Lamp - Right
6 Object Alarm Sensor - RR Outer
7 Object Alarm Sensor - RR Middle
8 License Lamp
9 Object Alarm Sensor - LR Middle
10 Object Alarm Sensor - LR Outer
11 Tail Lamp - Left
12 Remote Control Door Lock Receiver (RCDLR)
