Number One Cylinder: Locations

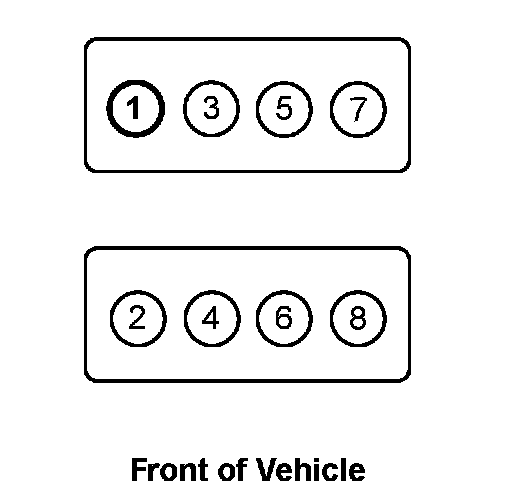

NUMBER ONE CYLINDER






The left, front, bank of cylinders are number 2-4-6-8 and the right, rear, bank cylinders are 1-3-5-7.

NOTE: Right hand (RH) and left hand (LH) designation through the engine mechanical section are viewed from the rear of the engine or from inside the vehicle.

For ignition system firing order, Firing Order
