Air Bag Control Module: Locations

SIR Component Views

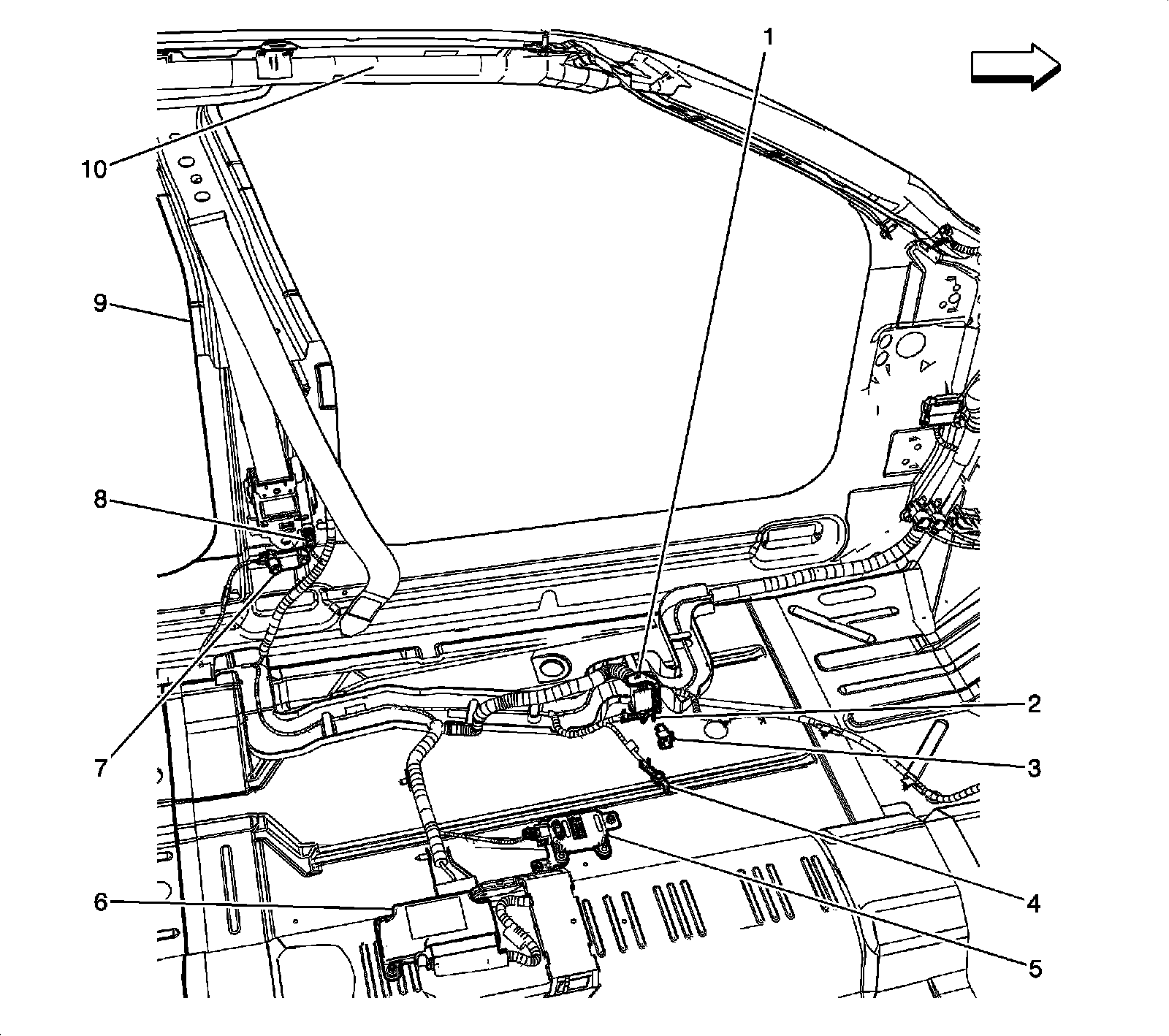

Driver Seat Area Components (Body Harness)




1 - C315 Body Harness to Driver Seat Harness
2 - G300
3 - Inflatable Restraint Side Impact Module - Left Connector
4 - G305
5 - Yaw and Lateral Acceleration Sensor (JL4)
6 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
7 - Inflatable Restraint Side Impact Sensor - Left
8 - Seat Belt Pretensioner - LF
9 - C-Pillar
10 - Inflatable Restraint Roof Rail Module - Left (AY0)
