HVAC Control Module

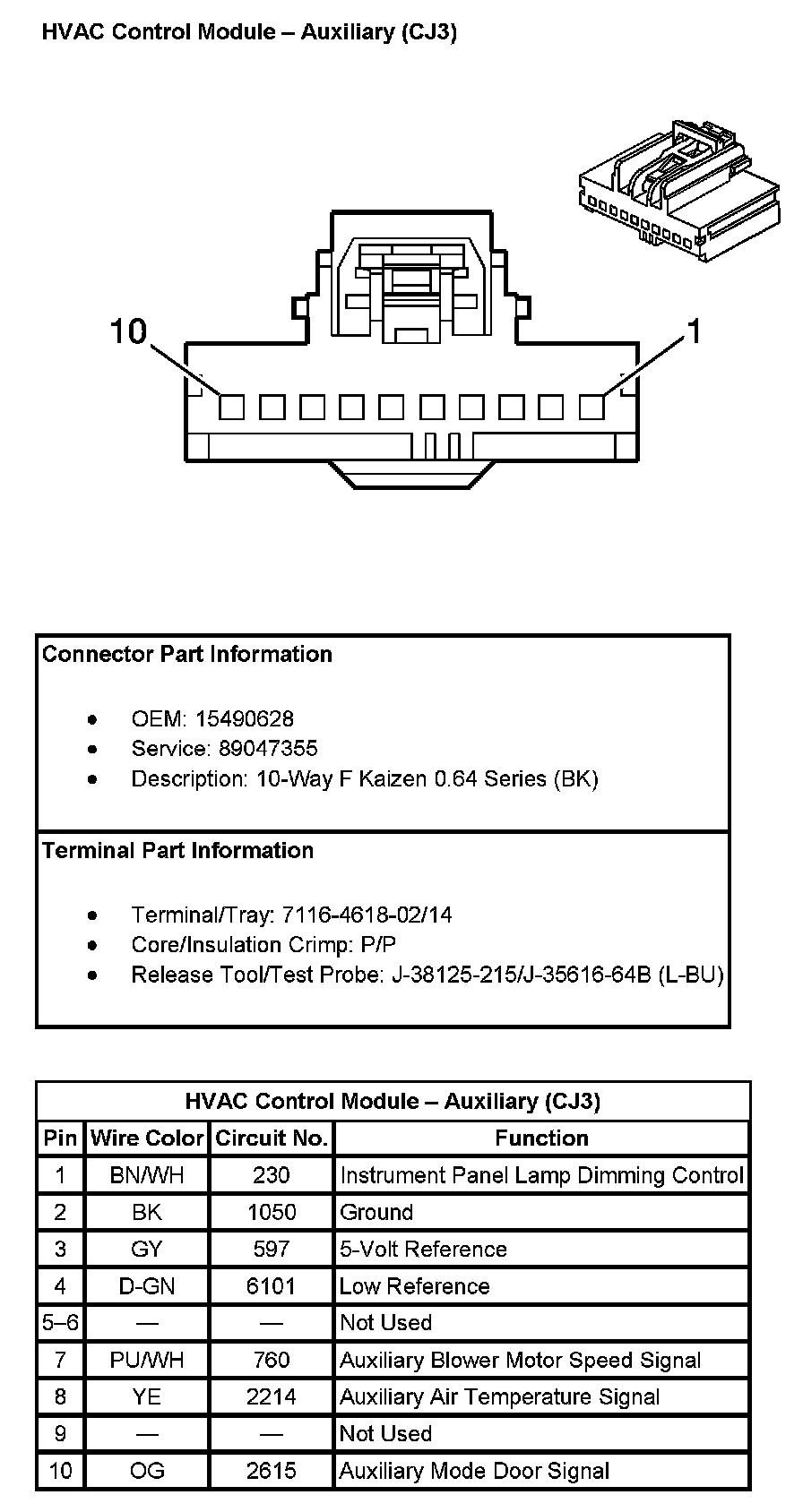

HVAC Control Module - Auxiliary (With RPO Code CJ3):

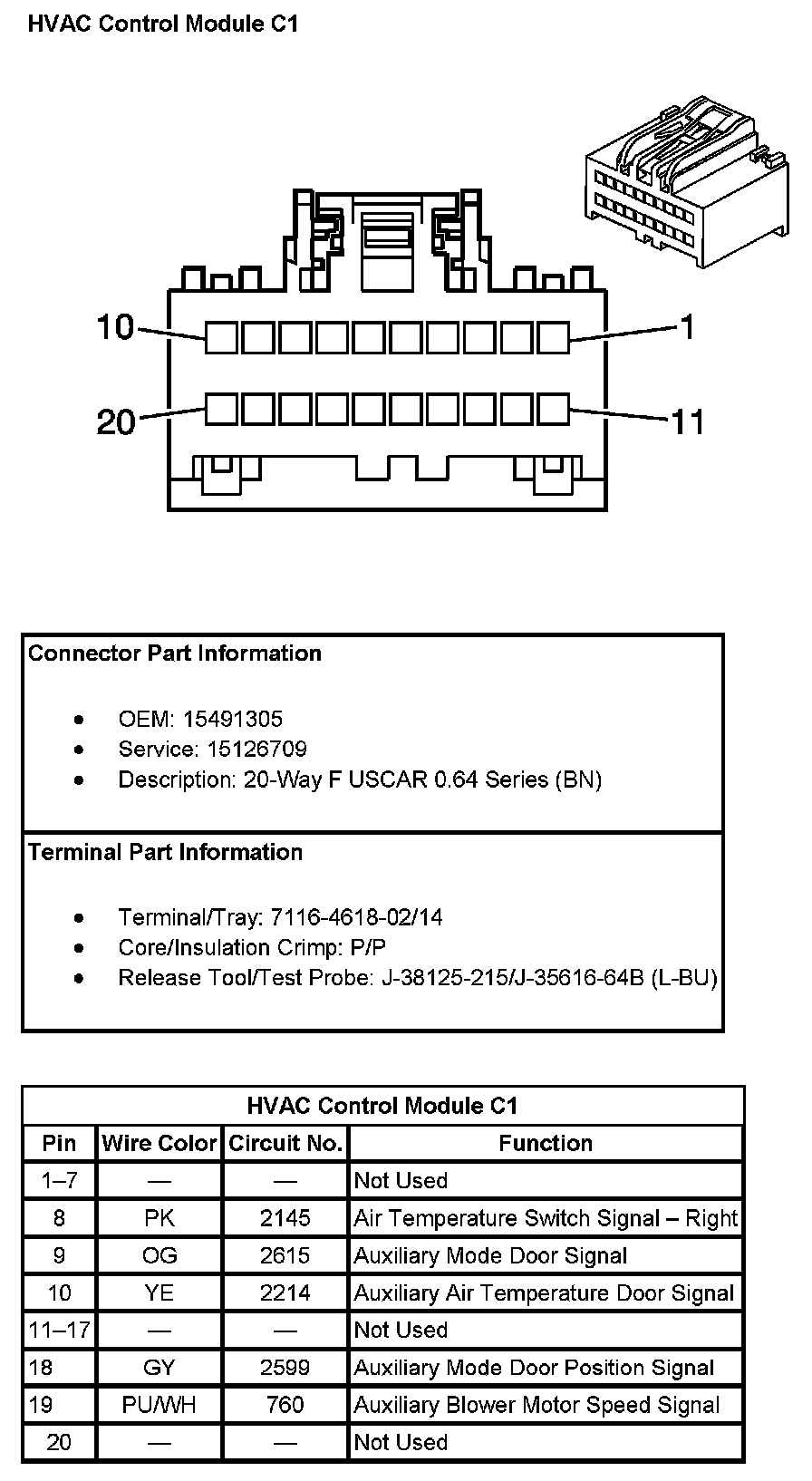

HVAC Control Module C1:

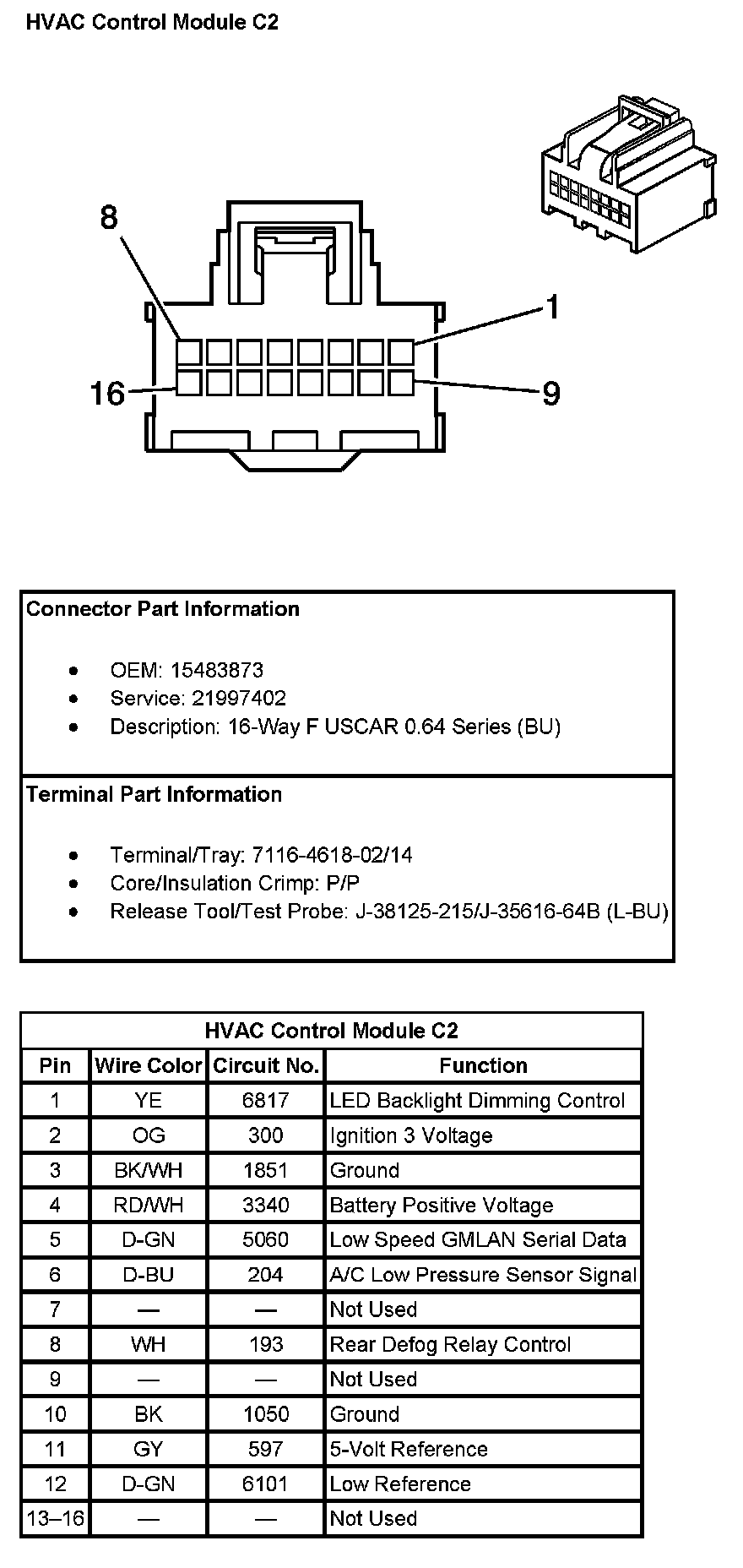

HVAC Control Module C2:



HVAC Control Module C3:

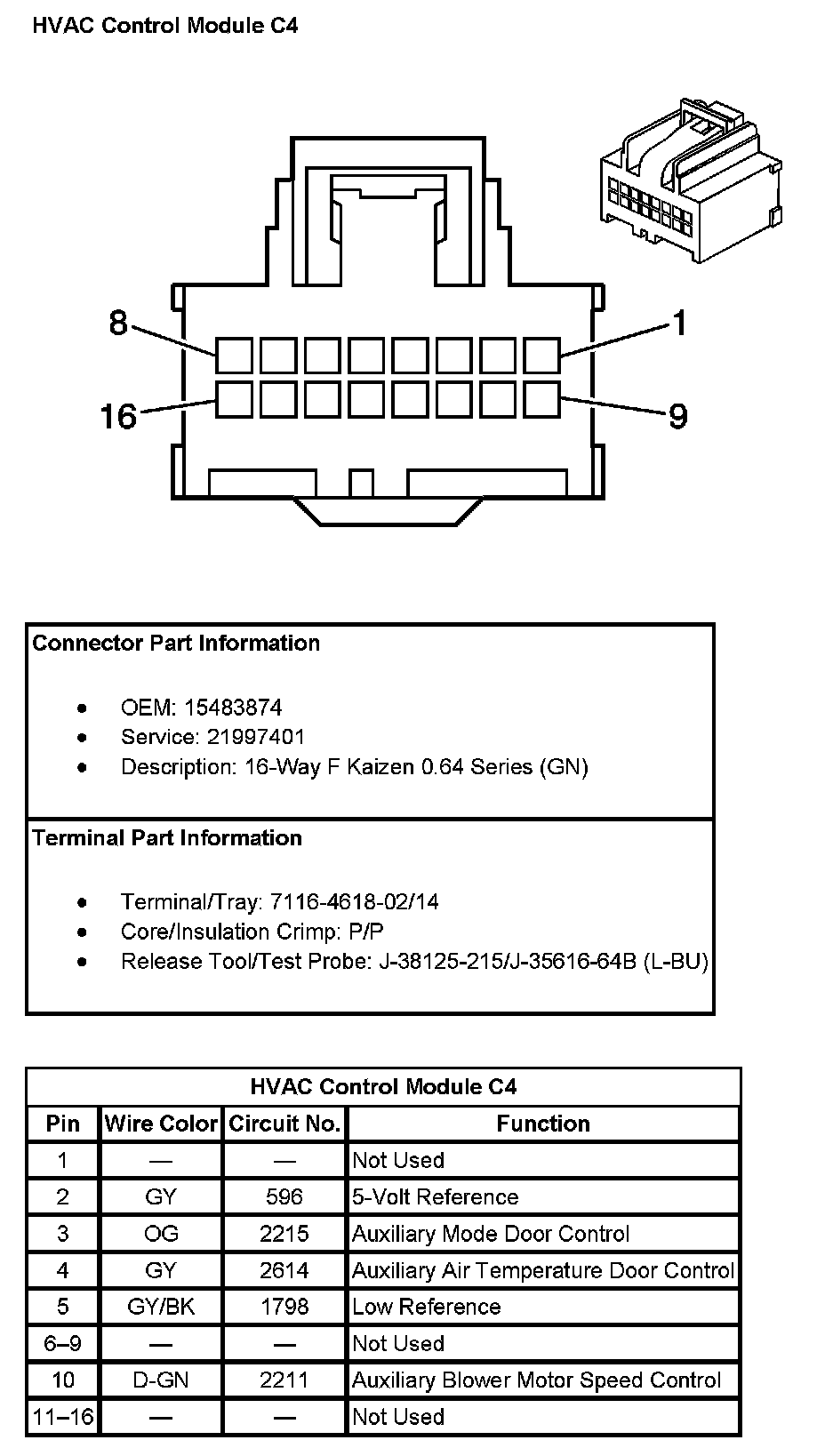

HVAC Control Module C4:
