Engine Control Module (ECM) C2

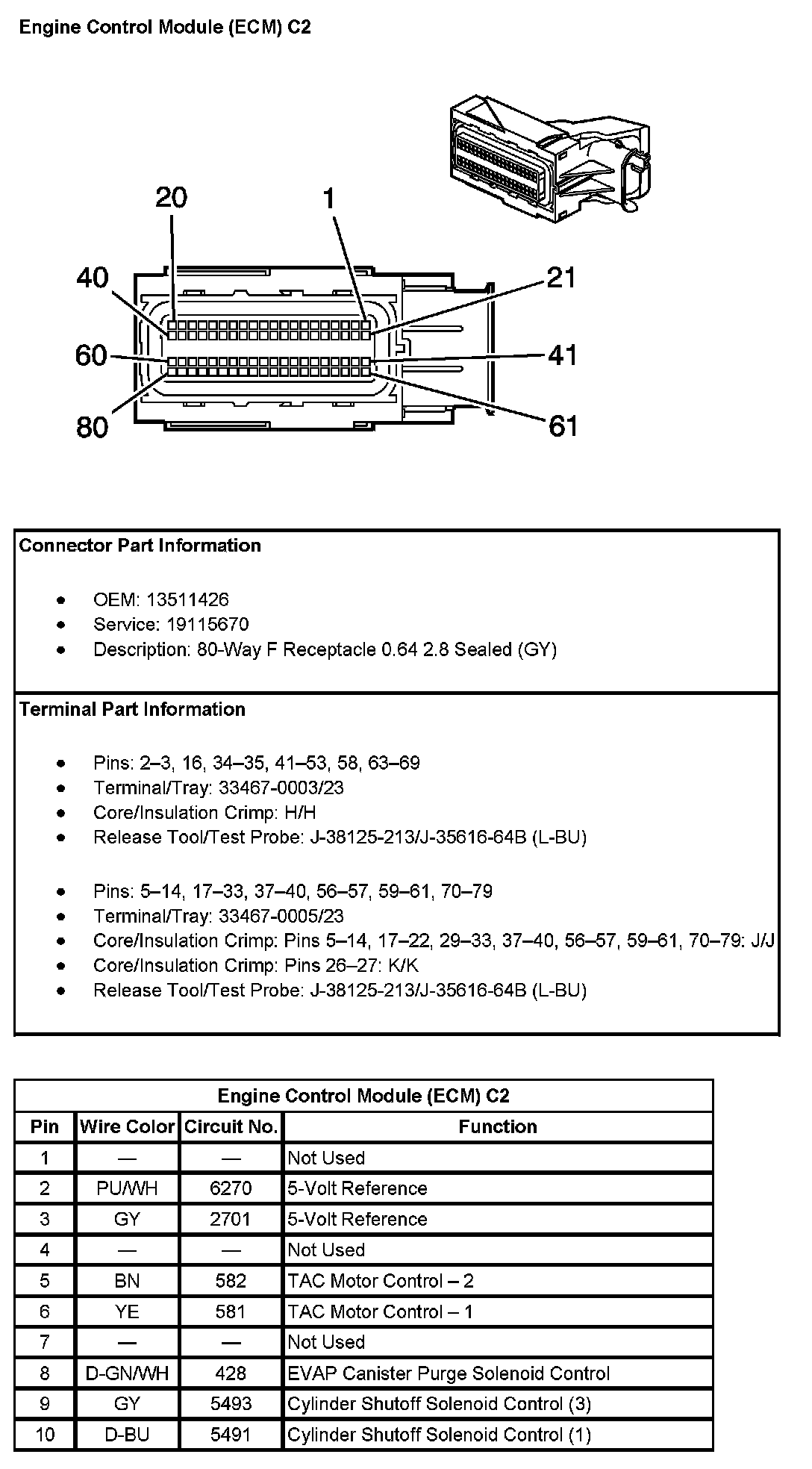

Engine Control Module (ECM) C2 (Pin 1 To 10):

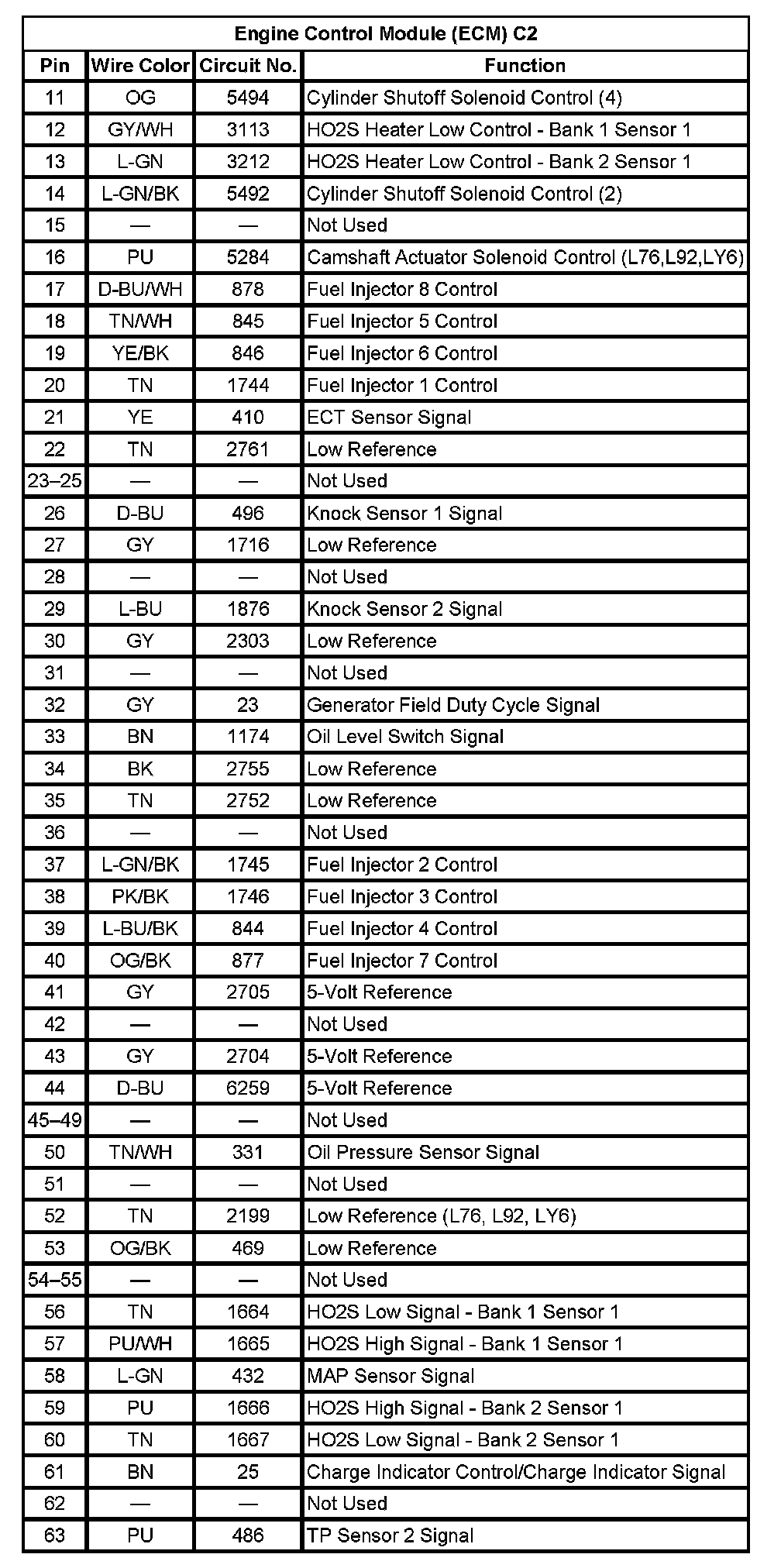

Engine Control Module (ECM) C2 (Pin 11 To 63):

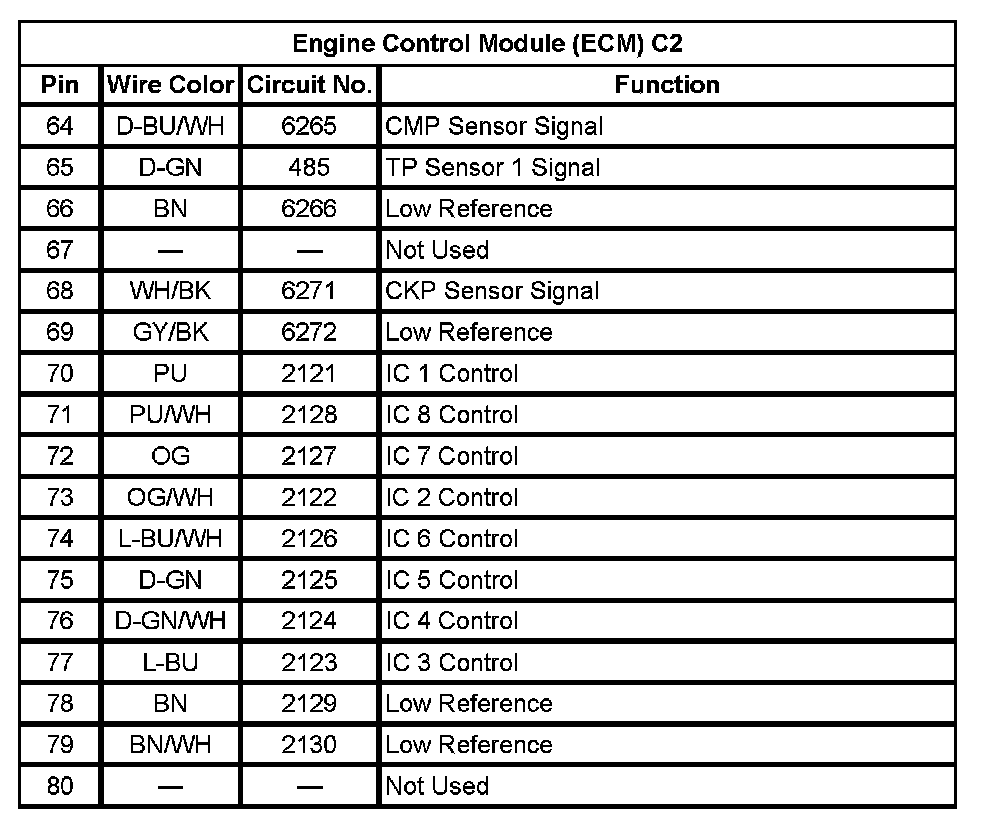

Engine Control Module (ECM) C2 (Pin 64 To 80):
