Climate Control Seat Module

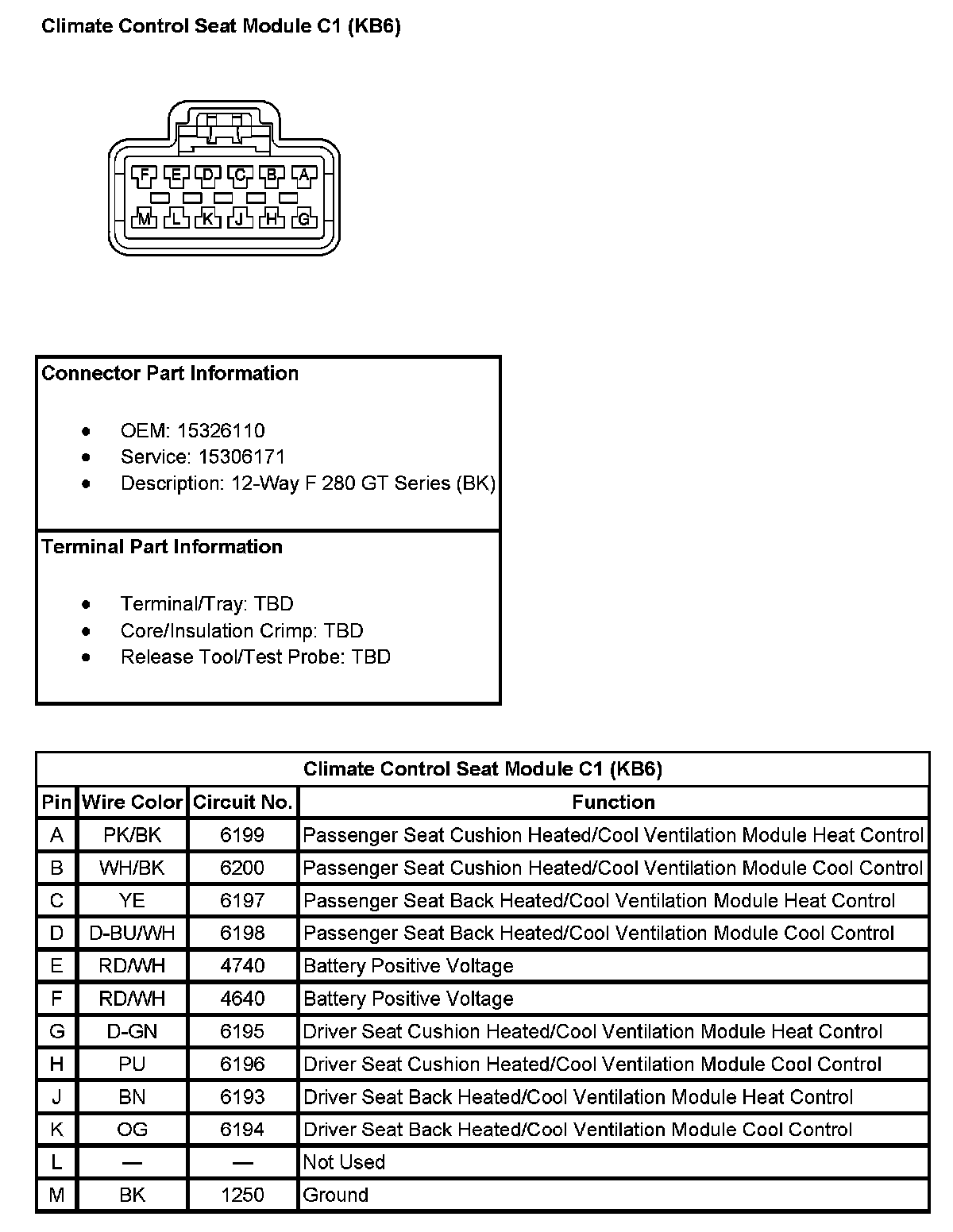

Climate Control Seat Module C1 (With RPO Code KB6):

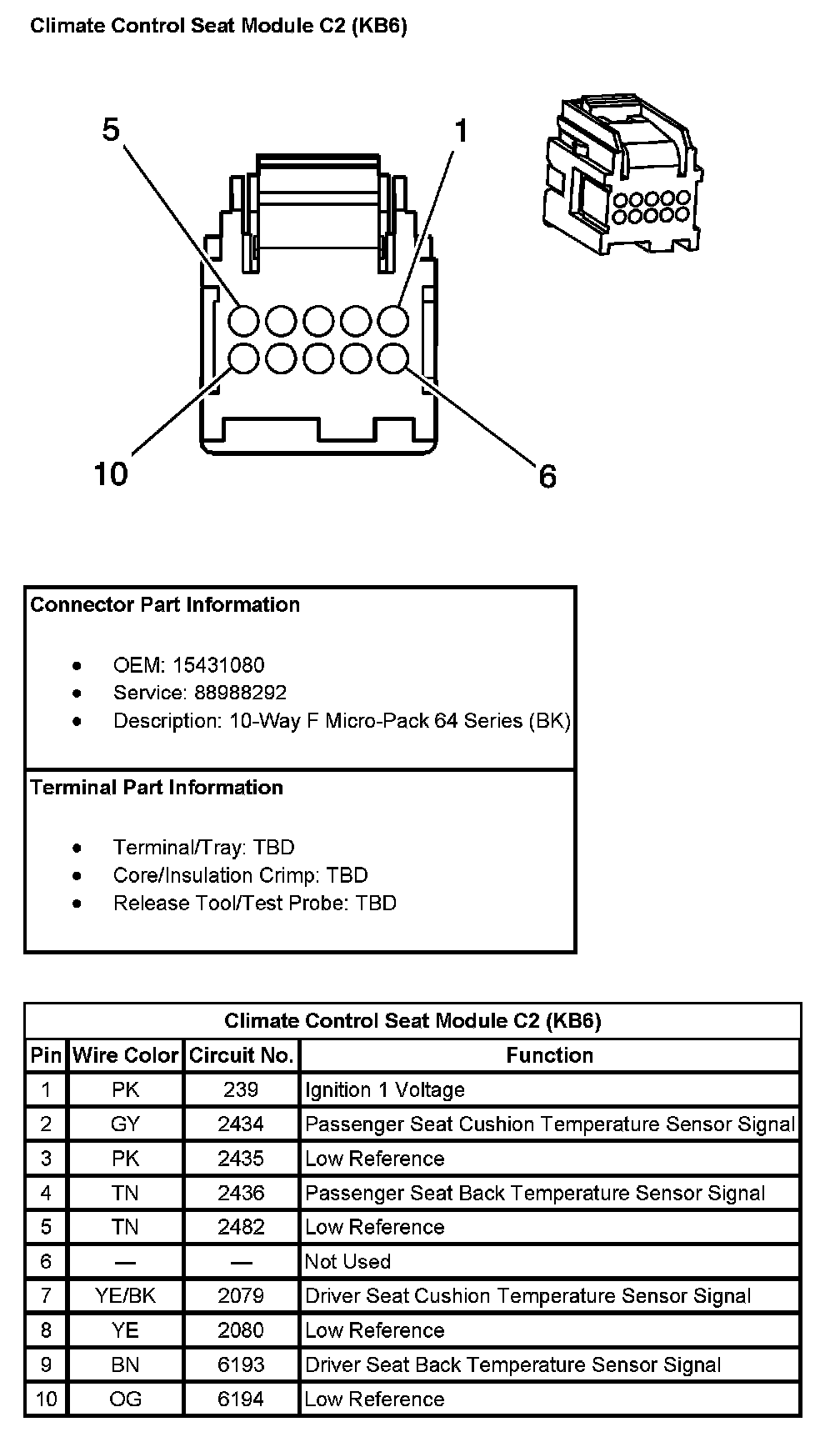

Climate Control Seat Module C2 (With RPO Code KB6):

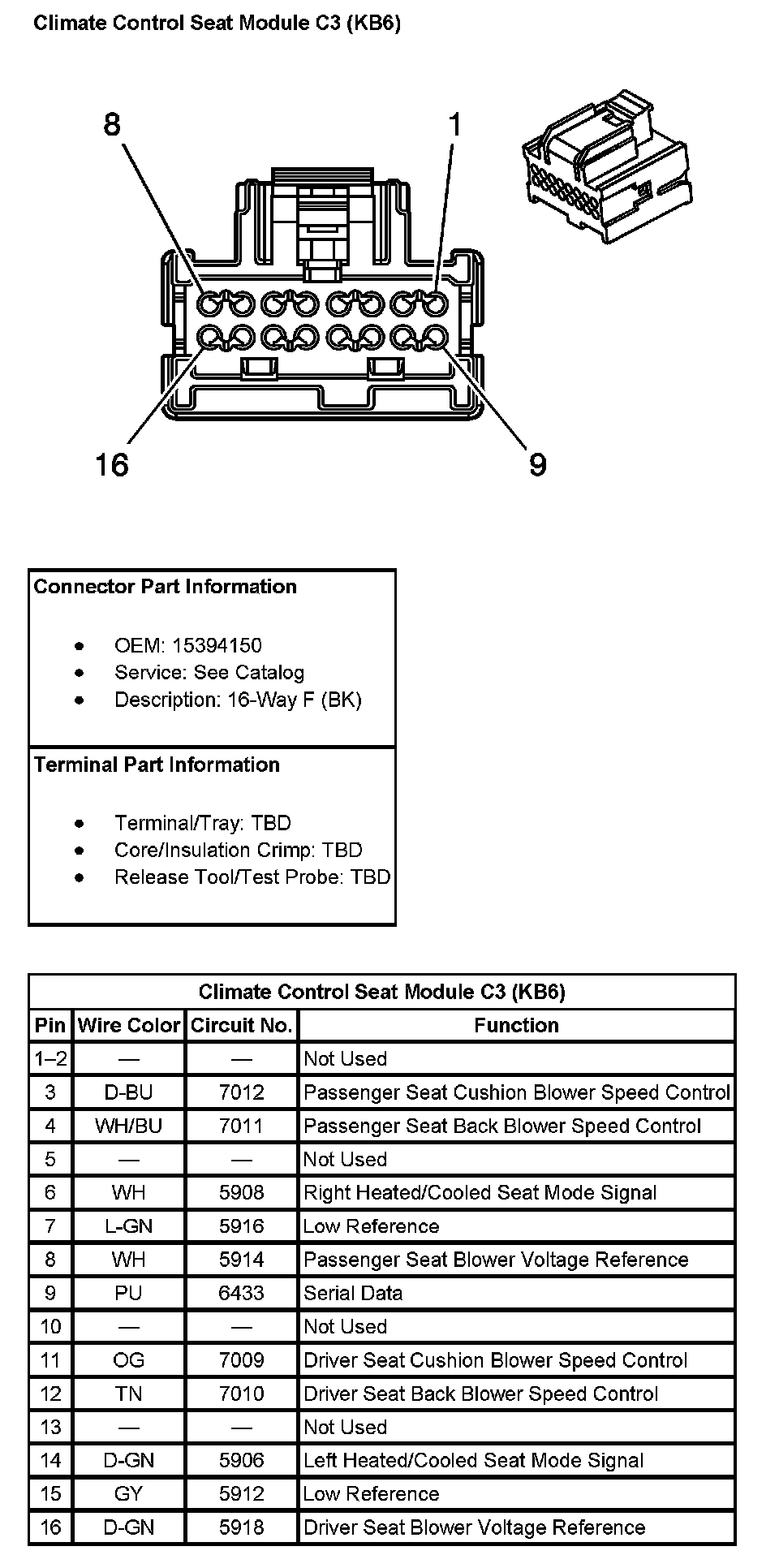

Climate Control Seat Module C3 (With RPO Code KB6):
