Pedestrian Impact Detection Sensor Replacement - Front Upper Beam

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

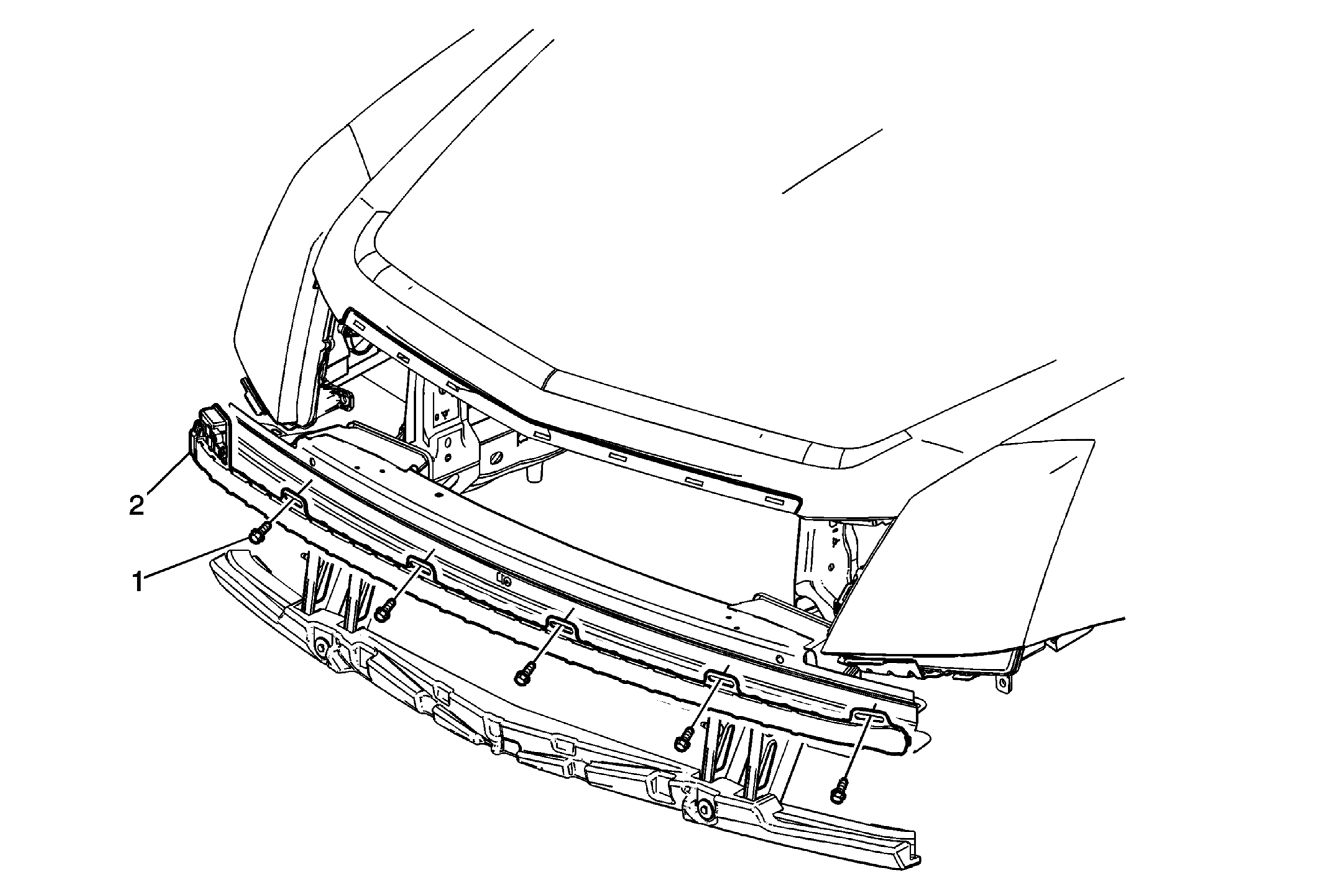

Fig 1: Pedestrian Impact Detection Sensor Replacement - Front Upper Beam

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disable the pedestrian impact detection system. Refer to Pedestrian Impact Detection System Disabling and Enabling . Remove the front fascia. Refer to Front Bumper Fascia Replacement . Remove the front fascia absorber. Refer to Front Bumper Fascia Energy Absorber Replacement (BRT) .
1	Pedestrian Impact Detection Sensor Bolt (Qty: 5) NOTE: Refer to Fastener Notice . Tighten: 3 N.m (27 lb in)
2	Pedestrian Impact Detection Sensor Procedure: Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Disable the pedestrian impact detection system. Refer to Pedestrian Impact Detection System Disabling and Enabling .
Remove the front fascia. Refer to Front Bumper Fascia Replacement .
Remove the front fascia absorber. Refer to Front Bumper Fascia Energy Absorber Replacement (BRT) .

Pedestrian Impact Detection Sensor Bolt (Qty: 5)

NOTE: Refer to Fastener Notice .

Tighten: 3 N.m (27 lb in)

Pedestrian Impact Detection Sensor
Procedure:
Disconnect the electrical connector.
