Radio, Video, Audio Disc Player, and Navigation Information Display Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

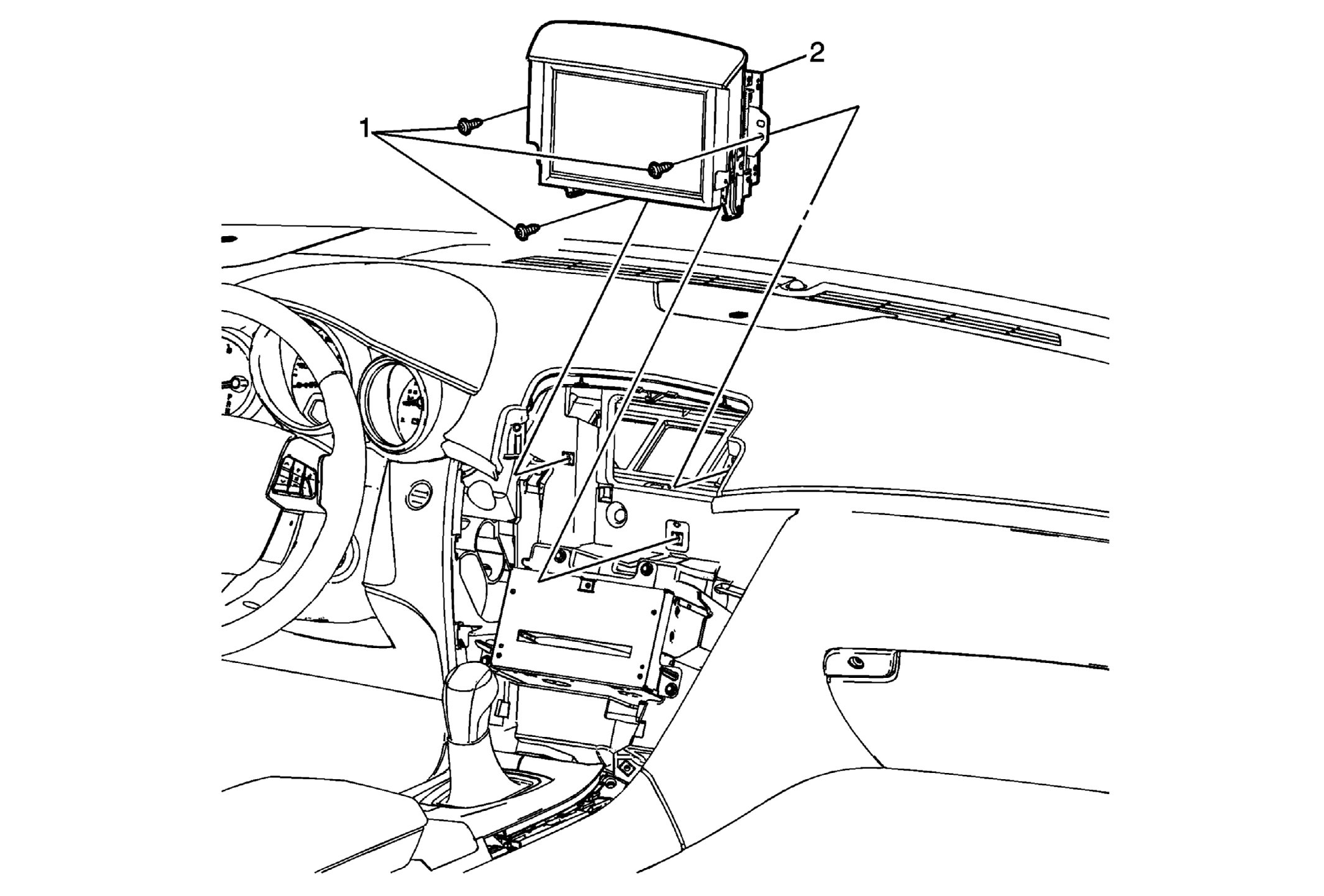

Fig 1: Radio, Video, Audio Disc Player, and Navigation Information Display Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the AM/FM Stereo and Clock and Audio Disc Player Radio Control Assembly. Refer to Radio Control Assembly Replacement (with Navigation Display) or Radio Control Assembly Replacement (without Navigation Display) .
1	Radio and Video and Audio Disc Player and Navigational Information Display Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
2	Radio and Video and Audio Disc Player and Navigational Information Display Assembly Procedure Disconnect the electrical connections. When replacing the Radio and Video and Audio Disc Player and Navigational Information Display, transfer the navigation opening cover. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure:
Remove the AM/FM Stereo and Clock and Audio Disc Player Radio Control Assembly. Refer to Radio Control Assembly Replacement (with Navigation Display) or Radio Control Assembly Replacement (without Navigation Display) .

Radio and Video and Audio Disc Player and Navigational Information Display Screw (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 2.5 N.m (22 lb in)

Radio and Video and Audio Disc Player and Navigational Information Display Assembly

Procedure

Disconnect the electrical connections.
When replacing the Radio and Video and Audio Disc Player and Navigational Information Display, transfer the navigation opening cover.
Refer to Control Module References for programming and setup information.
