Connector Identification

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

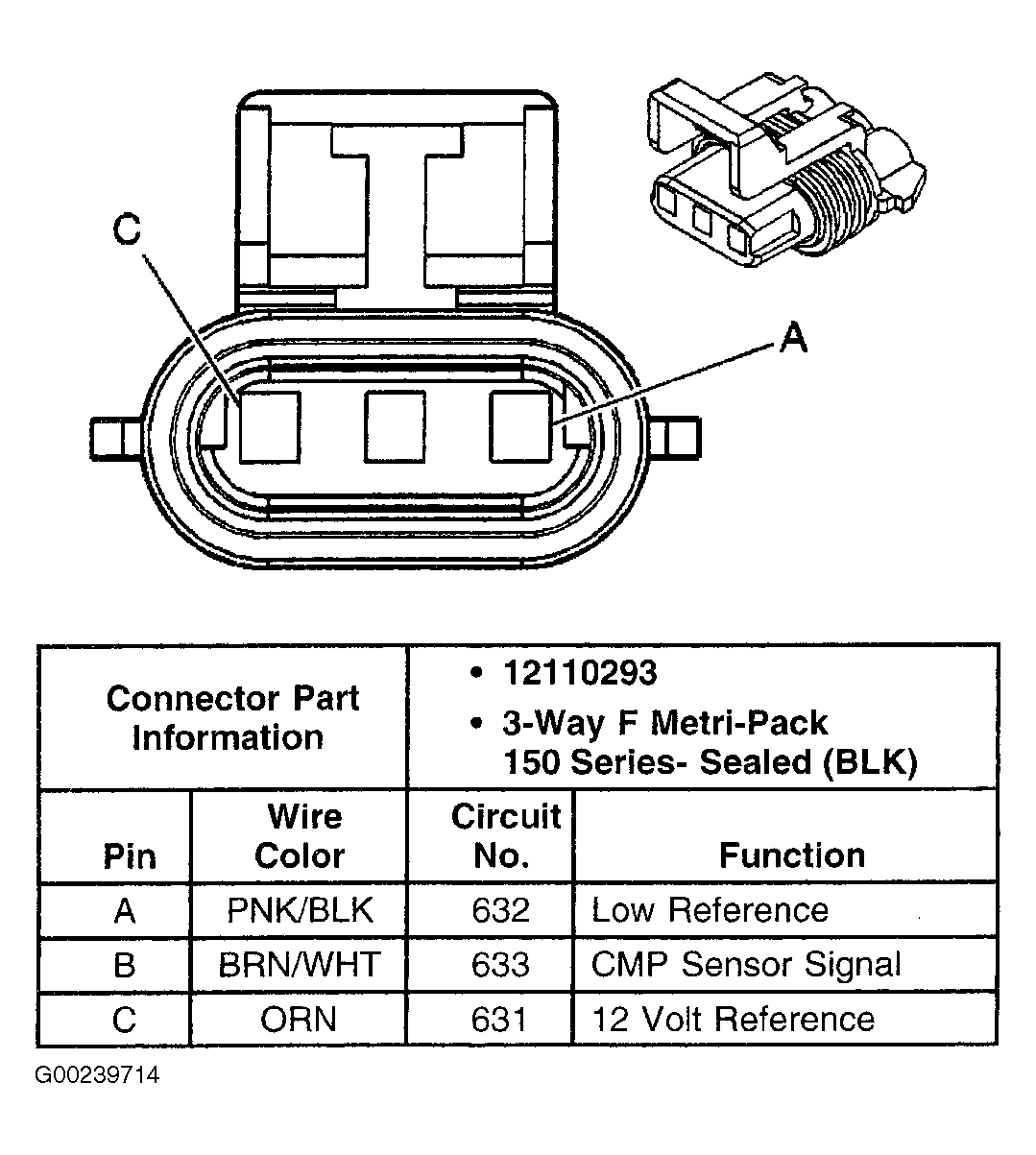

Fig 1: Identifying Camshaft Position Sensor Connector Terminals

G00239714

Courtesy of GENERAL MOTORS CORP.

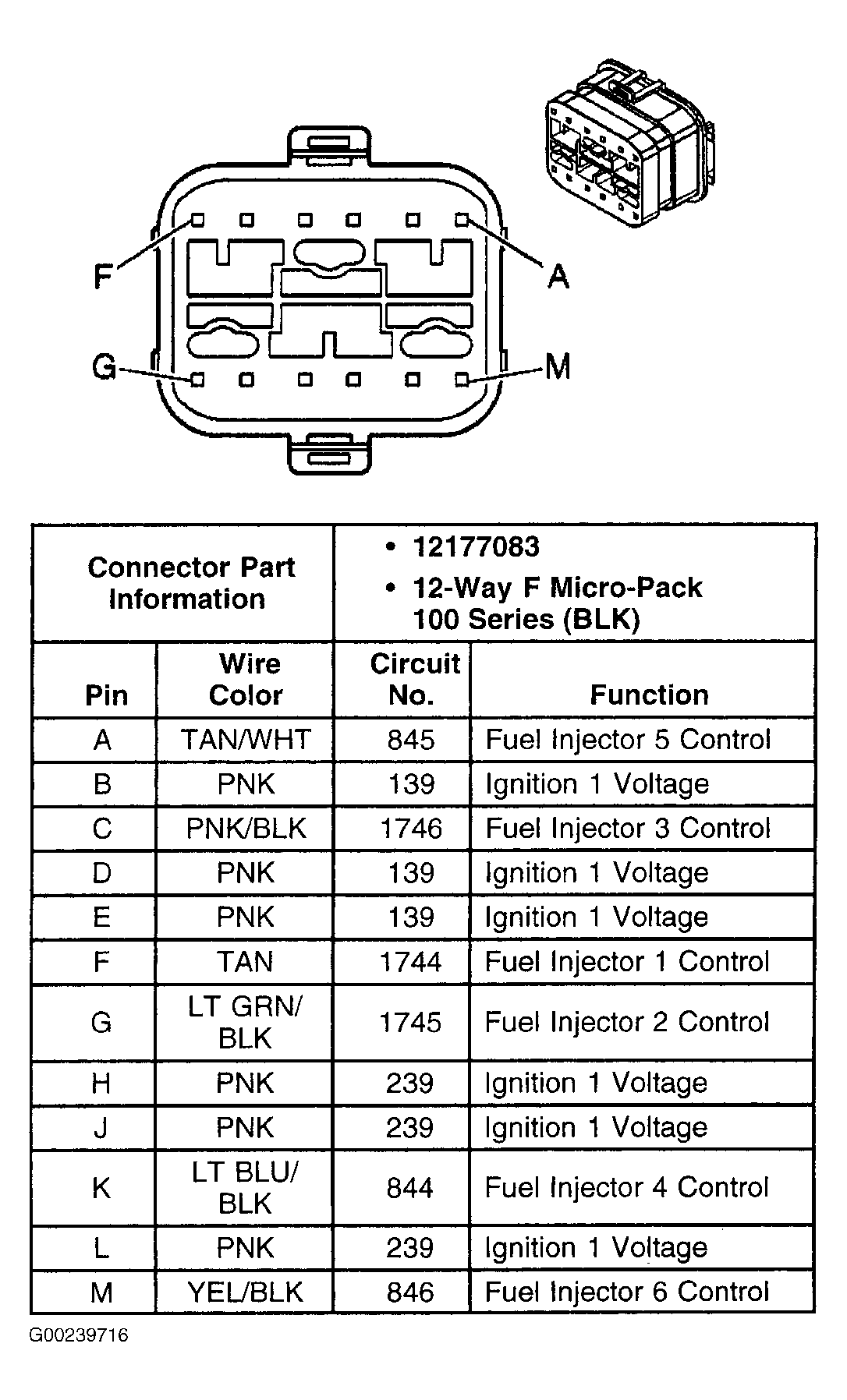

Fig 2: Identifying Central Sequential Fuel Injection Connector Terminals

G00239716

Courtesy of GENERAL MOTORS CORP.

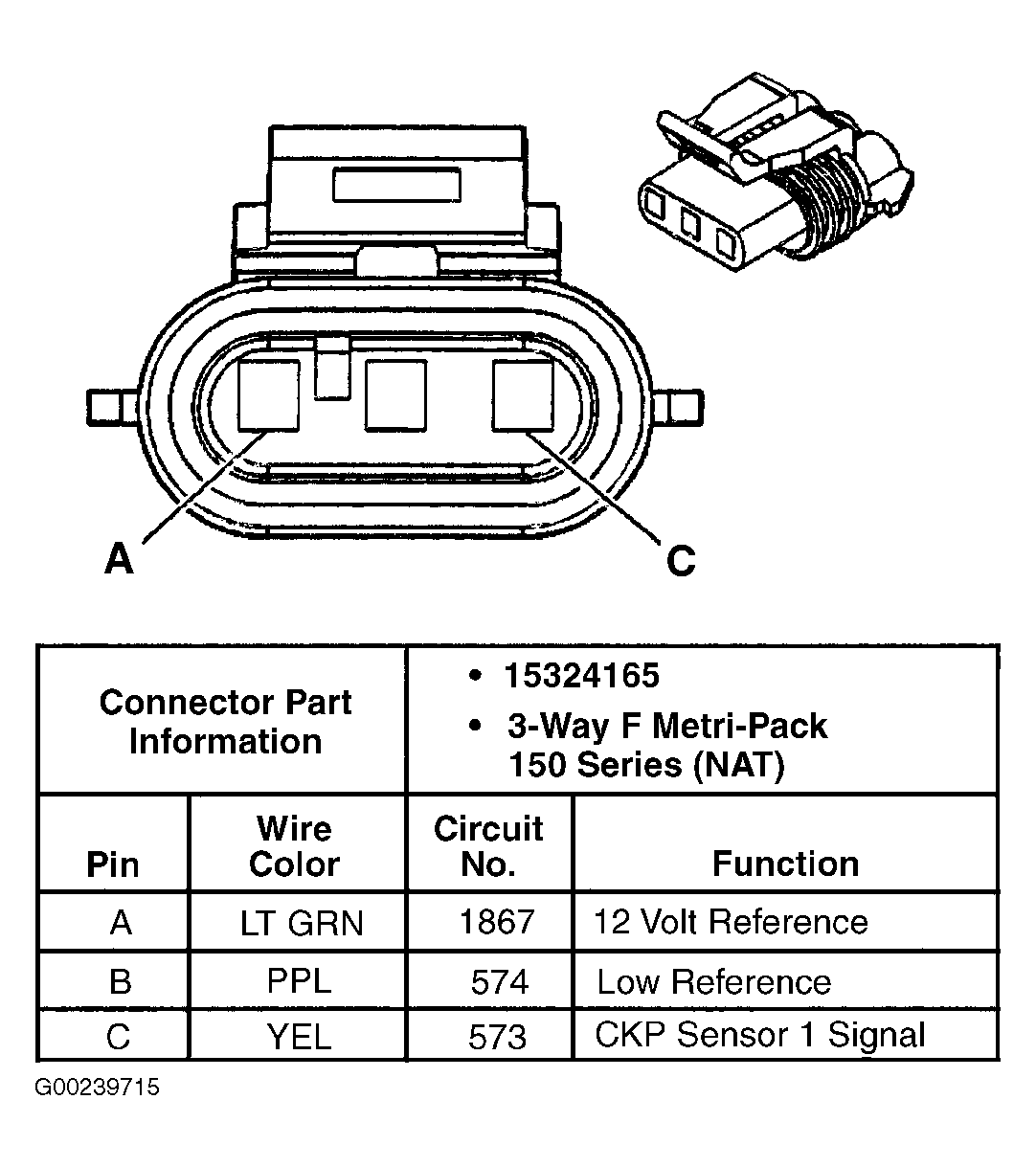

Fig 3: Identifying Crankshaft Position Sensor Connector Terminals

G00239715

Courtesy of GENERAL MOTORS CORP.

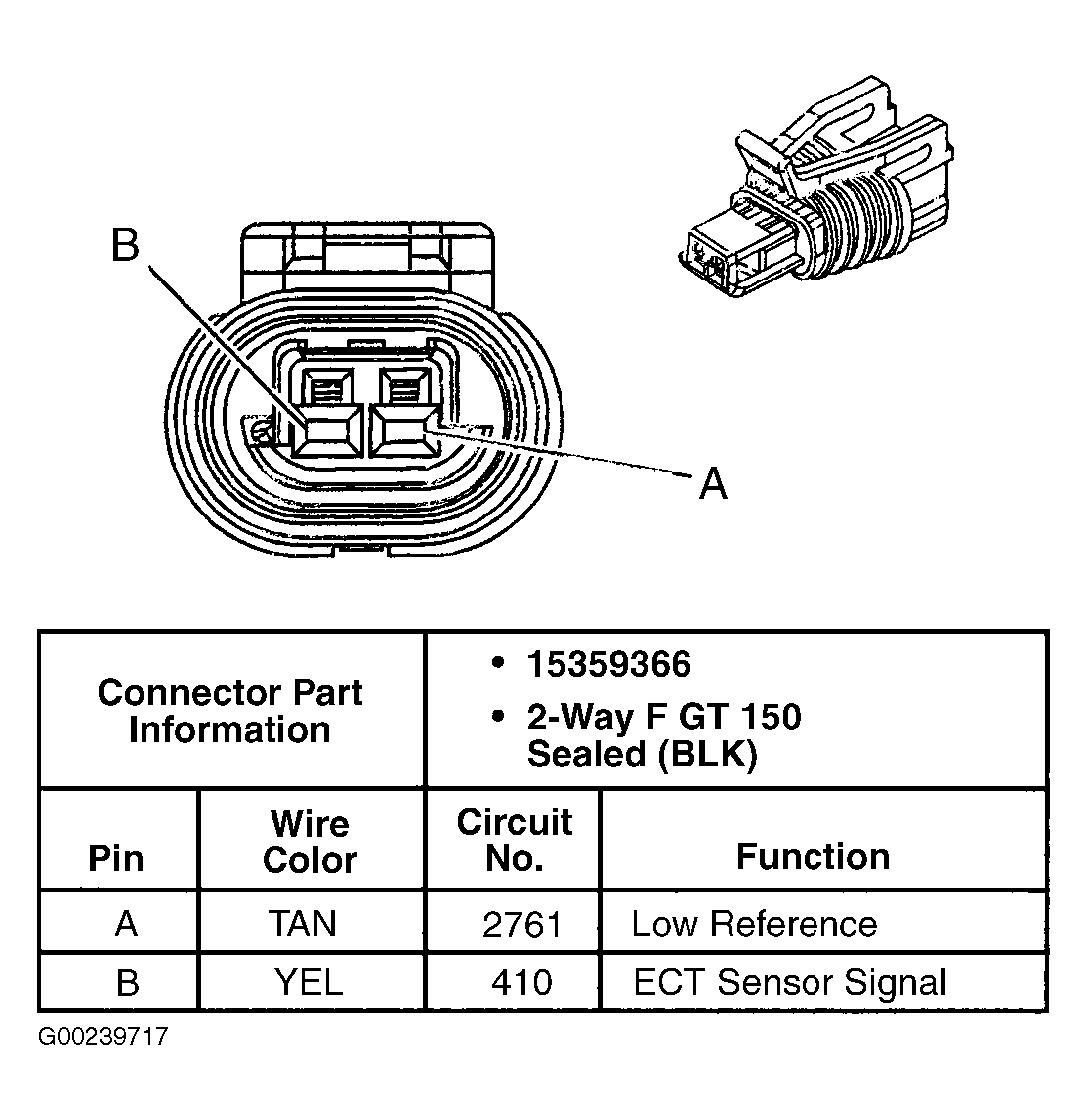

Fig 4: Identifying Engine Coolant Temperature Sensor Connector Terminals

G00239717

Courtesy of GENERAL MOTORS CORP.

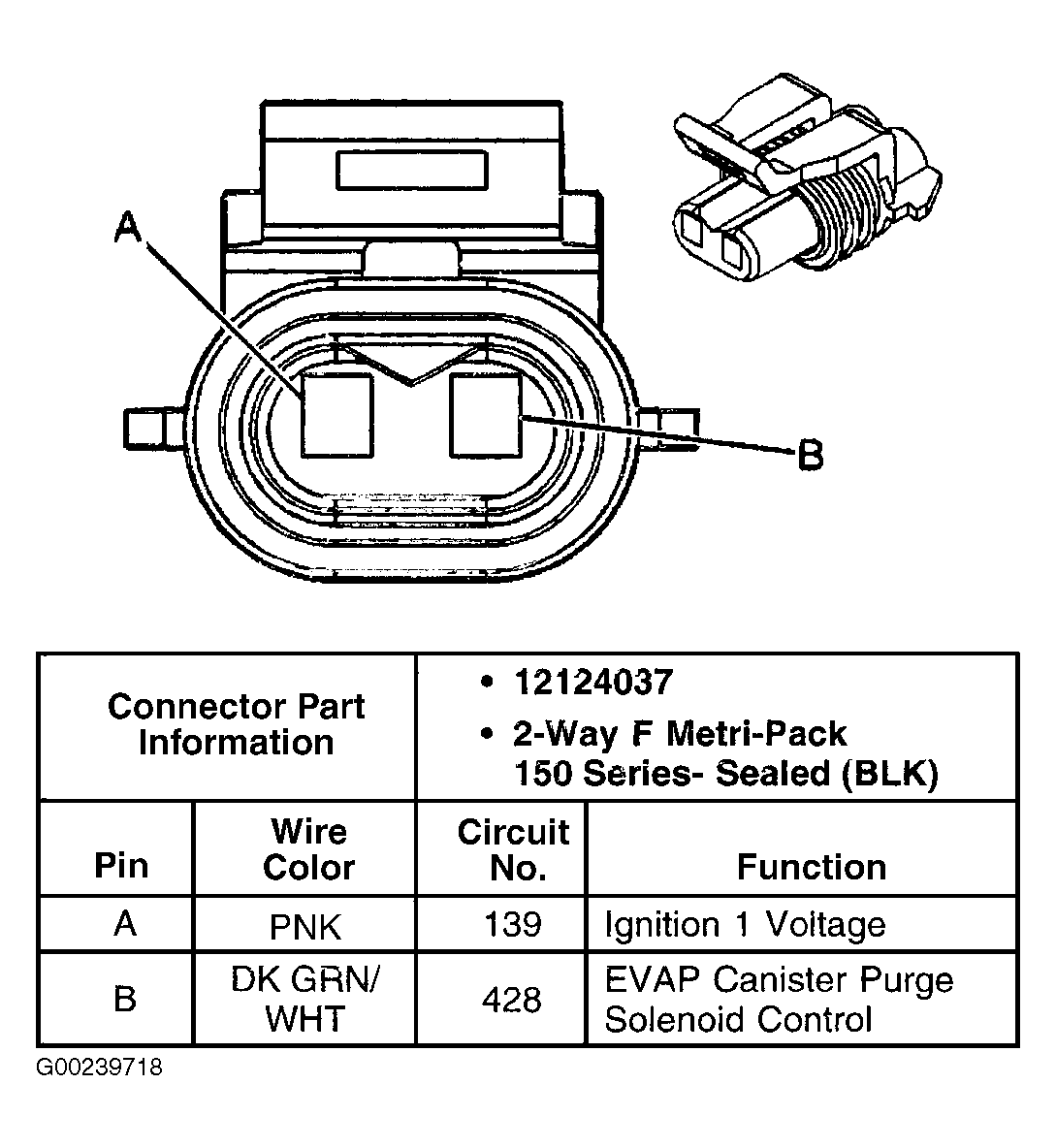

Fig 5: Identifying Evaporative Emission Canister Purge Solenoid Connector Terminals

G00239718

Courtesy of GENERAL MOTORS CORP.

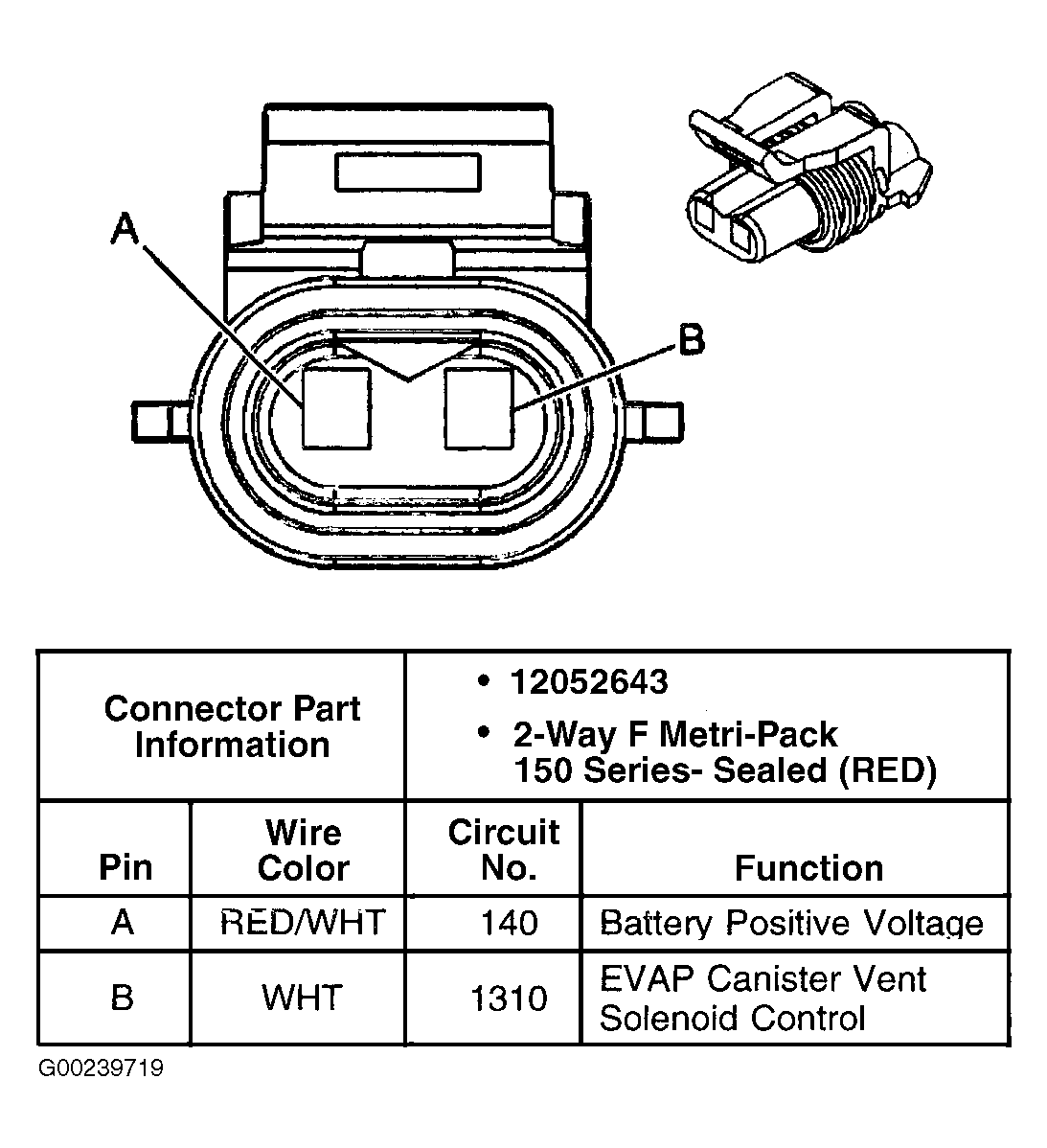

Fig 6: Identifying Evaporative Emission Canister Vent Solenoid Connector Terminals

G00239719

Courtesy of GENERAL MOTORS CORP.

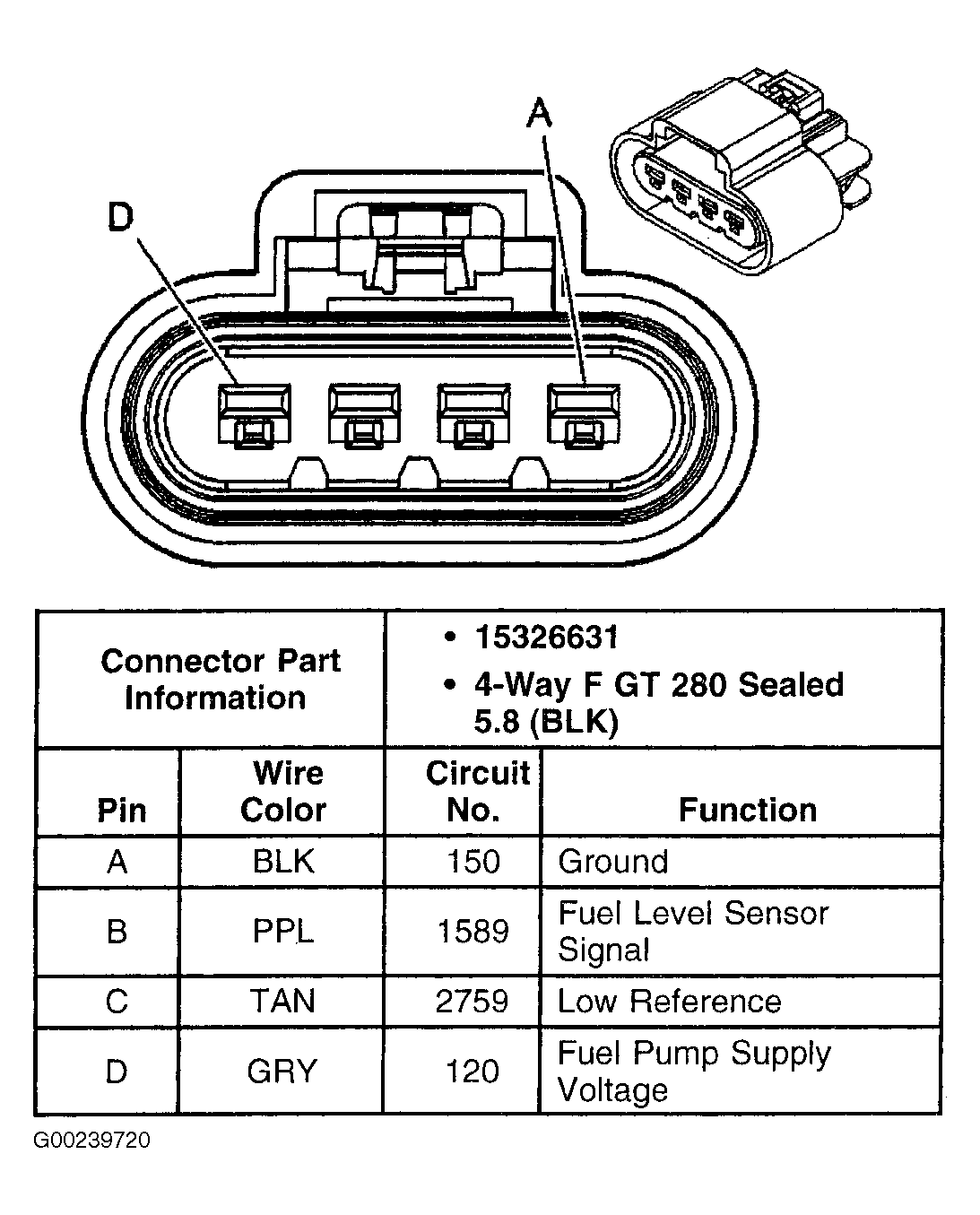

Fig 7: Identifying Fuel Pump & Sender Connector Terminals

G00239720

Courtesy of GENERAL MOTORS CORP.

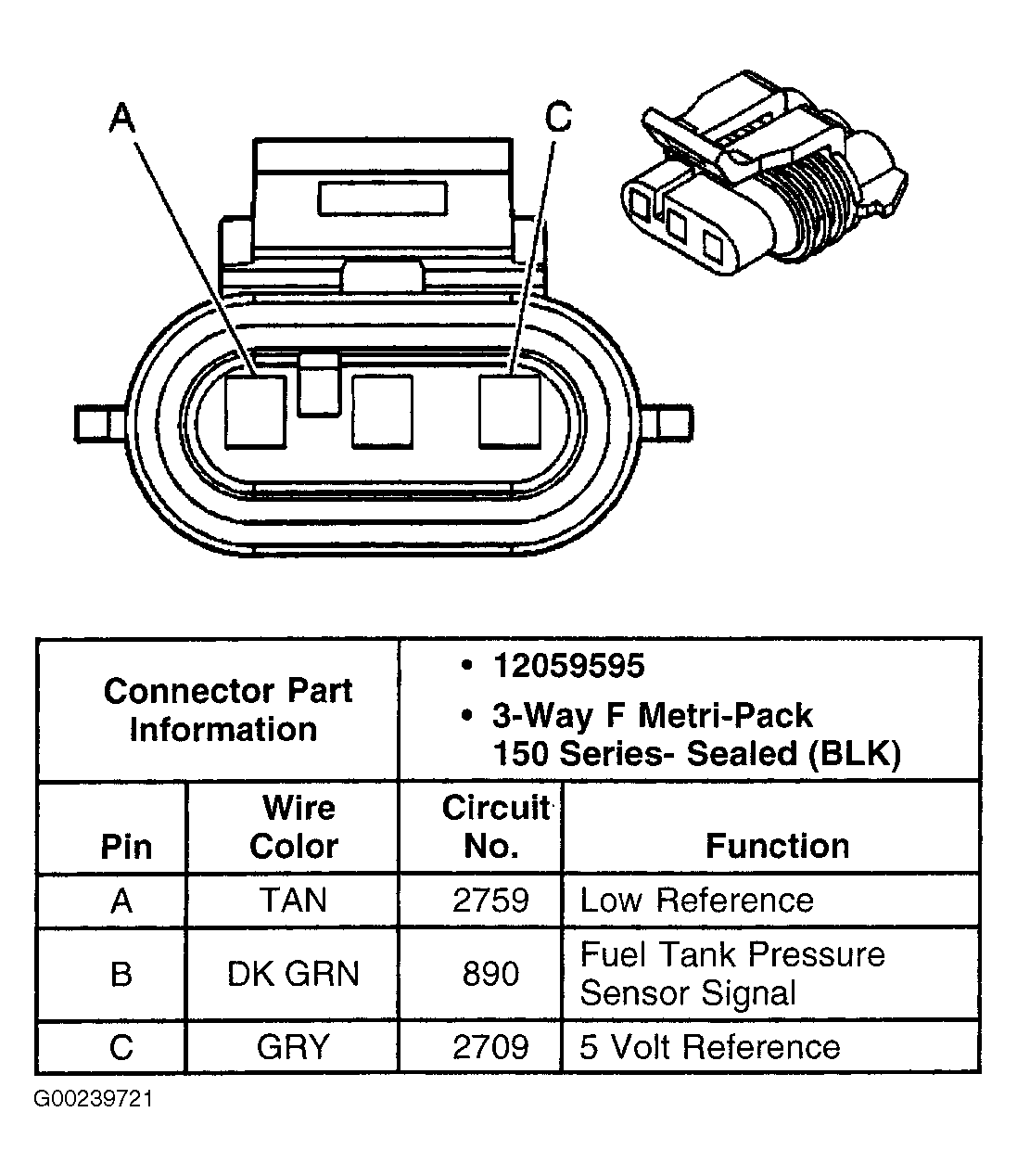

Fig 8: Identifying Fuel Tank Pressure Sensor Connector Terminals

G00239721

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying Heated Oxygen Sensor Bank 1, Sensor 1 Connector Terminals

G00239722

Courtesy of GENERAL MOTORS CORP.

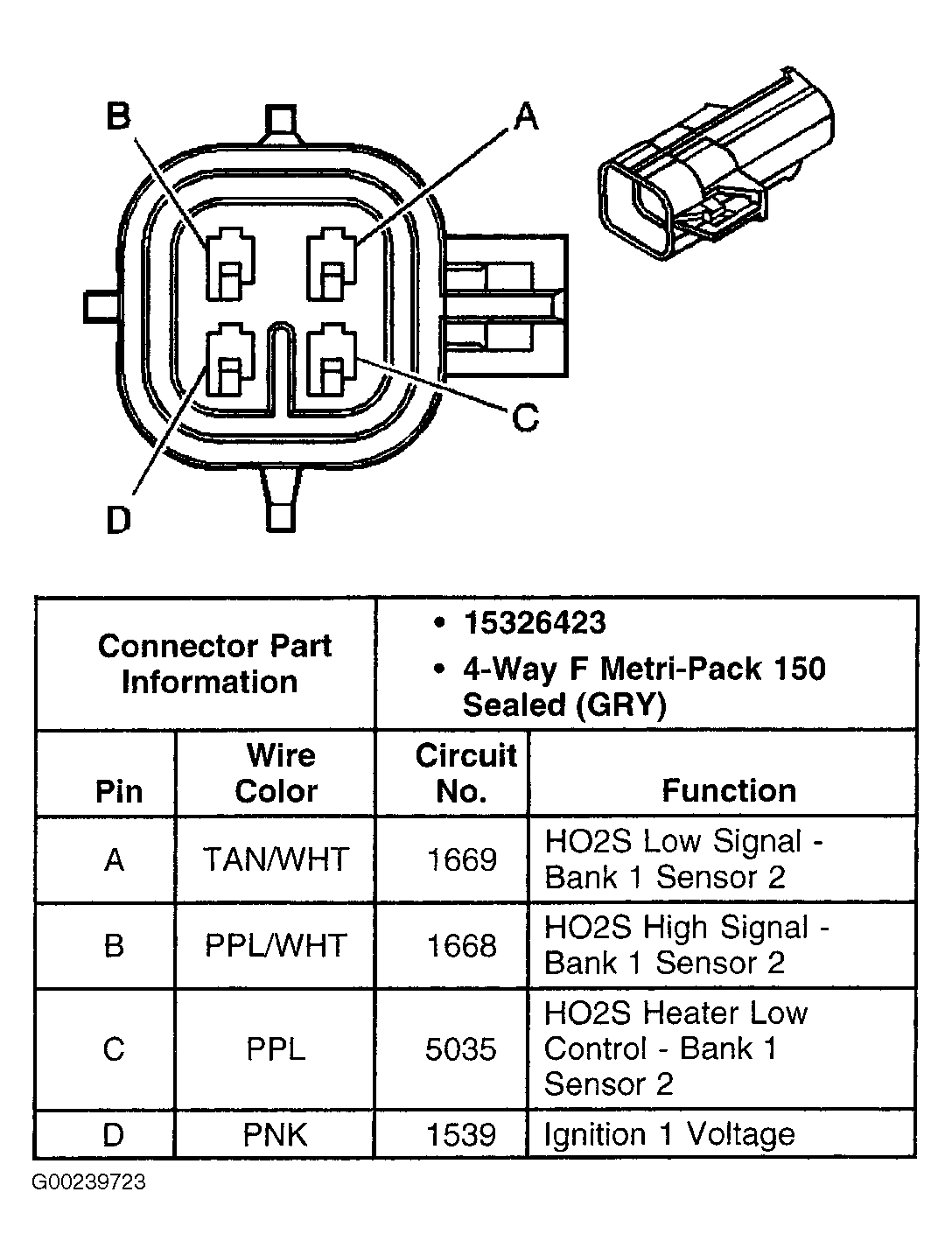

Fig 10: Identifying Heated Oxygen Sensor Bank 1, Sensor 2 Connector Terminals

G00239723

Courtesy of GENERAL MOTORS CORP.

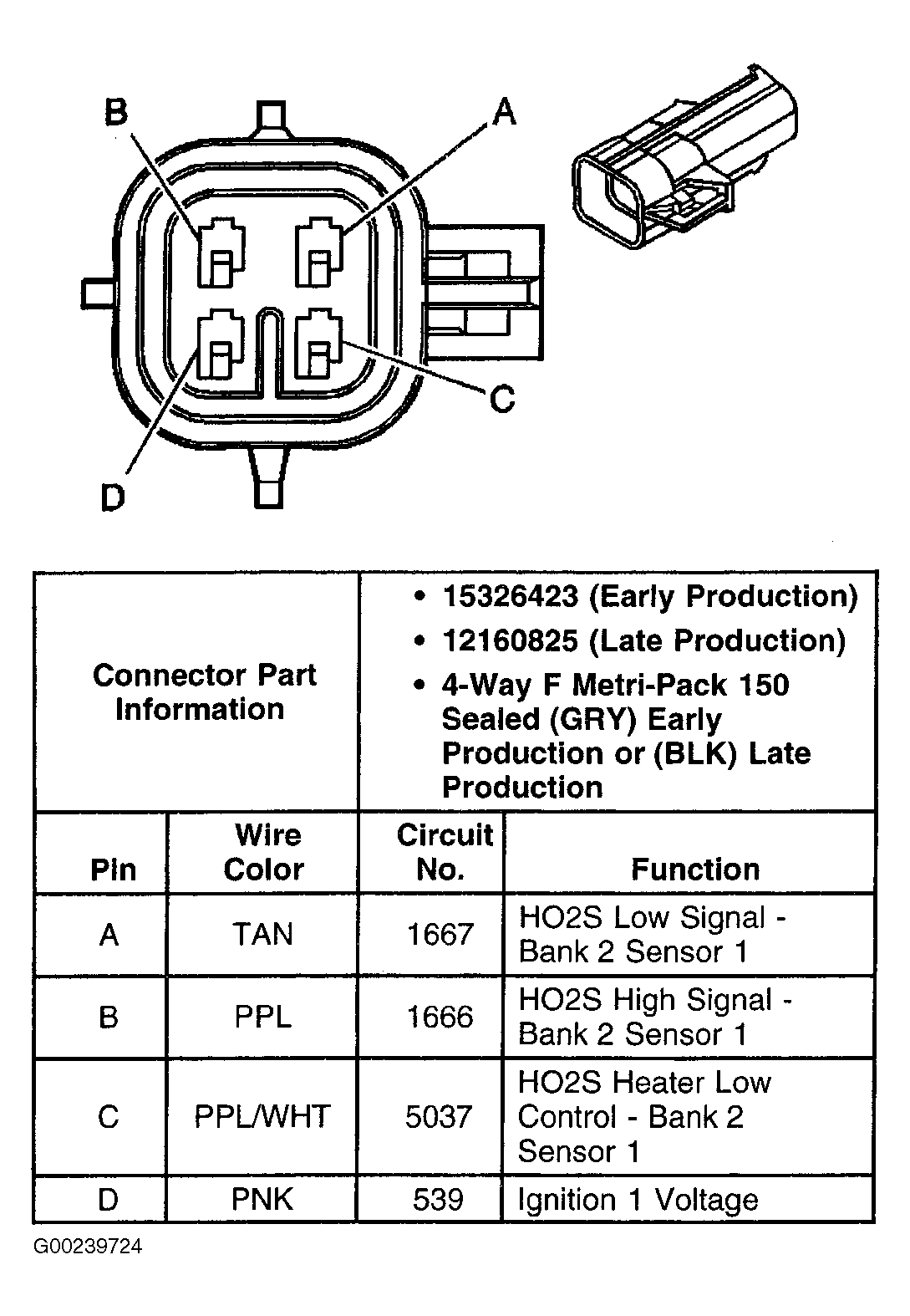

Fig 11: Identifying Heated Oxygen Sensor Bank 2, Sensor 1 Connector Terminals

G00239724

Courtesy of GENERAL MOTORS CORP.

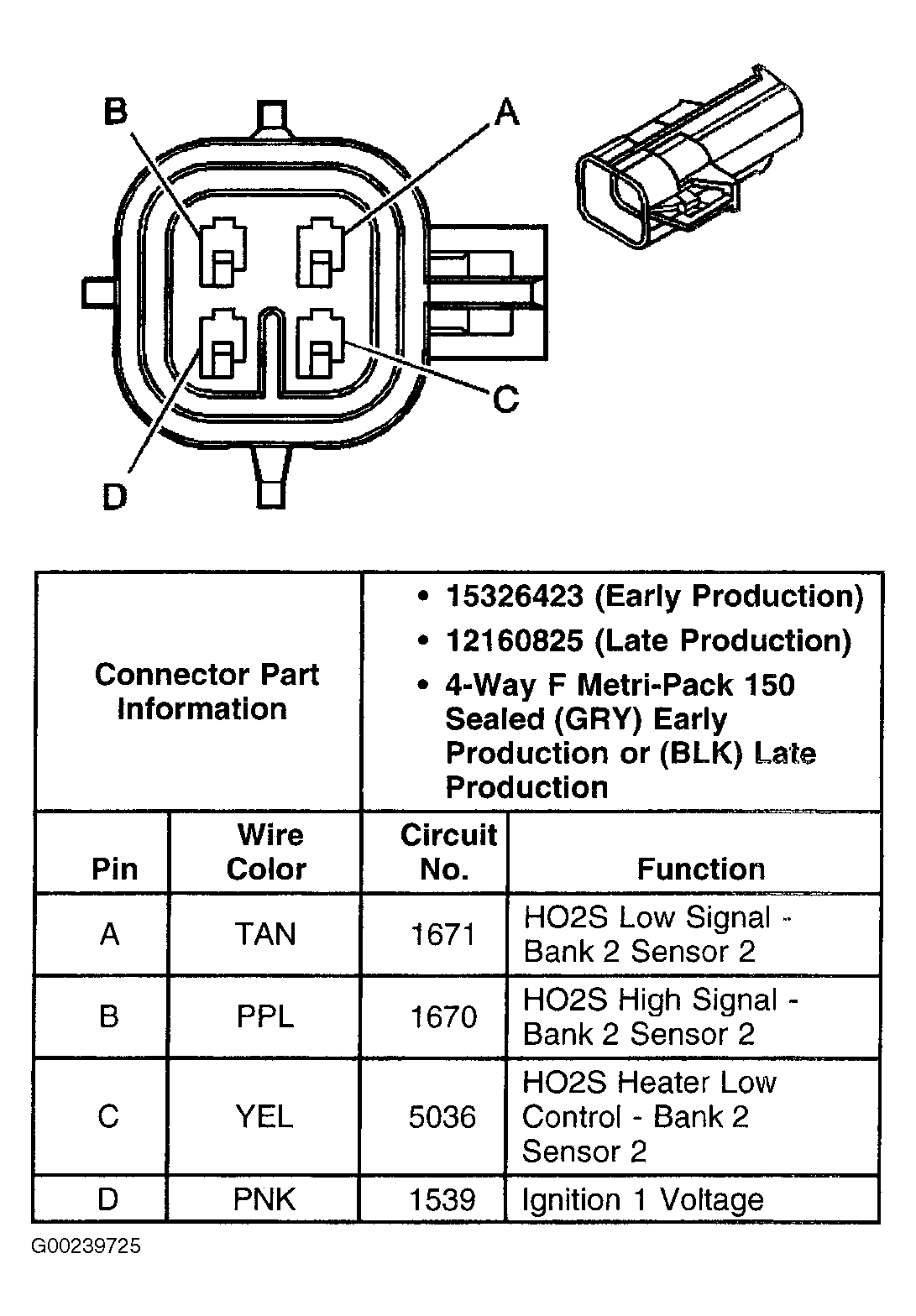

Fig 12: Identifying Heated Oxygen Sensor Bank 2, Sensor 2

G00239725

Courtesy of GENERAL MOTORS CORP.

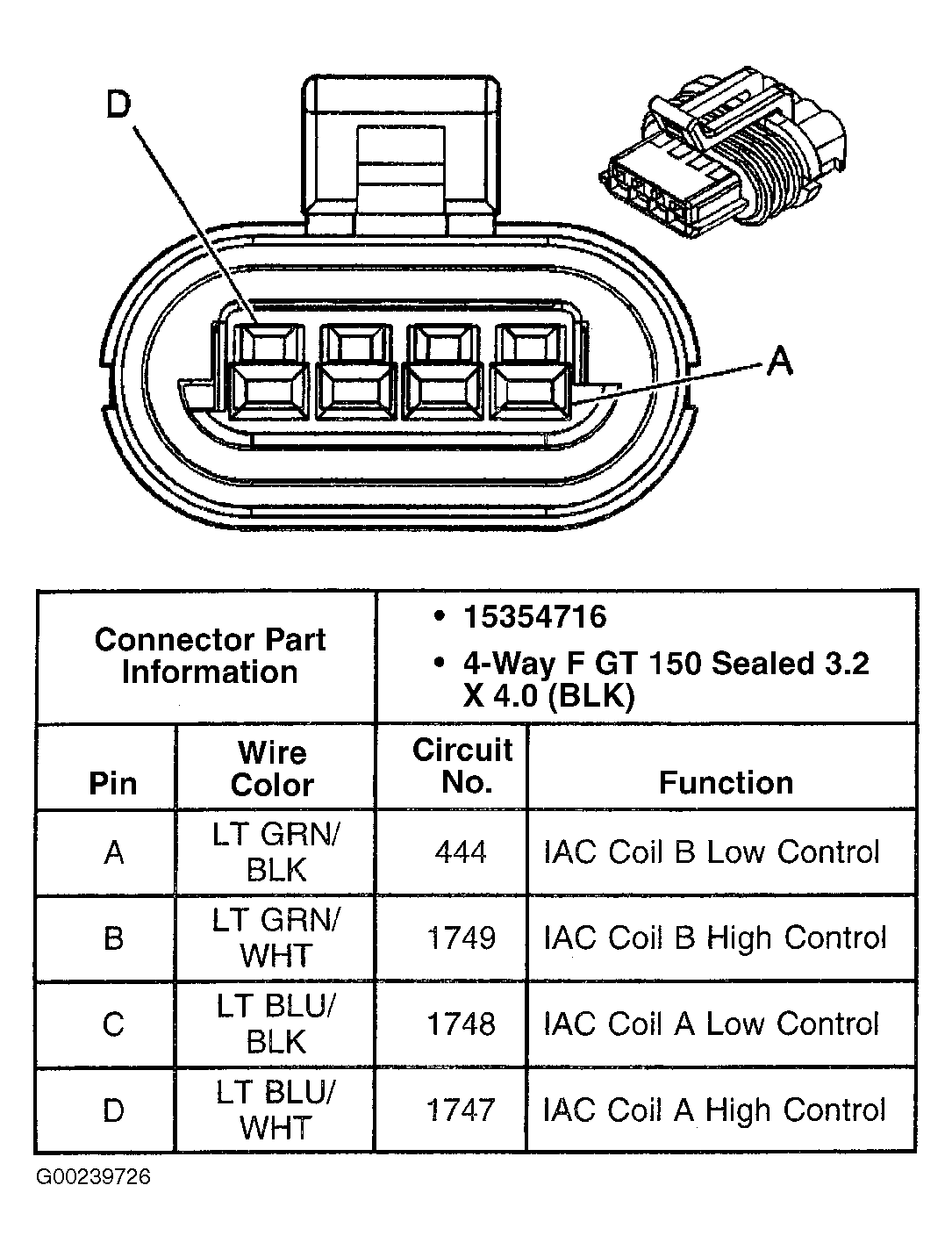

Fig 13: Identifying Idle Air Control Valve Connector Terminals

G00239726

Courtesy of GENERAL MOTORS CORP.

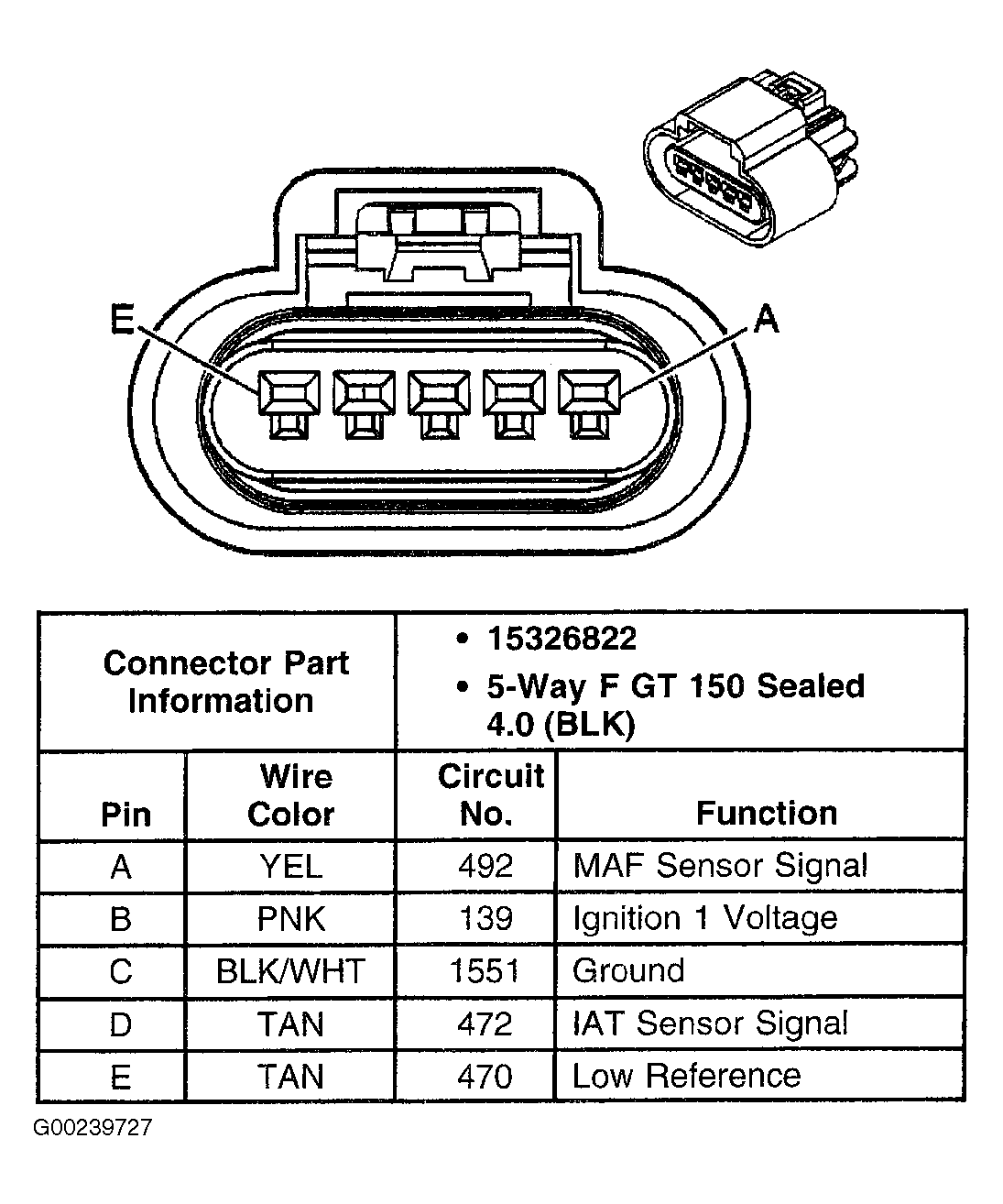

Fig 14: Identifying Intake Air Temperature/Mass Air Flow Sensor Connector Terminals

G00239727

Courtesy of GENERAL MOTORS CORP.

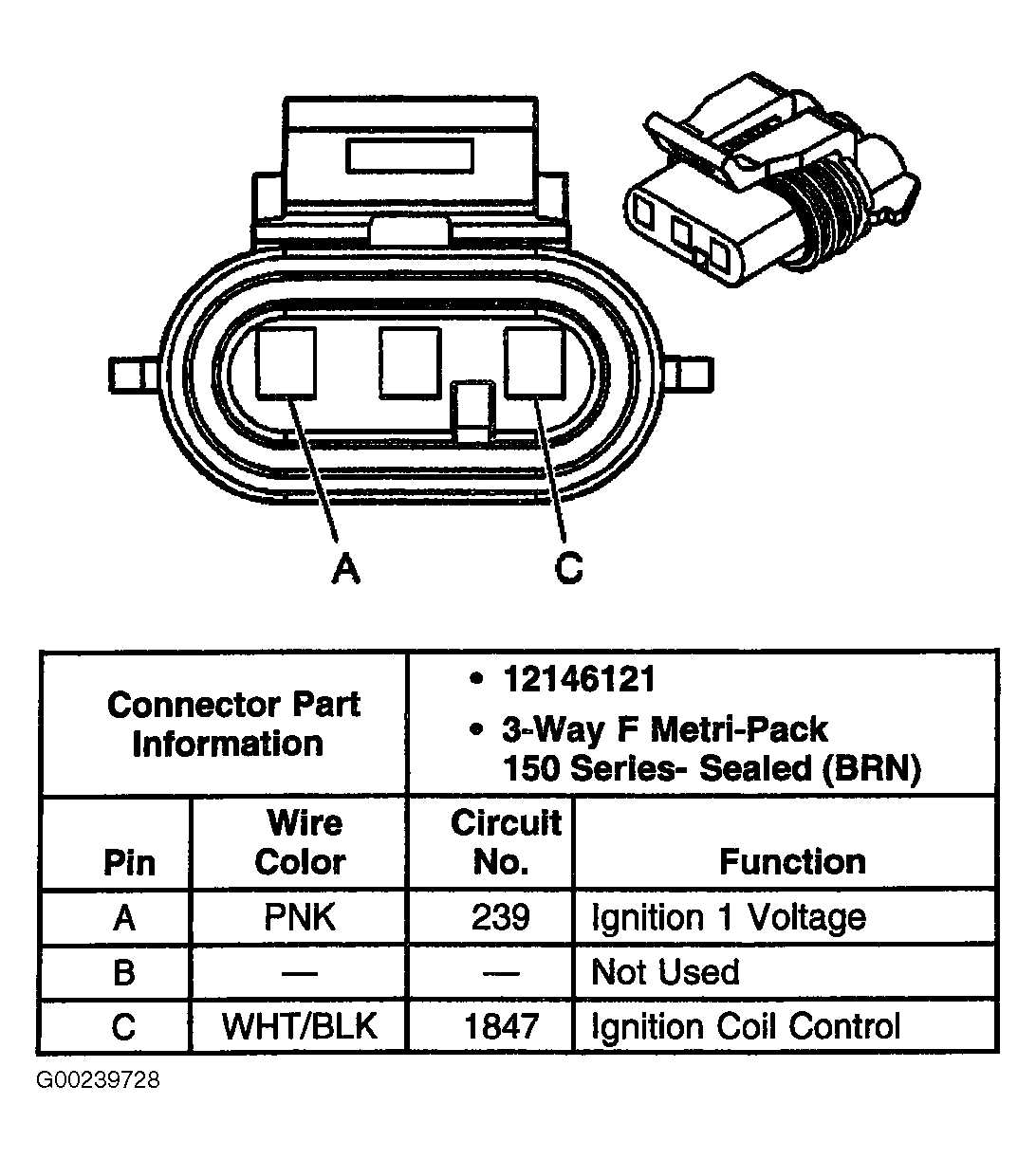

Fig 15: Identifying Ignition Coil Connector Terminals

G00239728

Courtesy of GENERAL MOTORS CORP.

Fig 16: Identifying Ignition Control Module Connector Terminals

G00239729

Courtesy of GENERAL MOTORS CORP.

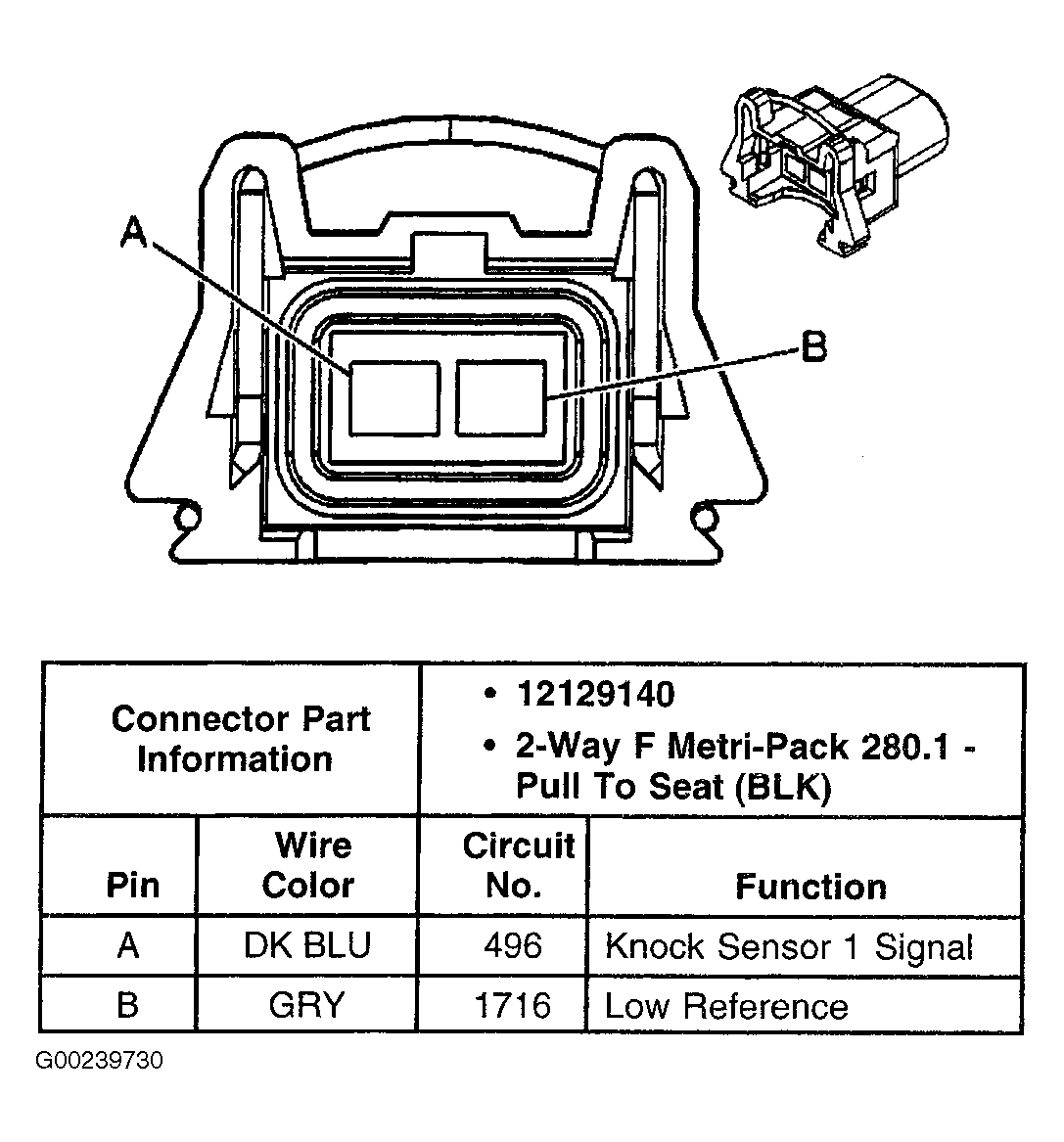

Fig 17: Identifying Knock Sensor Connector Terminals

G00239730

Courtesy of GENERAL MOTORS CORP.

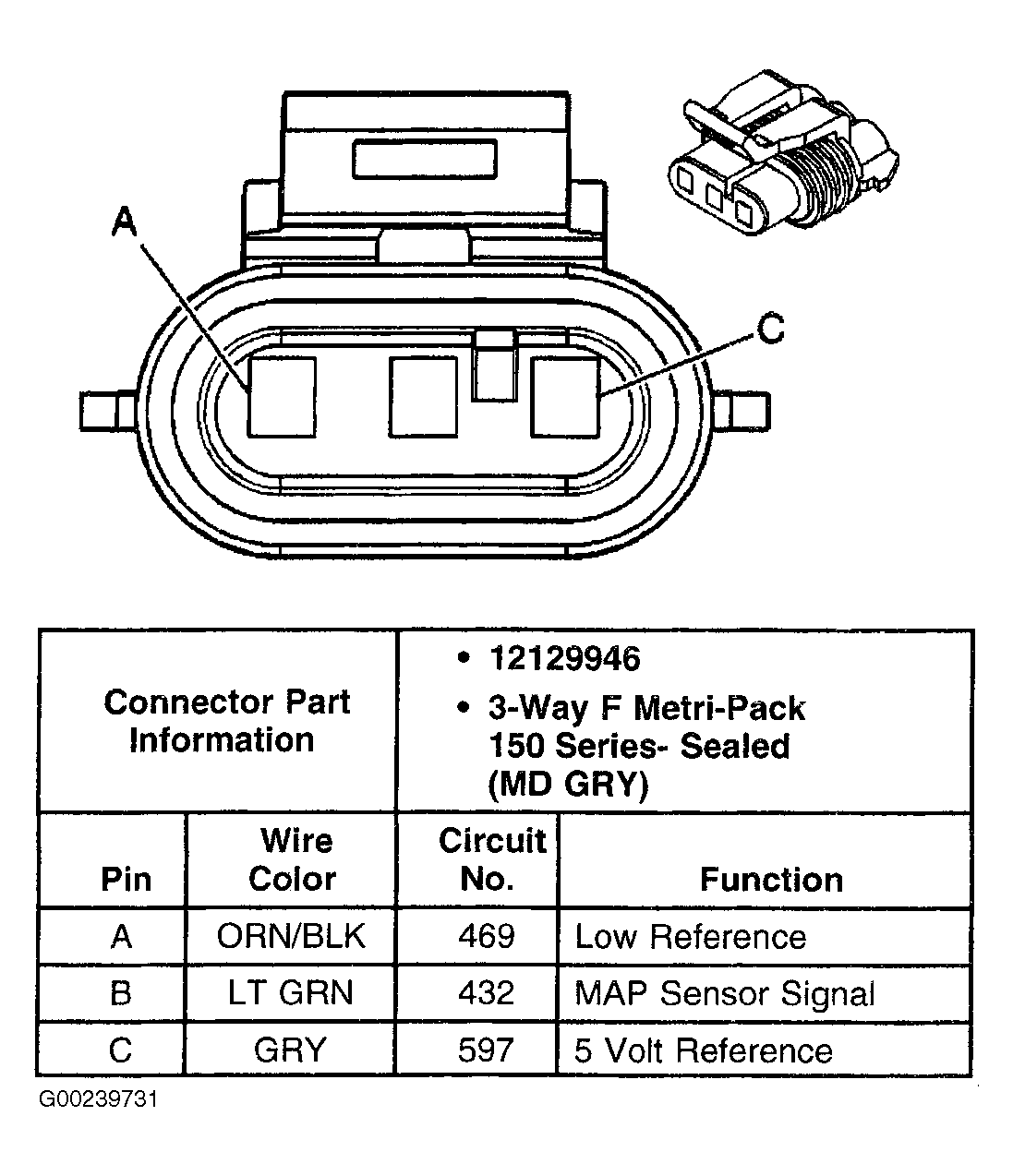

Fig 18: Identifying Manifold Absolute Pressure Sensor Connector Terminals

G00239731

Courtesy of GENERAL MOTORS CORP.

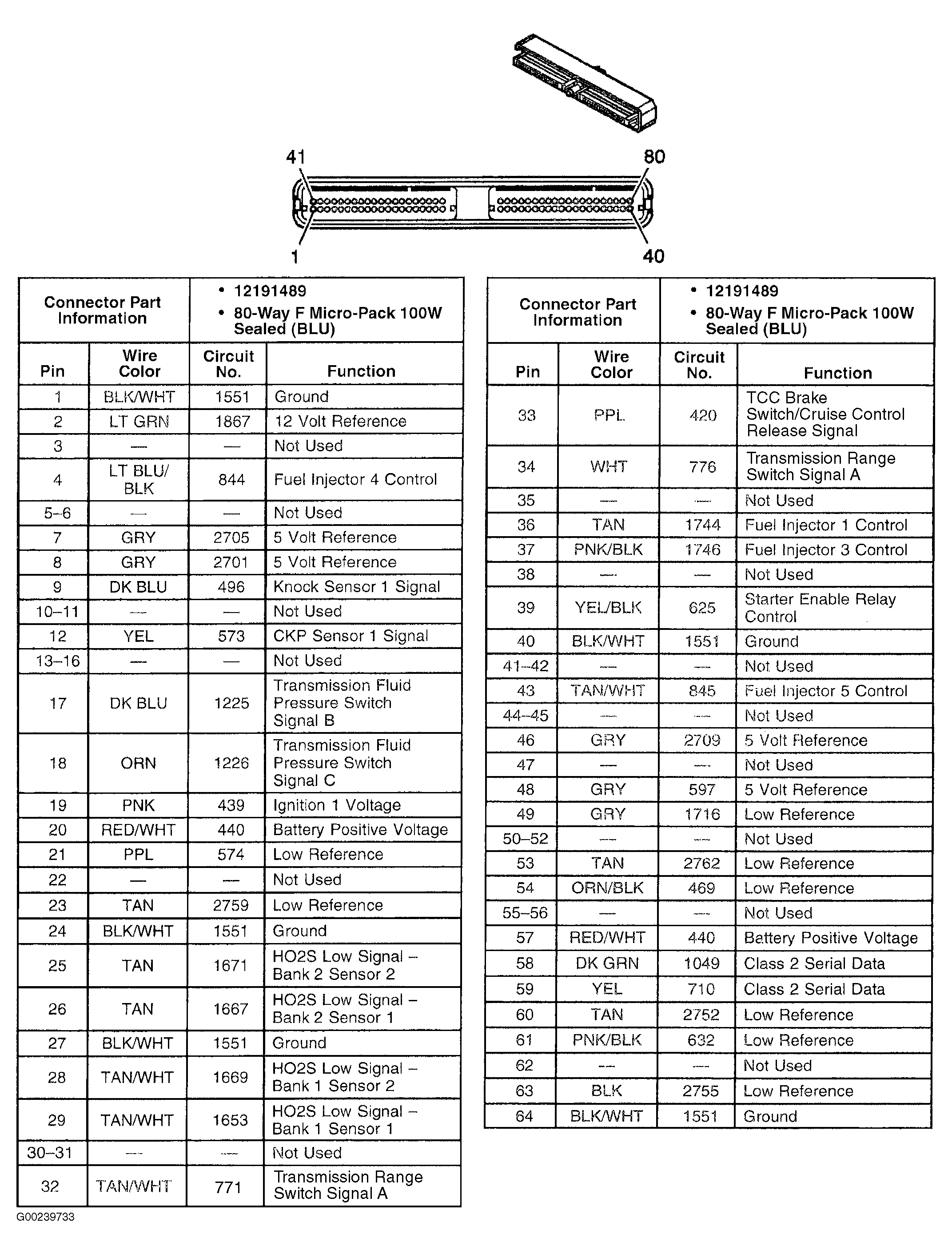

Fig 19: Identifying PCM C1 Connector Terminals (1 Of 2)

G00239733

Courtesy of GENERAL MOTORS CORP.

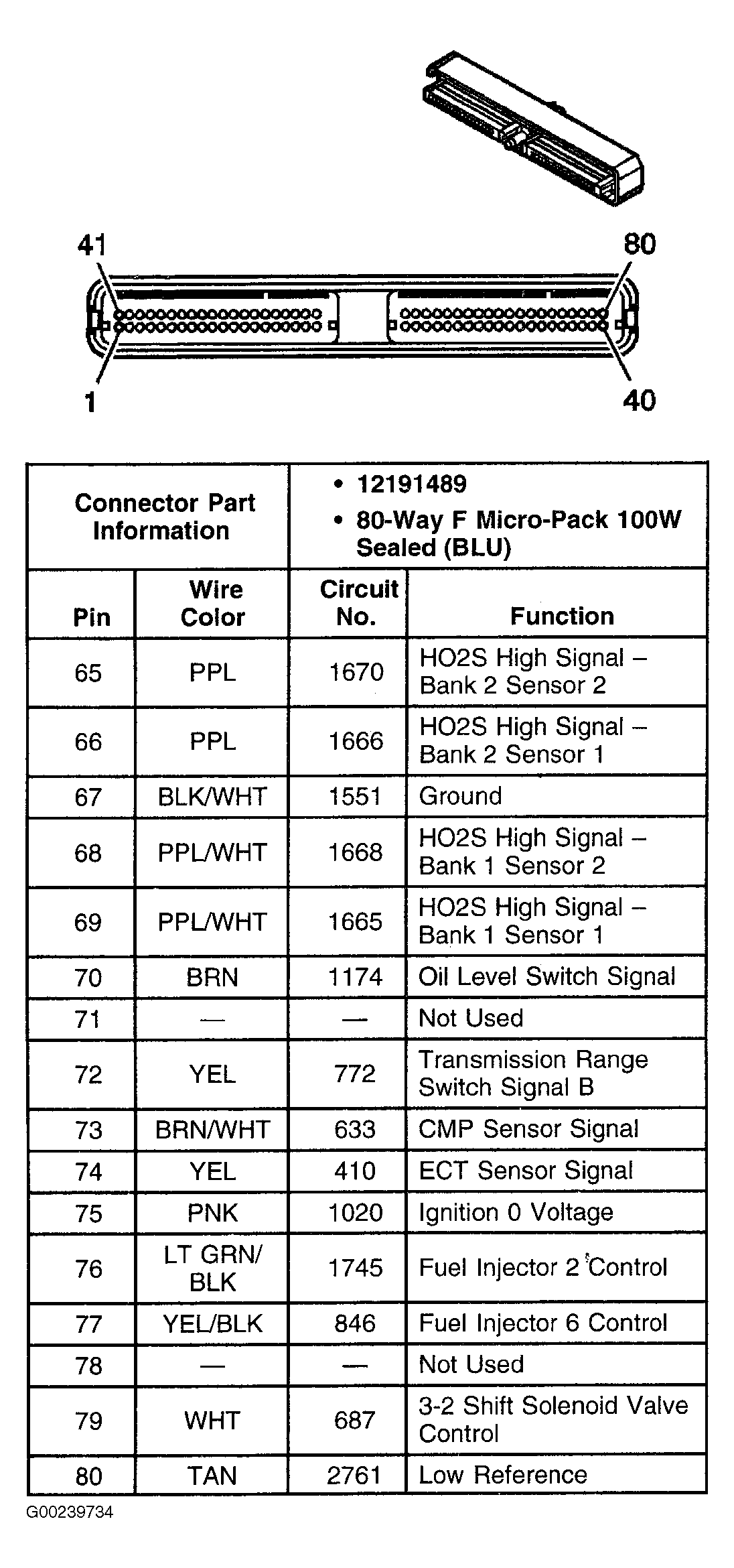

Fig 20: Identifying PCM (C1) Connector Terminals (2 Of 2)

G00239734

Courtesy of GENERAL MOTORS CORP.

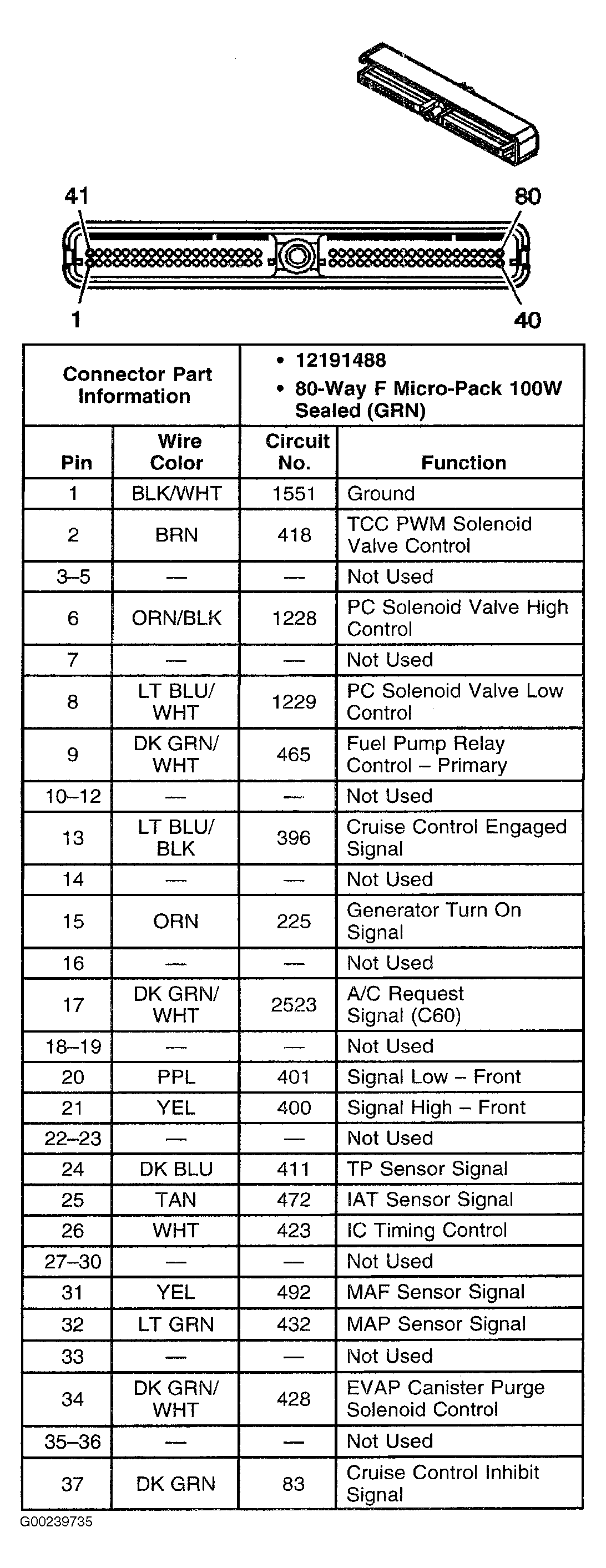

Fig 21: Identifying PCM (C2) Connector Terminals (1 Of 2)

G00239735

Courtesy of GENERAL MOTORS CORP.

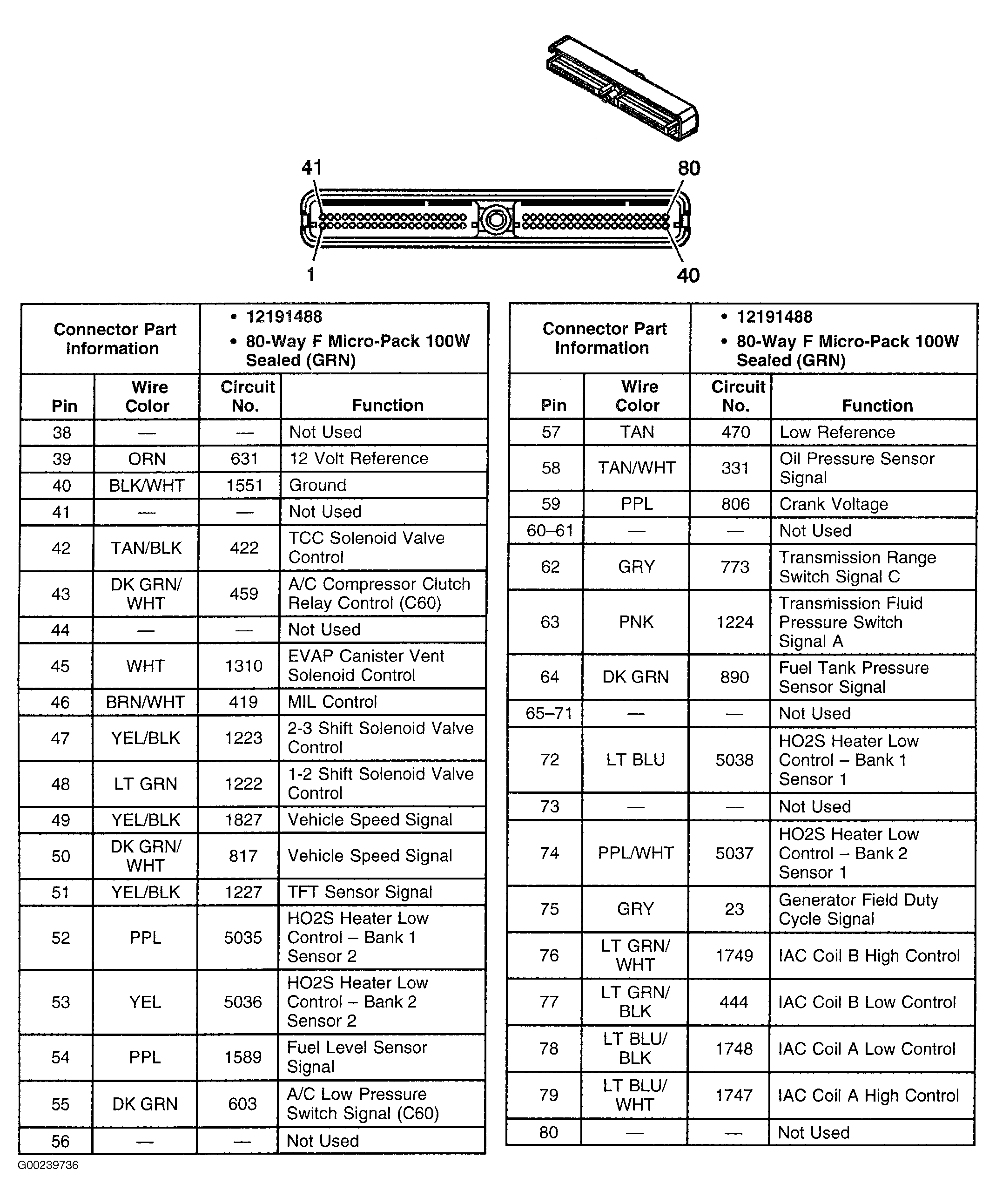

Fig 22: Identifying PCM (C2) Connector Terminals (2 Of 2)

G00239736

Courtesy of GENERAL MOTORS CORP.

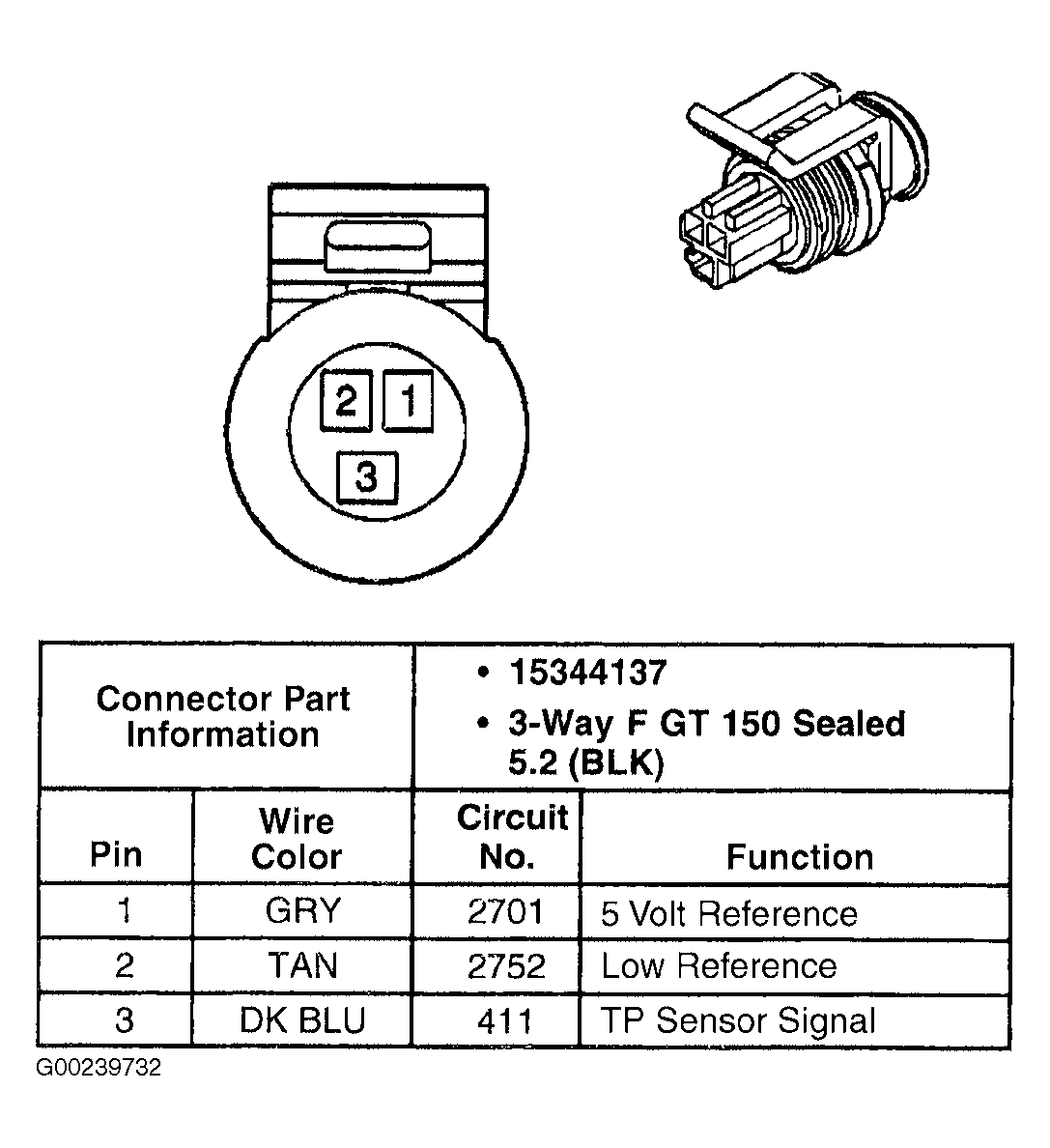

Fig 23: Identifying Throttle Position Sensor Connector Terminals

G00239732

Courtesy of GENERAL MOTORS CORP.
