Automatic Transmission Output Shaft Speed Sensor (OSS) (M99)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

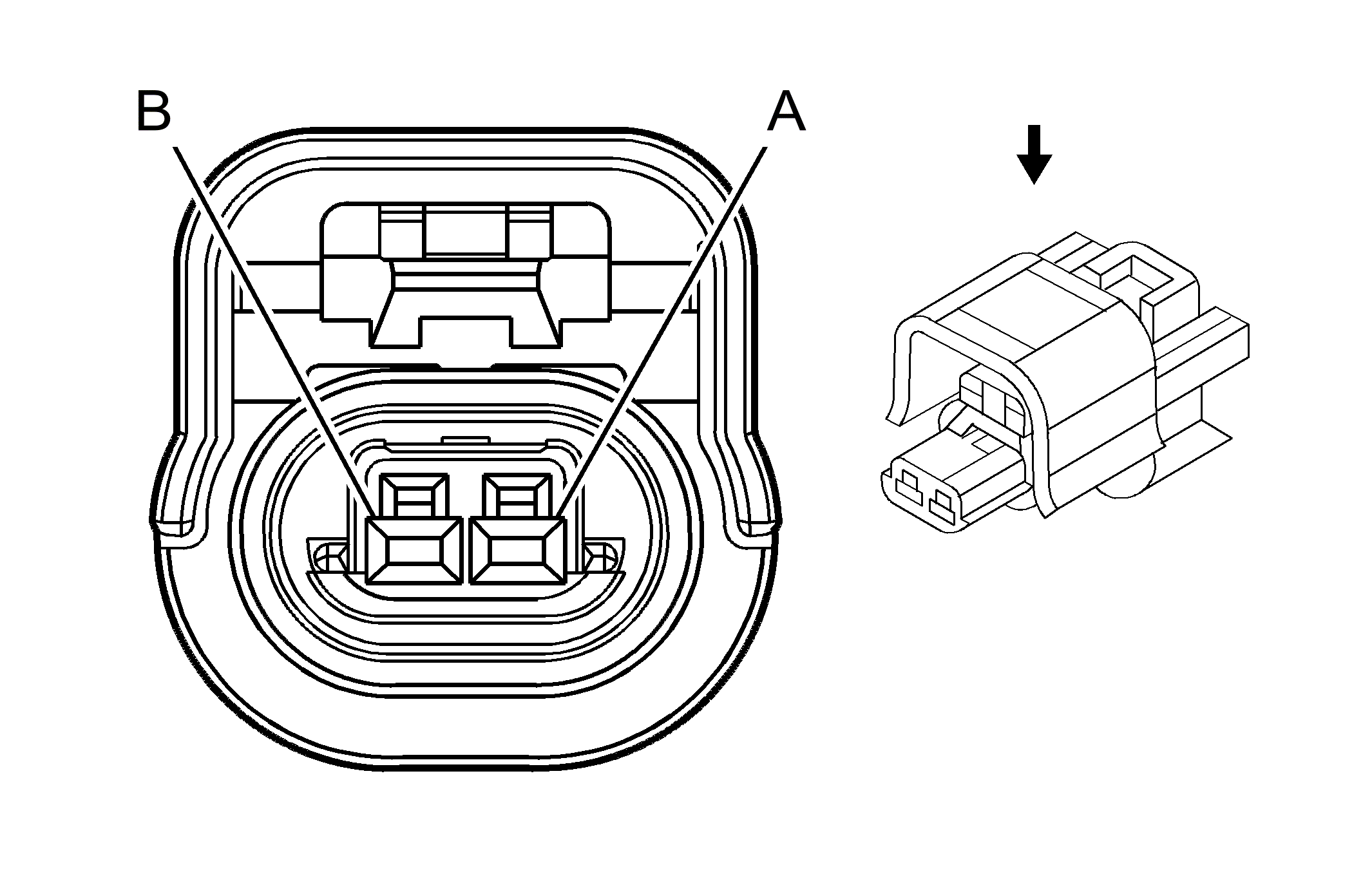

Fig 1: Automatic Transmission Output Shaft Speed Sensor (OSS) (M99) Connector End View
GM1710949Courtesy of GENERAL MOTORS CORP.
Automatic Transmission Output Shaft Speed Sensor (OSS) (M99)

Pin Wire Circuit Function
A 0.5 OG/WH 812 Vehicle Speed Sensor (VSS) Low Signal
B 0.5 PU/WH 821 Vehicle Speed Sensor (VSS) High Signal
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 15320101
  • Service Connector: 88987993
  • Description: 2-Way F GT 150 Sealed (BK)
Terminal Part Information
  • Terminated Lead: 13575433
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 15326267/19
  • Core/Insulation Crimp: E/4
