Accessory Power Outlet - 110V AC (HP2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

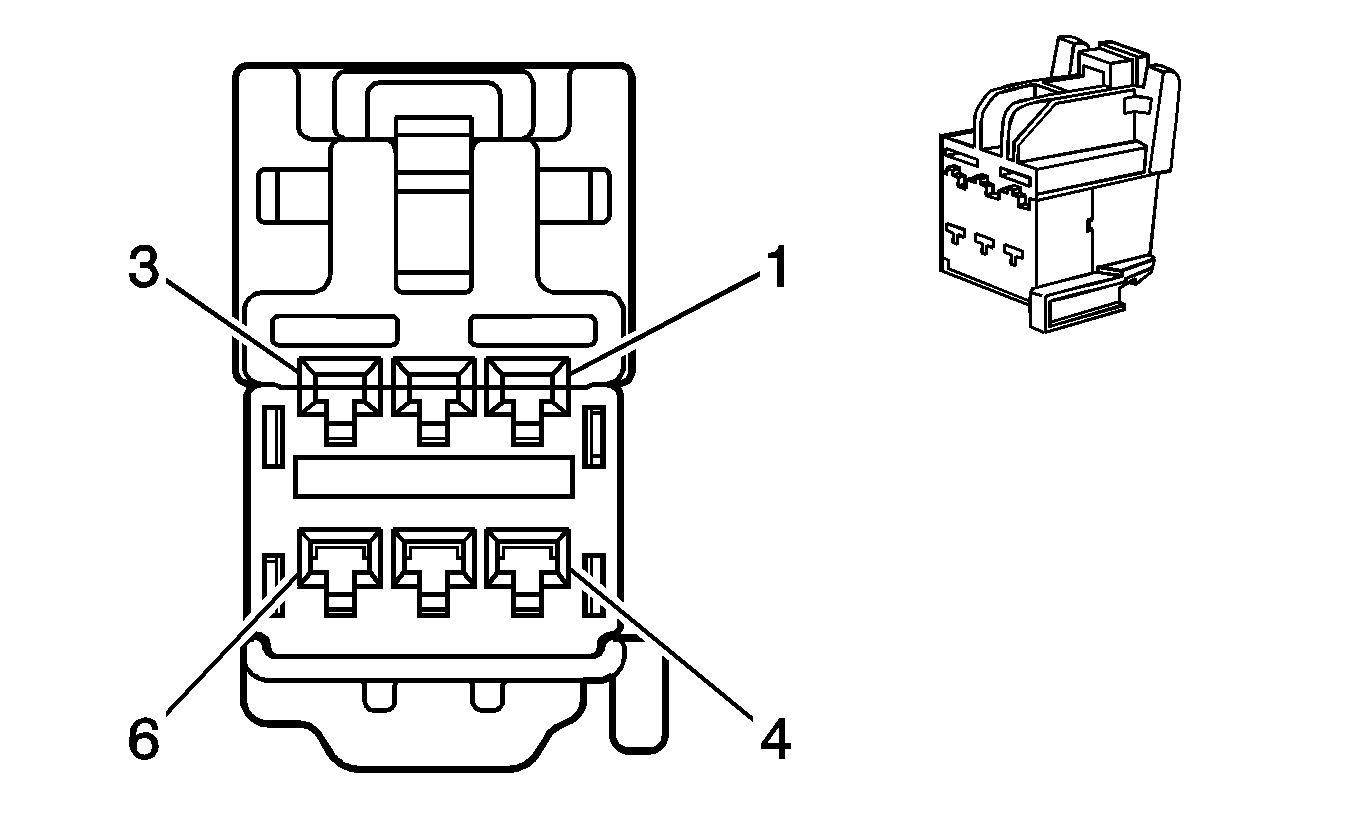

Fig 1: Accessory Power Outlet - 110V AC (HP2) Connector End View
GM1540771Courtesy of GENERAL MOTORS CORP.
Accessory Power Outlet - 110V AC (HP2)

Pin Wire Circuit Function
1 0.8 WH 6807 Plug Switch Signal
2 - - Not Used
3 0.8 BK 5683 110 VAC +
4 0.5 BN 241 Ignition Voltage
5 - - Not Used
6 0.8 D-BU 5685 110 VAC -
Connector Part Information
  • Harness Type: AC Outlet Extension
  • OEM Connector: 6098-4536
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 6-Way F 2.8 Series (OG)
Terminal Part Information
  • Terminal/Tray: Service by Harness - See Part Catalog
  • Core/Insulation Crimp: Not Available
  • Release Tool/Test Probe: Not Available
