Daytime Running Lamp (DRL)- Left (Z75)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

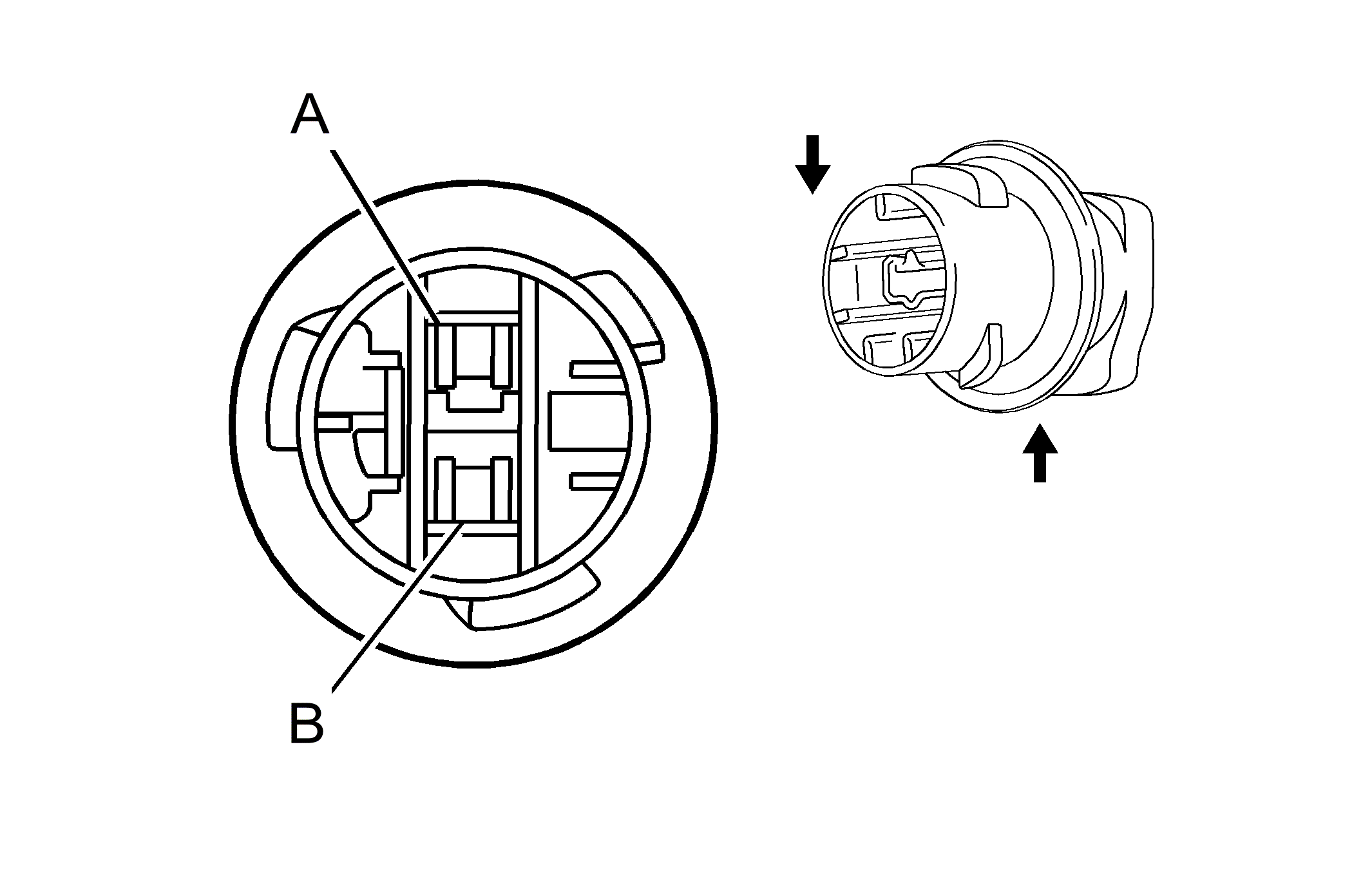

Fig 1: Daytime Running Lamp (DRL)- Left (Z75) Connector End View
GM1540777Courtesy of GENERAL MOTORS CORP.
Daytime Running Lamp (DRL)- Left (Z75)

Pin Wire Circuit Function
A 0.8 L-BU 545 Daytime Running Lamp (DRL) Control
B 0.8 BK 150 Ground
Connector Part Information
  • Harness Type: Left Headlamp
  • OEM Connector: 13513271
  • Service Connector: Service by Harness- See Part Catalog
  • Description: 2-Way F GT 150 Series, Sealed (GY)
Terminal Part Information
  • Terminal/Tray: Service by Harness- See Part Catalog
  • Core/Insulation Crimp: Not Available
  • Release Tool/Test Probe: Not Available
