Door Latch - Passenger

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

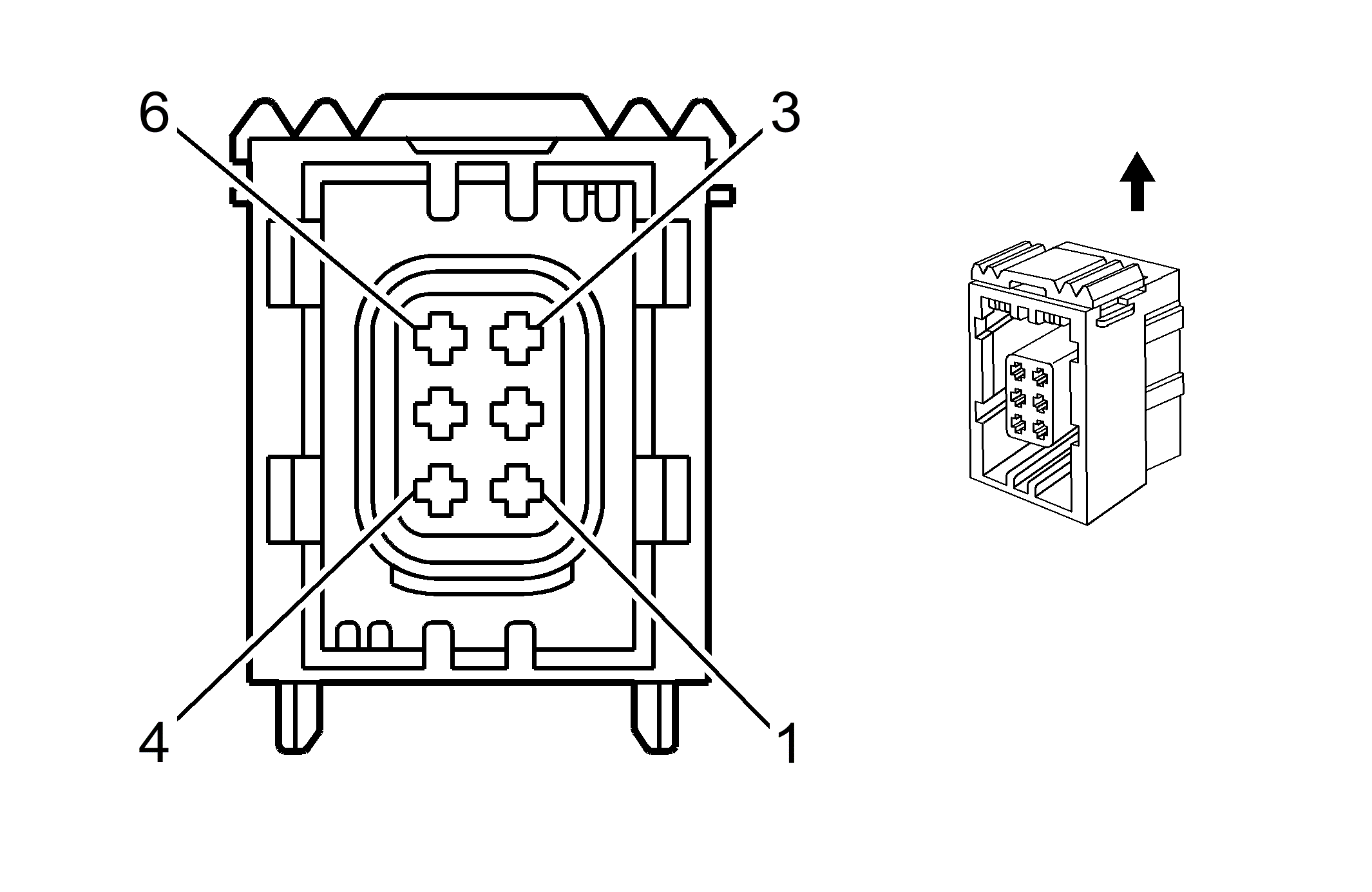

Fig 1: Door Latch - Passenger Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 TN/WH	746	Right Front Door Ajar Switch Signal
2	-	-	Not Used
3	0.35 YE	5943	Low Reference
4	-	-	Not Used
5	0.5 GY/BK	1663	Passenger Door Lock Actuator Unlock Control
6	0.5 TN	5946	Passenger Door Lock Motor Common

Connector Part Information

Harness Type: Passenger Door
OEM Connector: 10768369
Service Connector: 88986251
Description: 6-Way F 1.2 Timer Series (BK)

Terminal Part Information

Terminated Lead: Service by Connector Assembly - 88986251
Release Tool: J-38125-560
Diagnostic Test Probe: J-35616-14 (GN)
Terminal/Tray: Pins 1, 3 - 4-969005-1/16
Terminal/Tray: Pins 5, 6 - 964274-2/16
Core/Insulation Crimp: E/1
